Topcon X35 - Auto Section Control

X35 Console
11.10
Wiring Schematics
11.2.8 Auto Section Control

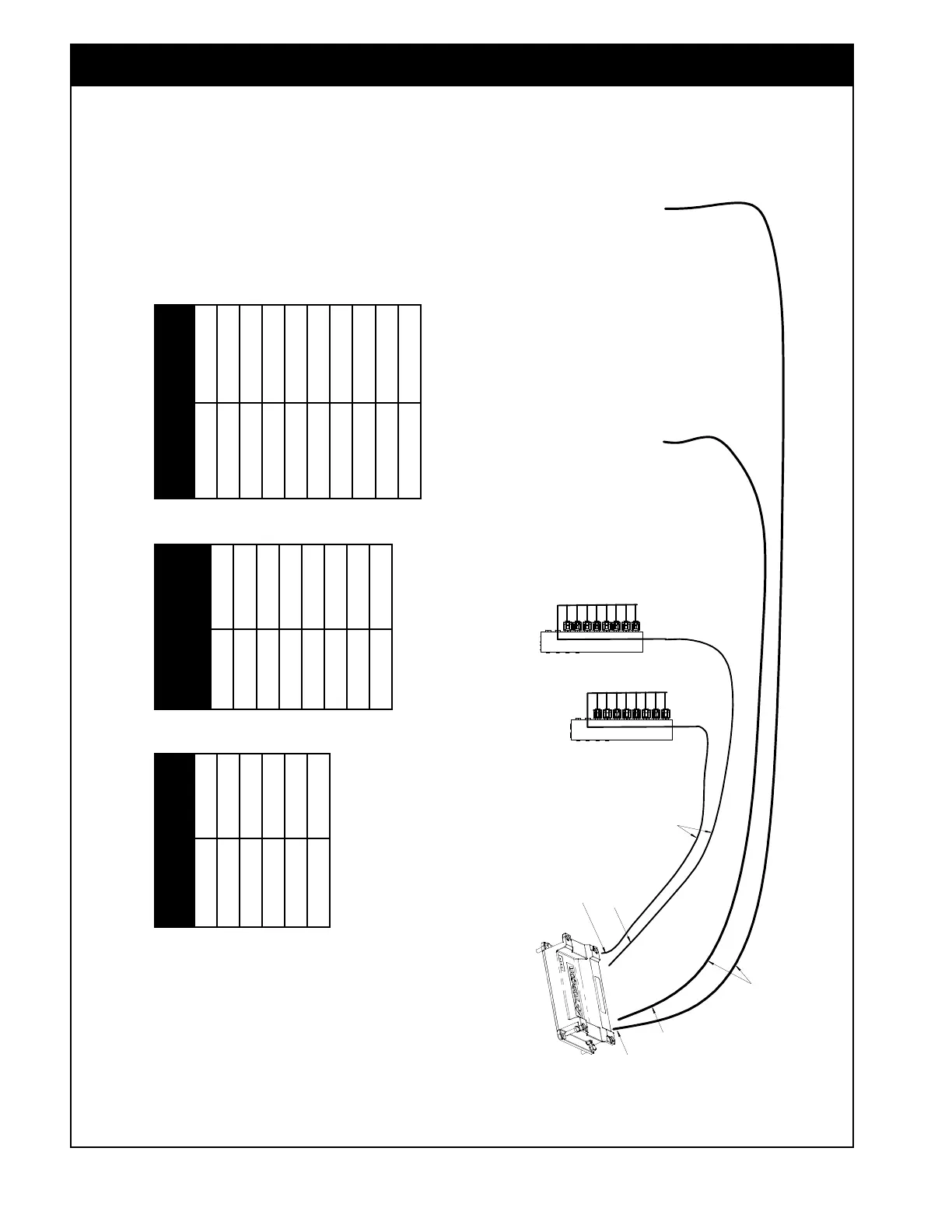

Figure 11.910 - Auto Section Control - 6, 8 or 10 Ports
Manifold Port
label
Harness
Label
a 1 b 3
c 5
d 2 e 4
f 6



























Manifold
Port
label
Harness
Label
a 1 b 5
c 3
d 7 e 2
f 6
g 4 h 8
Manifold Port
label
Harness Label
a 1 b 7
c 3
d 5 e 9
f 2
g 8 h 4
i 6 j 10
6 port 8 port 10 port
