X35 Console Optional Equipment
13.11

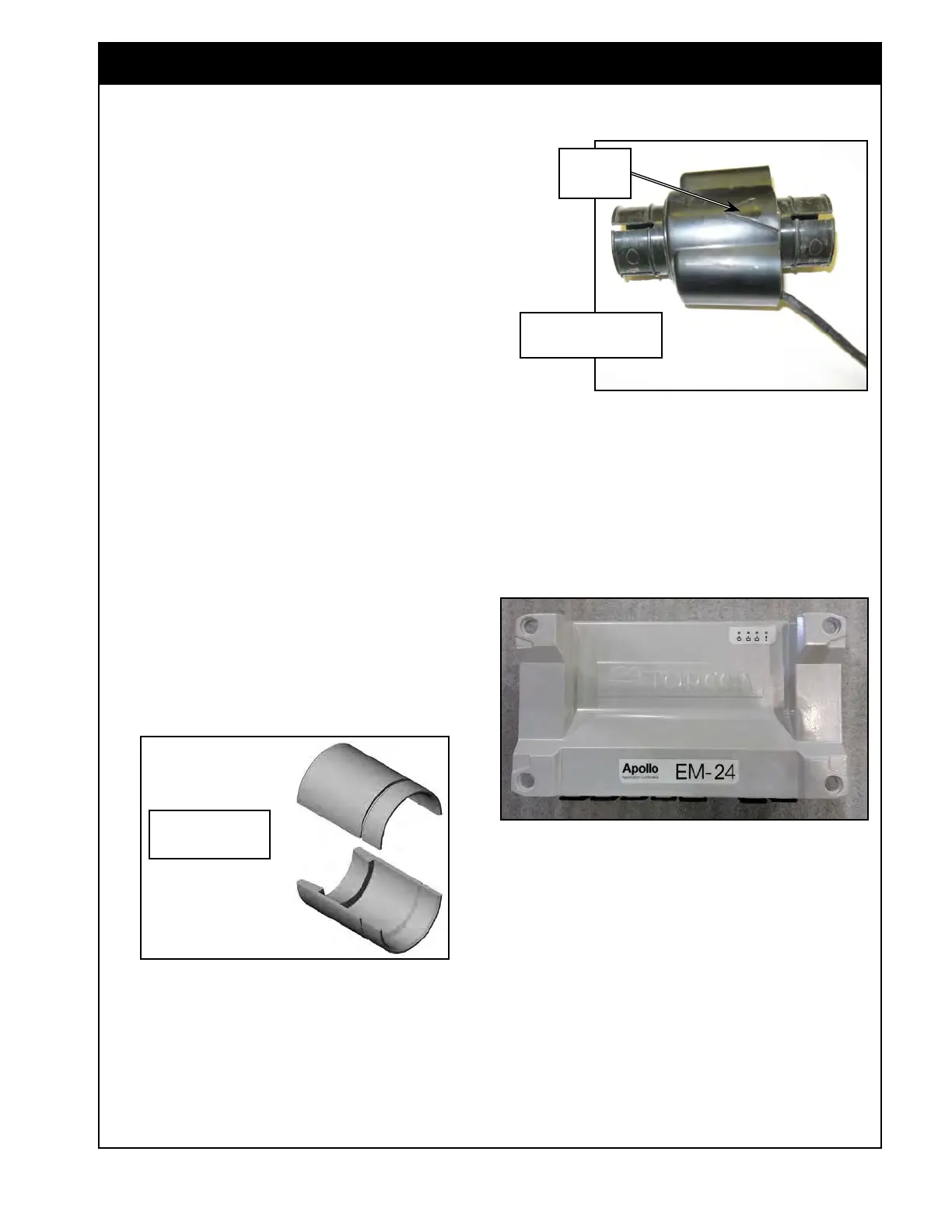

13.3 X35 Blockage Monitoring
Figure 13.13 - BH Sensor (Blocked Head)
Figure 13.12 - 7/8" to 1" Hose Adaptors
Use two adaptors as
shown per side of sensor
(4 per sensor)
Figure 13.14 - EM-24 ECU (#3132-33)
DICKEY-John Style Sensor
(#3133-26-01 for 1" lines and
#3133-27-01 for 1-1/4" lines)
Direction of
product flow
arrow
X35 single run blockage monitor packages are
available for Bourgault tow-behind and leading Air
Seeding systems.
The BH sensors (Figure 13.13) are sized for 1”
hose
or 1-1/4" hose. A 7/8” adapter (Figure
13.12) (4 per sensor) is used to adapt the 1" sensor
to the smaller size hose.
For an 8 port configuration, the single shoot
secondary manifolds (on the tillage unit) are
numbered 1-8 from left to right. The manifolds
for the optional double shoot runs are labelled 9-
16 from right to left.
For 6 and 10 port configurations numbering is
similar.
Connections at the ECU (Figure 13.16) will match
this
numbering.
