Topcon X35 - In-Cab Keypad Harness

X35 ConsoleSystem Components
1.6

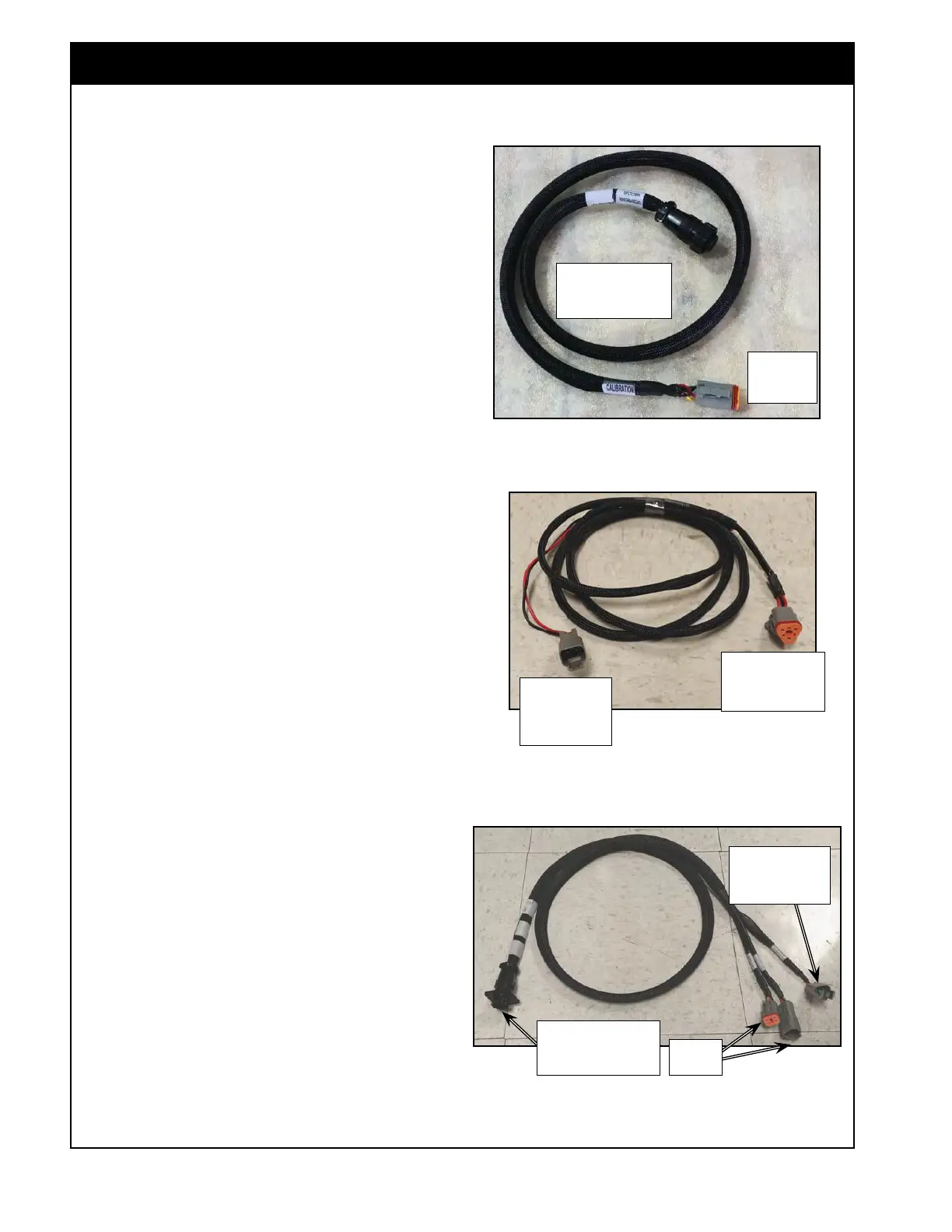

Figure 1.12- Keypad ISOBUS Adapter
Harness (3132-42)
Connects to the round
connector on the in-cab
keypad harness
Connects to keypad
extension power
harness
Tee into
ISOBUS
Figure 1.11 - Keypad Power Extension Harness
(3132-76)
Connects to the
"Switched Power"
Connector on X35
Harness
Connects to Keypad
ISOBUS Adapter
Harness
1.4.4 In-Cab Keypad Harness
In-Cab keypad harness (Figure 1.10) connects the
keypad into the ISOBUS on the X35 harness. It
also uses the keypad power harness (Figure 1.11)
to power up the keypad from the X35 harness.
Figure 1.10- In-Cab Keypad Harness (3132-41)
Connects to
the In-Cab
Keypad
Connects to 9-pin AMP
ISOBUS connection in
the tractor cab
