X35 Monitor Air Seeder Setup
6.49
c. Minimum shaft RPM (7000/8000/9000
Series ONLY) - should be set at 10 rpm.
d. Maximum shaft
RPM (7000/8000/9000
Series ONLY) - should be set at 1000
rpm.
e. Metering Auger
- select the style of
metering auger used in that particular tank.
i. Compared to previous settings,
that are loaded with the factory
implement profile, this setting needs
to be entered by the operator.
ii. Each auger is stamped with an
identification code on the exposed
end of the auger shaft on the right
side of the tank. Check the code on
each shaft if you are not sure, and
make the correct selection.
iii. The optional saddle tank comes
standard with an LO auger and is
factory default.
Important
These are the stamp identifiers found on the
auger shaft.
LO - LOW OUTPUT RIGHT HAND AUGER
(UHMW ONLY)
2X - DOUBLE FLIGHT RIGHT HAND AUGER
1X - SINGLE FLIGHT RIGHT HAND AUGER
HX - HIGH OUTPUT SINGLE FLIGHT RIGHT
HAND AUGER
e. Tank Clutch (6000 Series ONLY) - this
setting needs to be enabled for each tank.
i. This will allow control of the tank clutches
and turn the tanks on/off.

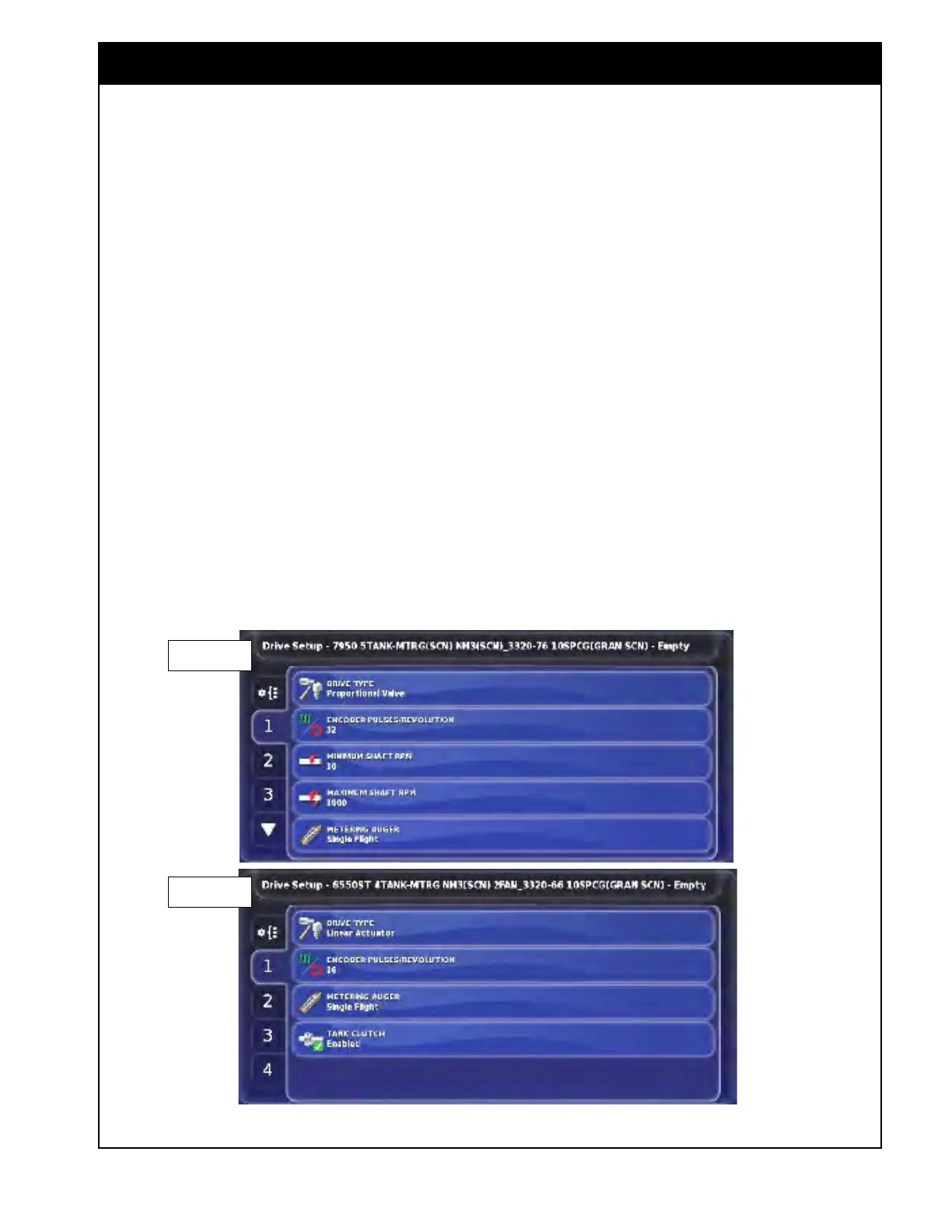

Figure 6.67 - Drive Setup - Specific Tank
6000 Series
7000/8000/9000
Series
