Maintenance2138−1/A2 RT-flex50-D
Wärtsilä Switzerland Ltd
4/ 4
4. Venting of the cylinder lubricating system
A function control must be carried out after every assembly of the lubricating quills,
tightening lubricating oil pipes 12 and pipe brackets 19. The lubricating oil pipes
must be vented at angle union 11 and the lower union nut.
⇒ Select the respective cylinder number on context MANUAL LUBRICATION
ON CYLINDER shown on the operator interface or manually operate 4/2-way
solenoid valve 13.
⇒ Hold the position of the angle union with an open-end spanner while loosening
the lower union nut by about 1 to 2 turns.
⇒ Push with pin 15 (diameter 3.5 mm) on top of sink plunger 14 of the 4/2-way
solenoid valve. This must be repeated until the cylinder lubricating oil is flow-
ing bubble-free out of the loosened connection.
Remark: As described above the lubricating module can also be operated with the
operator interface of the control system. Further information and adjustments
about the lubricating pumps are given in the Operating Manual 7218−1.
Venting valve 18 to lubricating pump 2 may be opened by max. three turns only.
⇒ Hold the position of the angle union with an open-end spanner while tighten-
ing the lower union.
D If all cylinder lubricating oil pipes are vented and afterwards properly tightened
again, actuate the cylinder lubrication module until bubble-free cylinder oil
emerges from all lubricating points in the respective cylinder liner. This visual
inspection of the lubrication process is carried out through the scavenge ports
at piston underside and the piston is therefore at T.D.C. position.

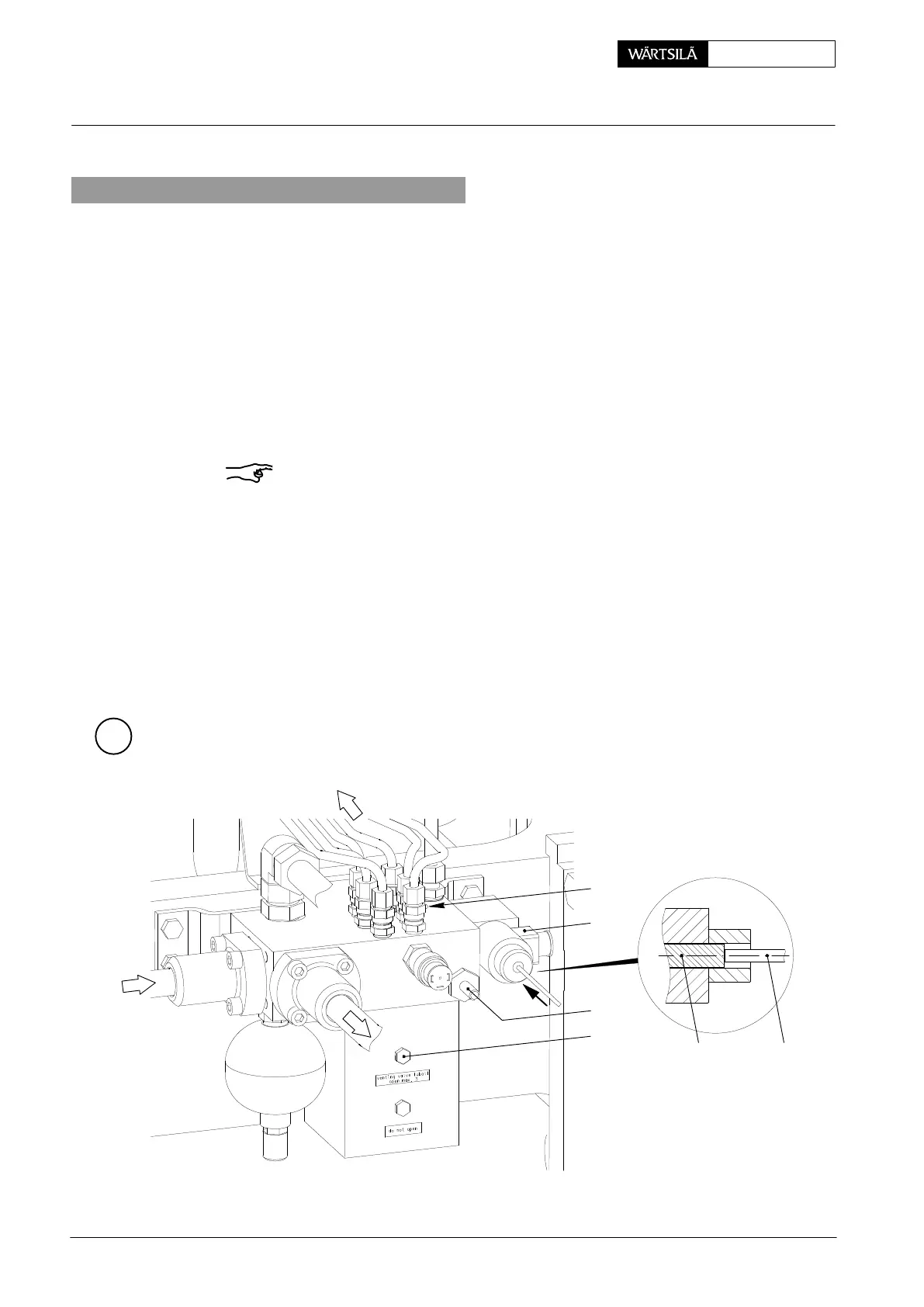

E
018.211/09
13
15
SERVO
OIL
TO LUBRICATING
QUILLS
14
16
18
17
2011
Lubricating Quill with Pulse Jet Lubricatio
