Wartsila RT-flex50-D User Manual

Maintenance
3326−2/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
5/ 7

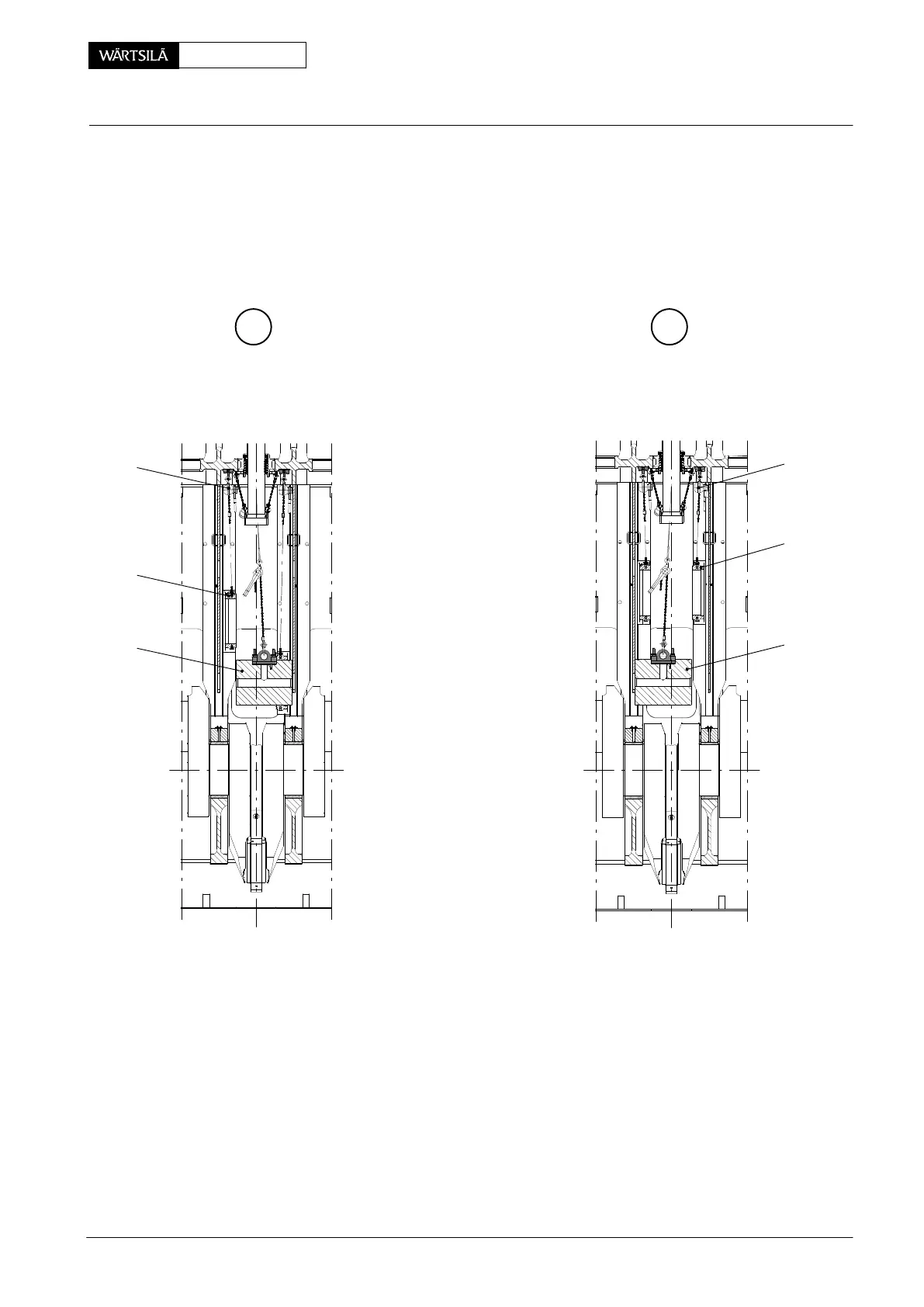

⇒ Clear crosshead pin 2 from guide shoe ’free end’ 5 towards driving end and lift
off the loose guide shoe (Fig. ’F’).
⇒ Clear crosshead pin 2 from guide shoe ’driving end’ 5 towards free end and lift
off the loose guide shoe (Fig. ’G’).
F G
DRIVING END
H
4
5
2
H
3
5
2
013.243/05 013.244/05
FREE END
2010
Removal and Fitting of a Crosshead Pin
