Wartsila RT-flex50-D User Manual

Maintenance5552−4/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
2/ 3

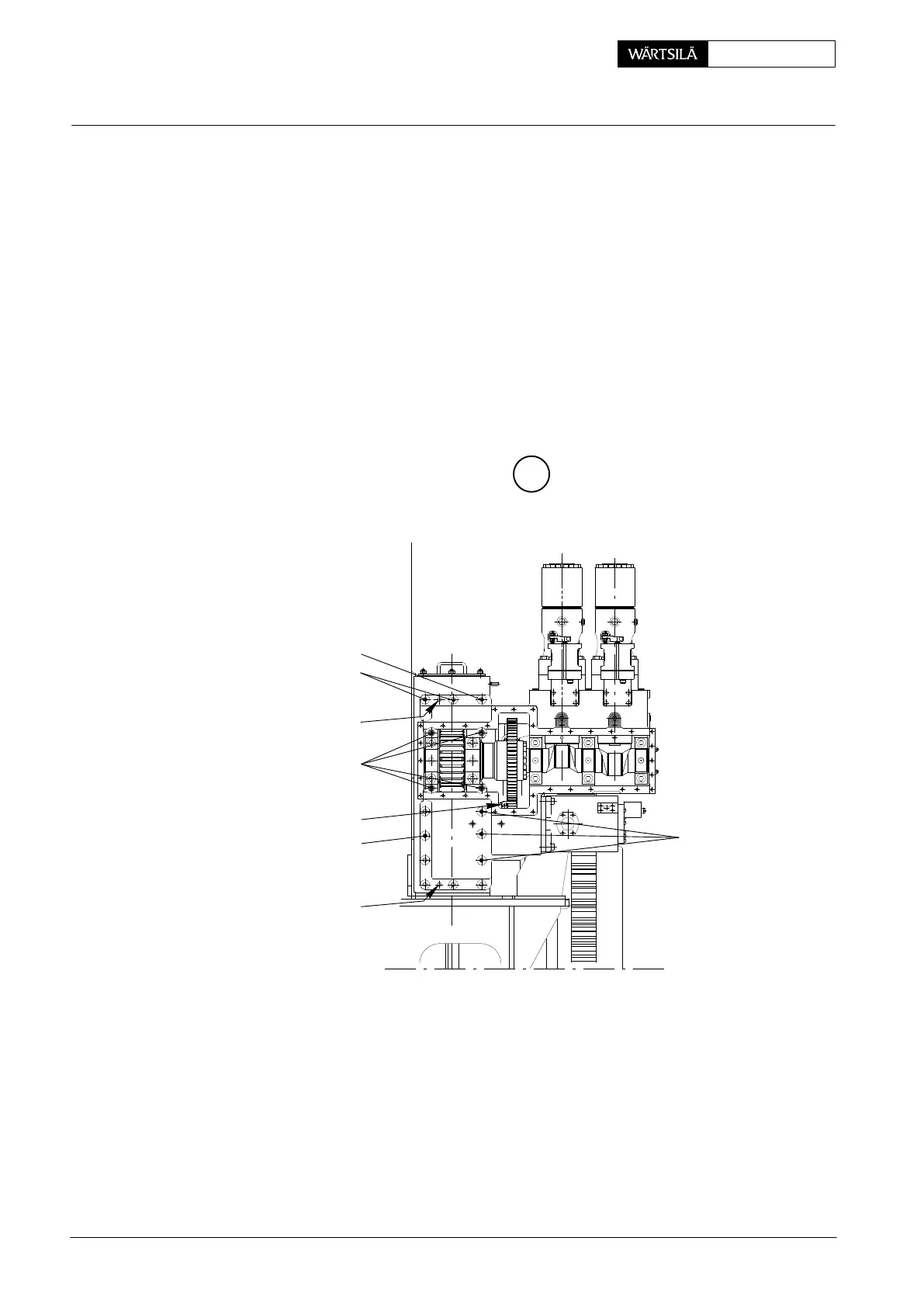

⇒ Screw RUD-eye bolts ’RC’ into housing of supply unit 1 as shown in Fig. ’D’.
⇒ Suspend lifting tool 94557 on lifting tackles ’HZ’ (lifting capacity 2000 kg each)
and connect these with RUD-eye bolts ’RC’.
⇒ Tauten lifting tackles ’HZ’.
⇒ Loosen screws 11 and remove them together with the distance sleeves.
⇒ Loosen screws 5, 6, 7 and cap screws 8.
⇒ Bring the supply unit in horizontal position with lifting tackles ’HZ’.
⇒ Carefully move supply unit away.
C
013.042/05
7
5
6
8
10
6
4
4
R
emoval and Fitting of Supply Unit
2010
