Maintenance
9403−5/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
17/ 38

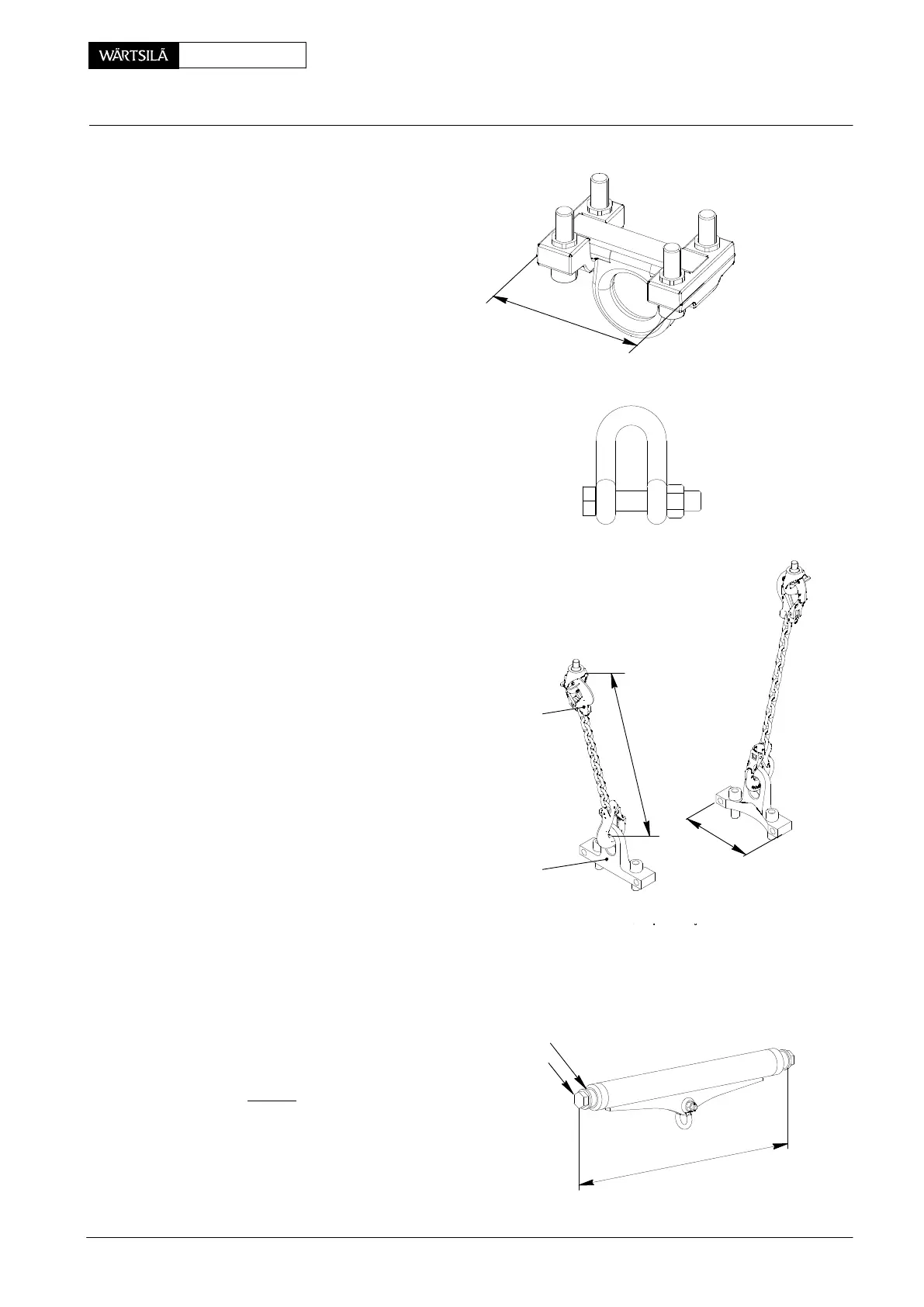

94332 2 Lifting rings
for removal and fitting of:
− main bearing
− bearing cover of top end bearing
− guide shoe
− connecting rod
X = 194 mm
(WLL 8000 kg)
X
013.587/05
94332a 1 Shackle M23
to lifting ring 94332
(WLL 4800 kg)
018.662/09
94333
94333a
94333b
1
2
2
Lifting device
to piston for removal and fitting of:
− top end bearing cover
− crosshead pin and
− changing compression shim
consisting of:
Lifting bosses
with 4 Allen screws M16x45
X = 166 mm
(WLL 1100 kg)
Suspension chains
X
1
= 440 mm
94333a
94333b
X
1
X
013.588/05
94335
94335b
94335c
1
2
2
Lifting tool
for removal and fitting of heavy engine
components
(platform without
crane rail)
Bushes
Screws
X = 964 mm
(WLL 1740 kg)
016.622/08
X
94335c
94335b
2010 / 50−D
Standard Tools
