Maintenance9403−5/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
18/ 38

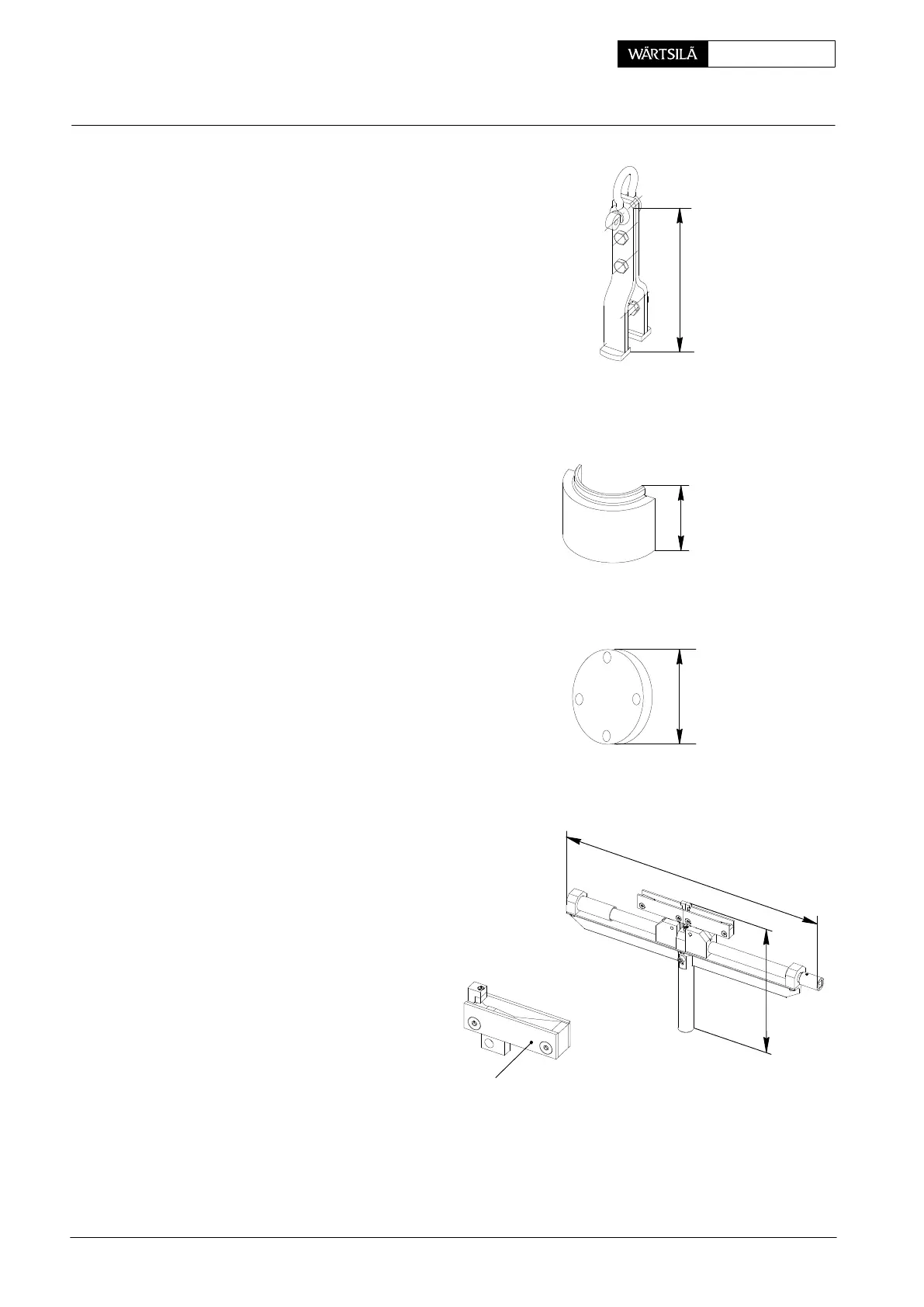

94337 1 Lifting tool
for removal and fitting of inside pipe to
piston cooling & crosshead lubrication
X = 137 mm
701.013.589
X
013.589/05
94337a 1 Centring piece
for alignment of inside pipe
X = 58 mm
701.013.590
X
013.590/05
94337b 1 Flange
for blanking off oil bore
X = 155 mm
X
013.591/05
94338
94338a
1
2
Piston ring tensioning device
X = 550 mm
Y = 282.5 mm
Claw width = 11 mm
Claws
Claw width = 11 mm
for gastight piston rings
013.593/05
94338a
X
17.830/08
Y
2010
Standard Tools
