Chapter 2 Operation of Diag.
Version 1 2006.11.21
Interlock Switch (DI-7)
1) Turn on the power and enter the Printer Diag.
2) Execute the DI-7.
3) Check the Switch
4) Press the "Cancel" key to stop the test.
5) Close the Front Cover.
Yellow Toner Cartridge (DI-8)
NOTE: When performing operation for five minutes or longer with the
front cover open, remove all toner cartridges, and cover the drum to
avoid exposure to light.
1) Turn on the power and enter the Printer Diag.
2) Execute the DI-8.
3) Open the Front Cover
4) Check the Sensor.
5) Press the "Cancel" key to stop the test.
6) Close the Front Cover.

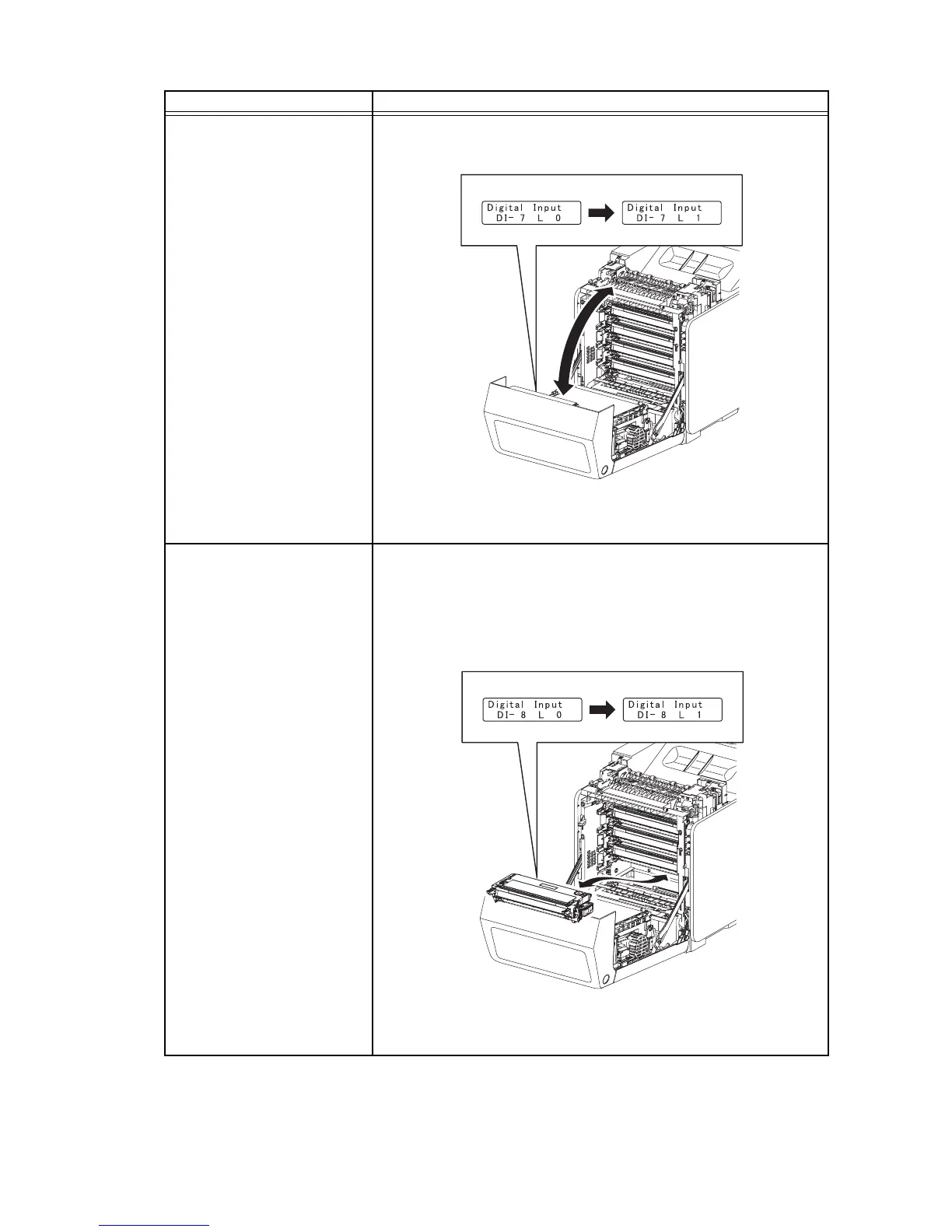

Sensor name (Diag. Code) Confirmation procedures
Gnb02006KA
Operator Panel
Normal
Gnb02007KA
Operator Panel
Normal
To Next Page
