Magenta Toner Cartridge
(DI-9)
NOTE: When performing operation for five minutes or longer with the
front cover open, remove all toner cartridges, and cover the drum to
avoid exposure to light.
1) Turn on the power and enter the Printer Diag.
2) Execute the DI-9.
3) Open the Front Cover
4) Check the Sensor.
5) Press the "Cancel" key to stop the test.
6) Close the Front Cover.
Black Toner Cartridge (DI-a)
NOTE: When performing operation for five minutes or longer with the
front cover open, remove all toner cartridges, and cover the drum to
avoid exposure to light.
1) Turn on the power and enter the Printer Diag.
2) Execute the DI-a.
3) Open the Front Cover
4) Check the Sensor.
5) Press the "Cancel" key to stop the test.
6) Close the Front Cover.

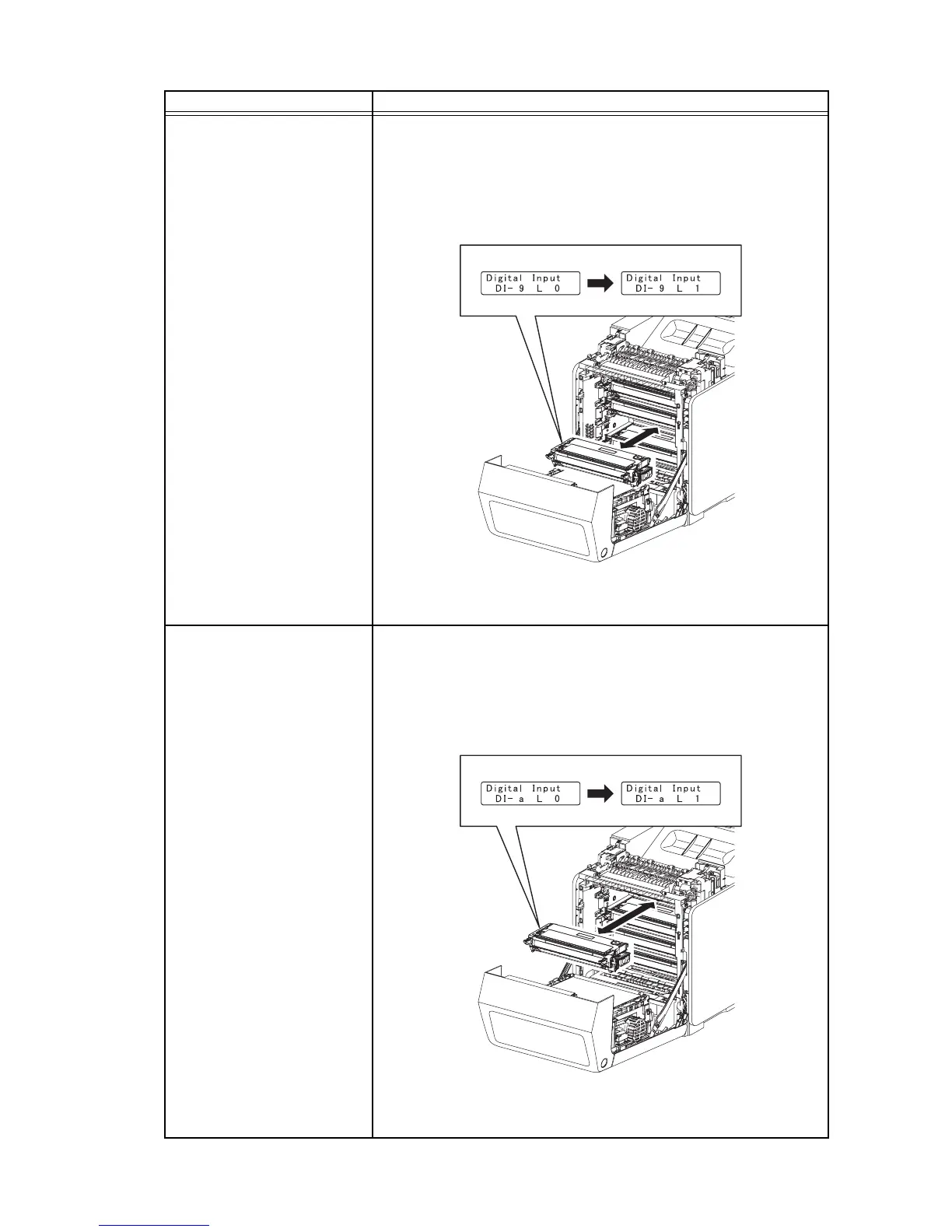

Sensor name (Diag. Code) Confirmation procedures
Gnb02008KA
Operator Panel
Normal
Gnb02010KA
Operator Panel
Normal
