2 - 26
Chapter 2 Operation of Diag.
Version 1 2006.11.21
Cyan Toner Cartridge (DI-b)
NOTE: When performing operation for five minutes or longer with the
front cover open, remove all toner cartridges, and cover the drum to
avoid exposure to light.
1) Turn on the power and enter the Printer Diag.
2) Execute the DI-b.
3) Open the Front Cover
4) Check the Sensor.
5) Press the "Cancel" key to stop the test.
6) Close the Front Cover.
Tray 2 No paper Sensor (DI-
d)
NOTE: The no peper senser is in the option feeder.
1) Turn on the power and enter the Printer Diag.
2) Execute the DI-d.
3) Remove the Paper Cassete.
4) Check the Sensor.
5) Press the "Cancel" key to stop the test.
6) Replace the paper cassette.

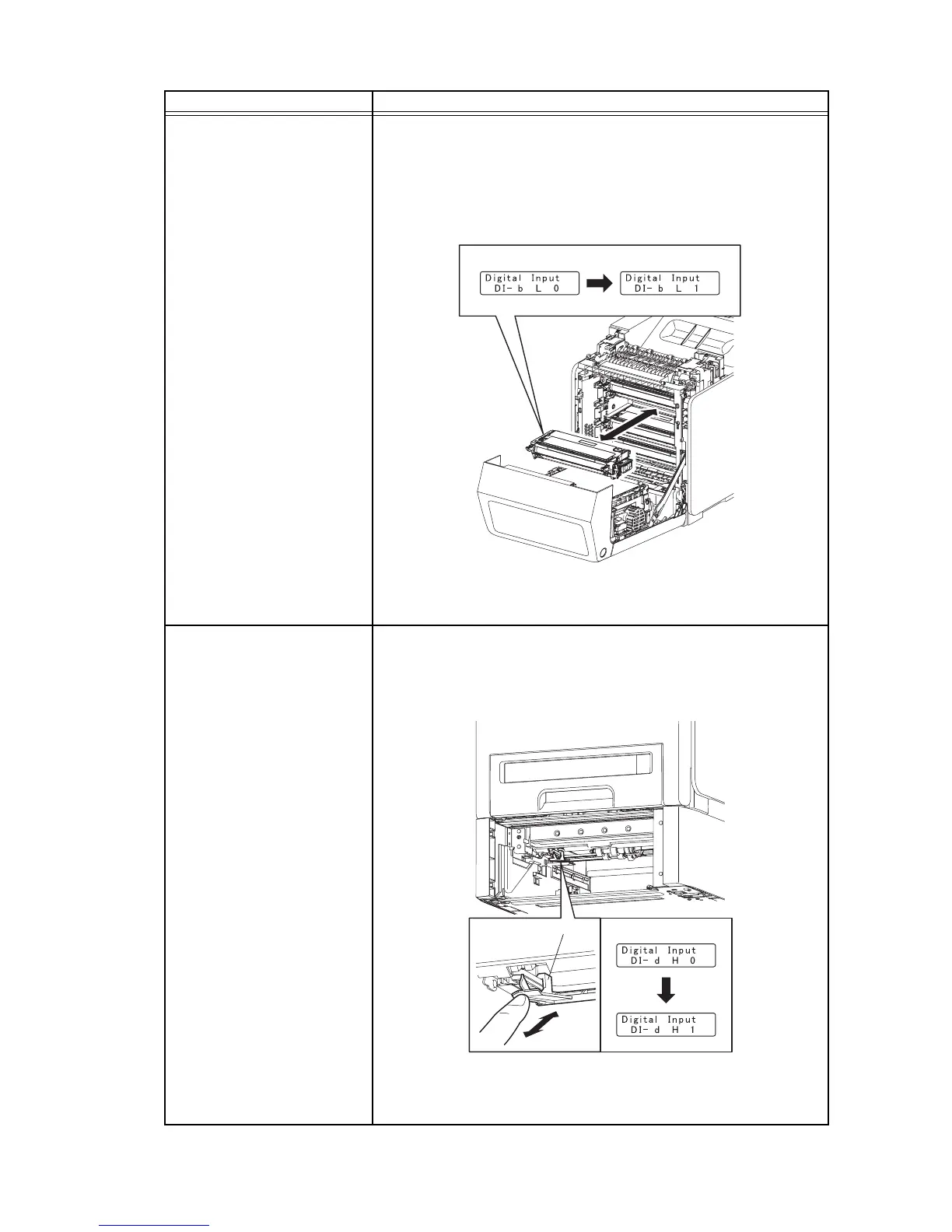

Sensor name (Diag. Code) Confirmation procedures
Gnb02009KA
Operator Panel
Normal
Kmy02011KA
Operator PanelActuator
Normal
