3 - 51
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Removal 32 HIGH VOLTAGE POWER SUPPLY (PL5.1.17)

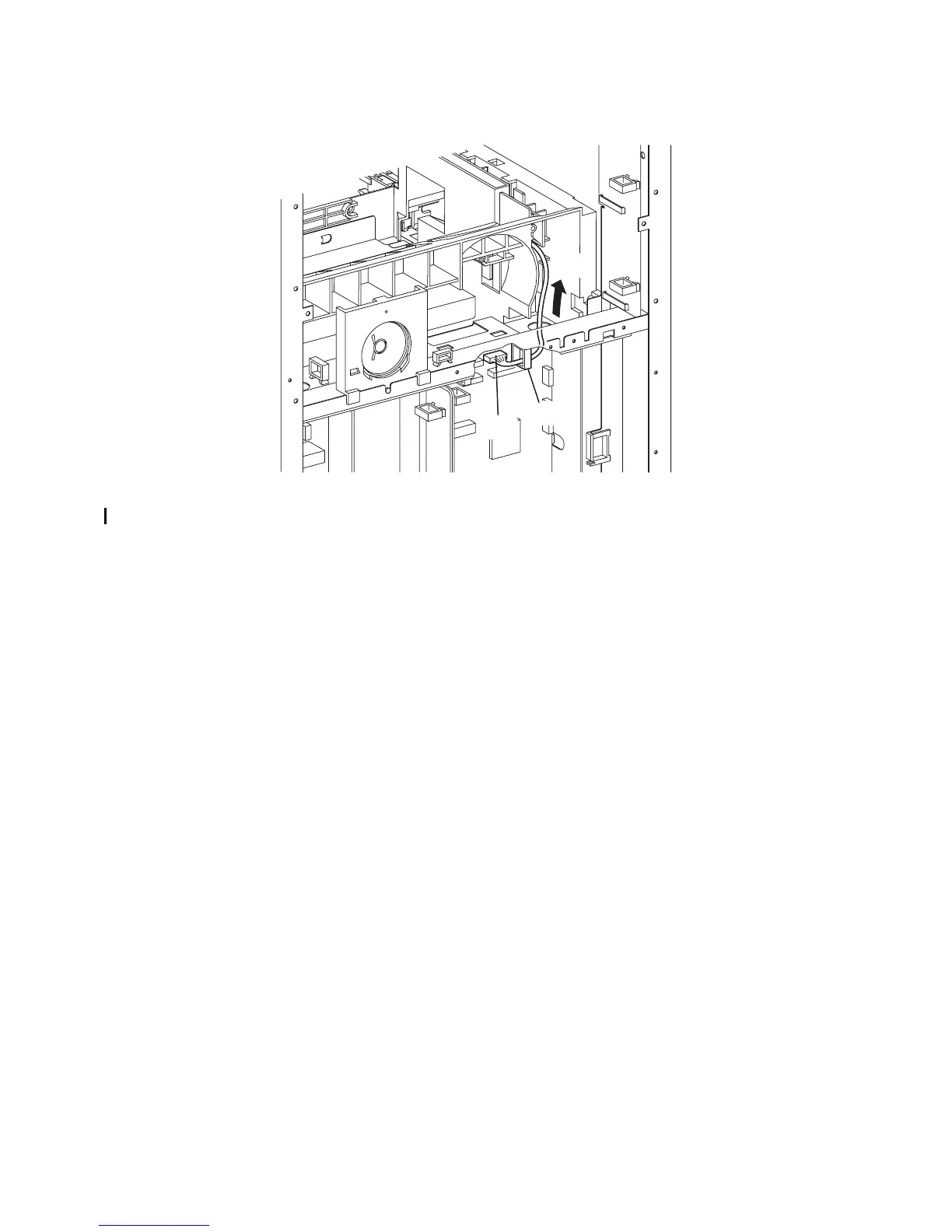

18) Disengage the connector (P/J16) of the HIGH VOLTAGE POWER SUPPLY (PL5.1.17) from
the MACHINE CONTROL UNIT (PL13.5.13).
Continues to the next page.
Gnb03045KA
18)-2
18)-3
18)-1
