3 - 106
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 72 ADF SCANNER ASSY (PL13.8.1)

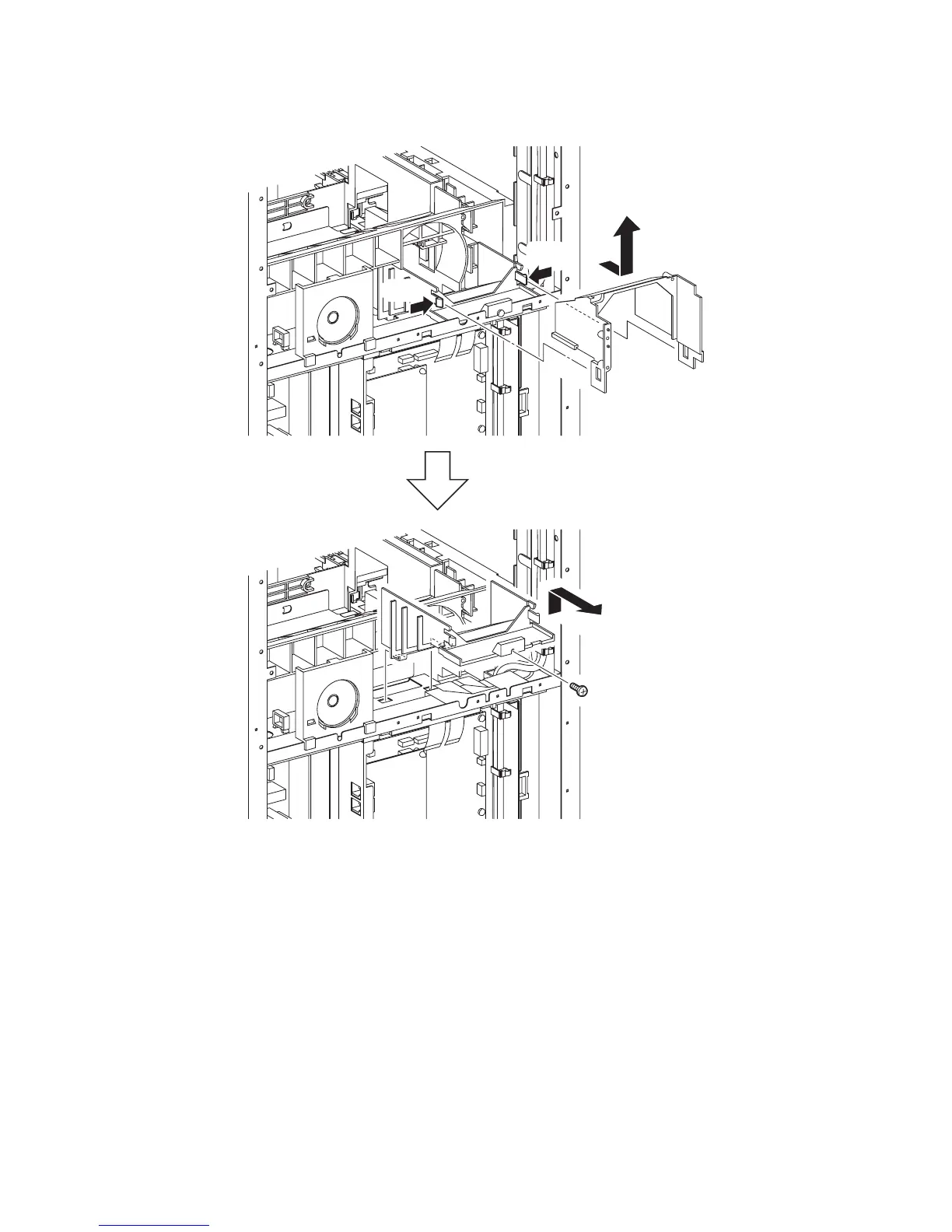

18) Remove the DUCT UPPER by releasing the two hooks on the DUCT LOWER (PL13.5.8) and
sliding the DUCT UPPER backward.
19) Remove the one screw (silver, 6mm) that fixes the DUCT LOWER to the printer.
20) Release the two hooks on the bottom of the DUCT LOWER from the holes of the printer, and
remove the DUCT LOWER.
Continues to the next page.
Gnb03182KB
18)-1
18)-2
18)-1
19)
20)
To Next Page
