Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Replacement 31 FEED DRIVE ASSEMBLY (PL8.1.7)

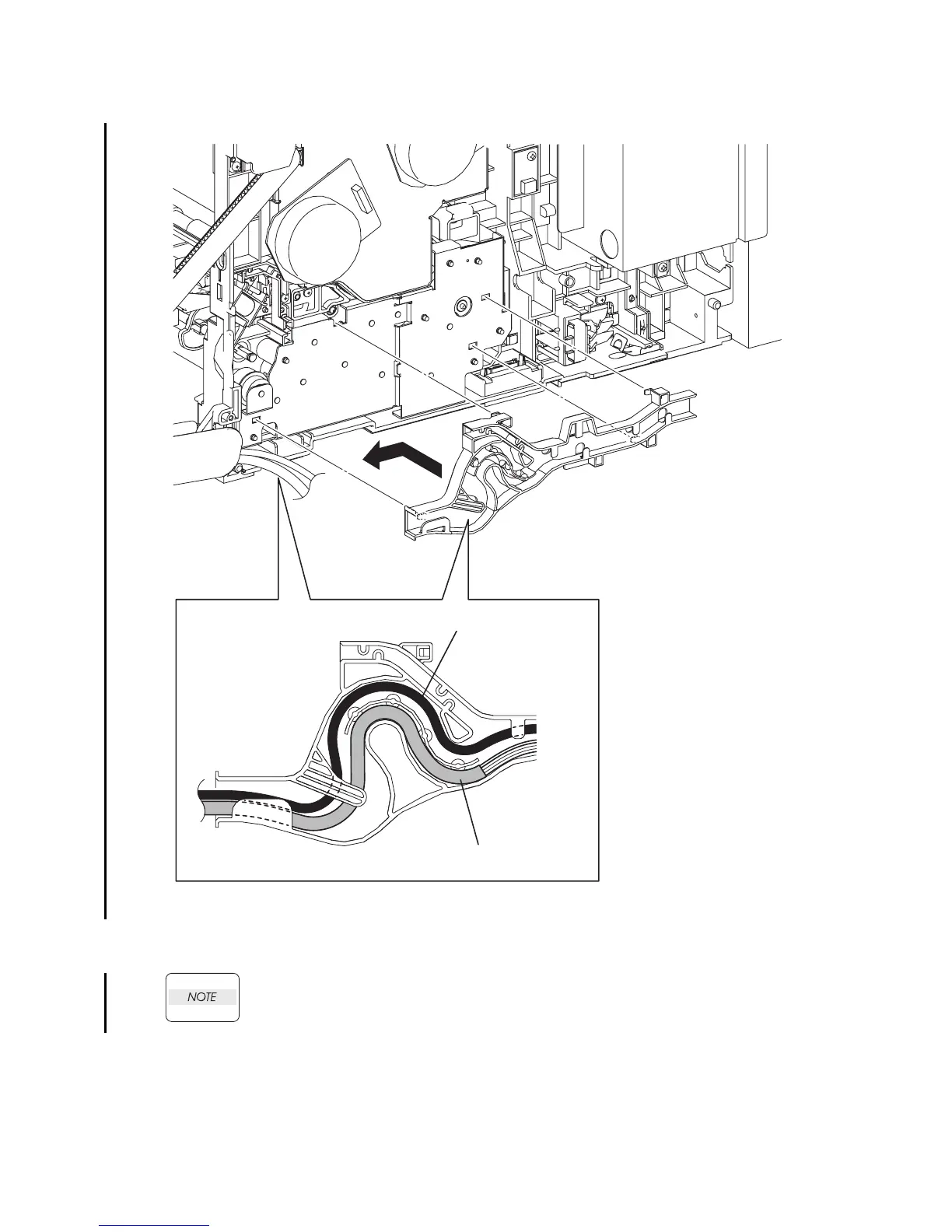

4) Mate the four hooks on the DUCT DRV PH with the holes on the FEED DRIVE ASSY. Secure
the DUCT DRV PH by moving it frontward allowing the hooks to lock into place.
When performing the step below, route the HARNESS ASSY A-OP-OPP over the HAR-
NESS ASSY FRONT COVER.
5) Route all the harnesses along the DUCT DRV PH.
Continues to the next page.
Gnb03079KB
4)
HARNESS ASSY A-OP-OPP
NOTE
HARNESS ASSY FRONT COVER
To Next Page
