142 Configuring System Information
To display the Optical Transceiver Diagnostics page, click System
Diagnostics
Optical Transceiver
Diagnostics in the tree view.
NOTE: Optical transceiver diagnostics can be performed only when the link is present.

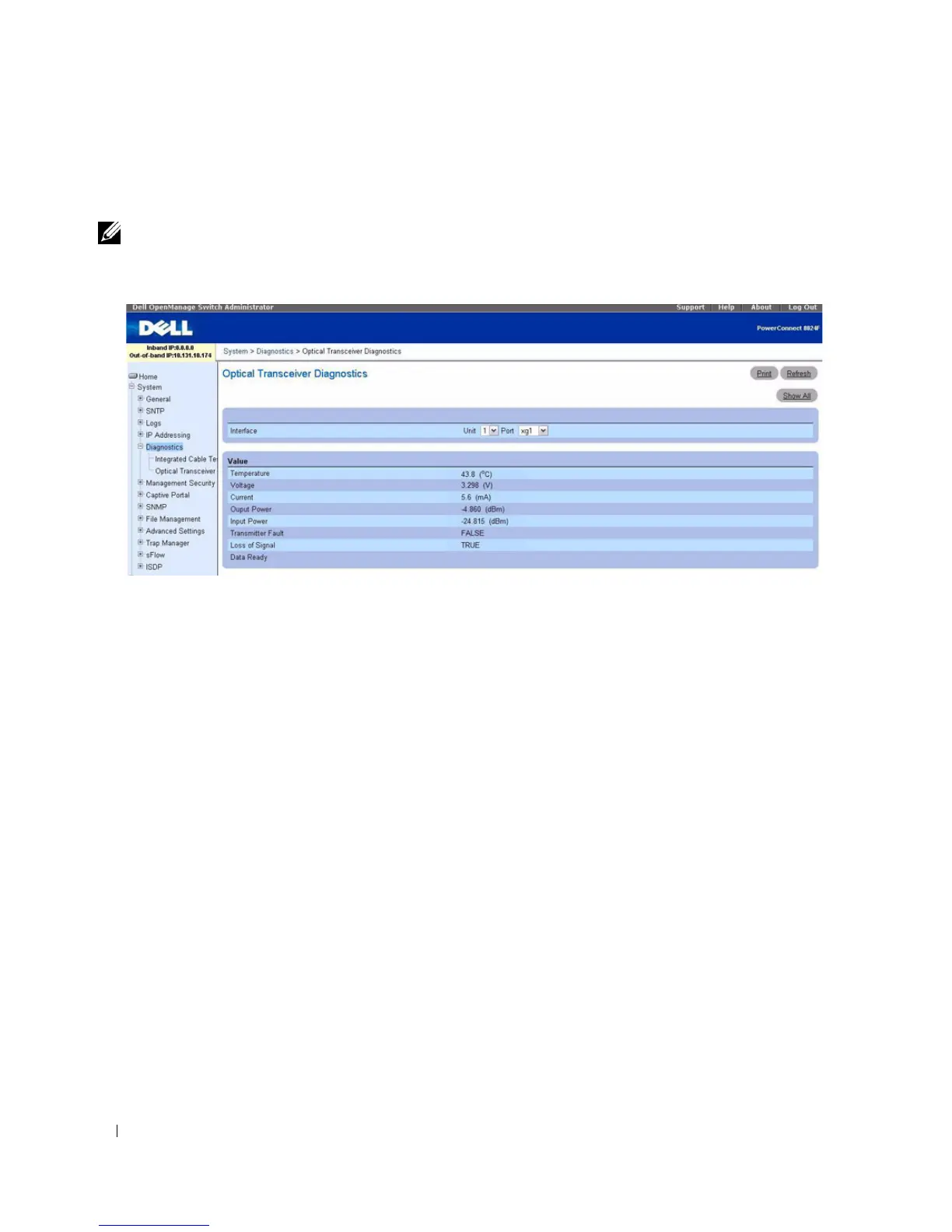

Figure 6-35. Optical Transceiver Diagnostics
The Optical Transceiver Diagnostics page contains the following fields:
Interface
— The port IP address on which the cable is tested.
Temperature
— The temperature (C) at which the cable is operating.
Voltage
— The voltage at which the cable is operating.
Current
— The current at which the cable is operating.
Output Power —
The rate at which the output power is transmitted.
Input Power
— The rate at which the input power is transmitted.
Transmitter Fault
Indicates if a fault occurred during transmission.
Loss of Signal
— Indicates if a signal loss occurred in the cable.
Data Ready
— Indicates the transceiver has achieved power up and data is ready.
NOTE: Finisar transceivers do not support the transmitter fault diagnostic testing. Fiber Optic analysis feature works
only on SFPs that support the digital diagnostic standard SFF-4872.
Displaying Optical Transceiver Diagnostics Test Results Table
1.
Open the
Optical Transceiver Diagnostics
page.
2.
Click
Show All
.
3.
Select the desired unit from the drop-down menu.
