Configuring System Information 143

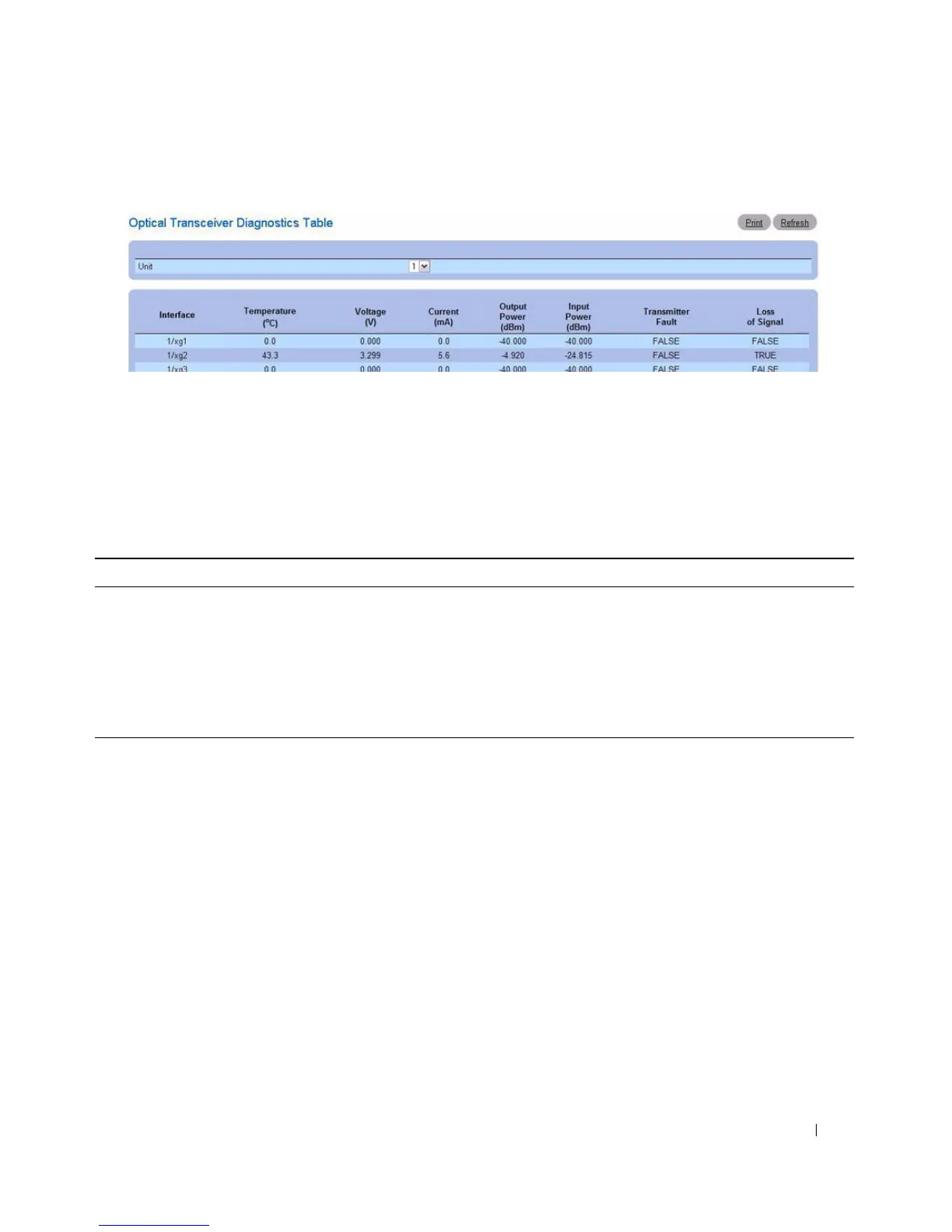

Figure 6-36. Optical Transceiver Diagnostics Table
The test runs and displays the Optical Transceiver Diagnostics Table page.
Performing Fiber Optic Cable Tests Using CLI Commands
For information about the CLI commands that perform this function, see the PHY Diagnostics
Commands
chapter in the CLI Reference Guide . The following table summarizes the equivalent CLI
commands you use to perform cable tests.
Table 6-22. Cable Tests Commands
CLI Command Description
show copper-ports cable-length Use to display the estimated copper cable length attached to a port.
show copper-ports-tdr Use to display the last TDR (Time Domain Reflectometry) tests on
specified ports.
show fiber-ports optical-transceiver Use to display the optical transceiver diagnostics.
test copper-port tdr Use to diagnose with TDR technology the quality and characteristics
of a copper cable attached to a port.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
