Dell PowerConnect 8024 User Guide

Configuring Switching Information 305

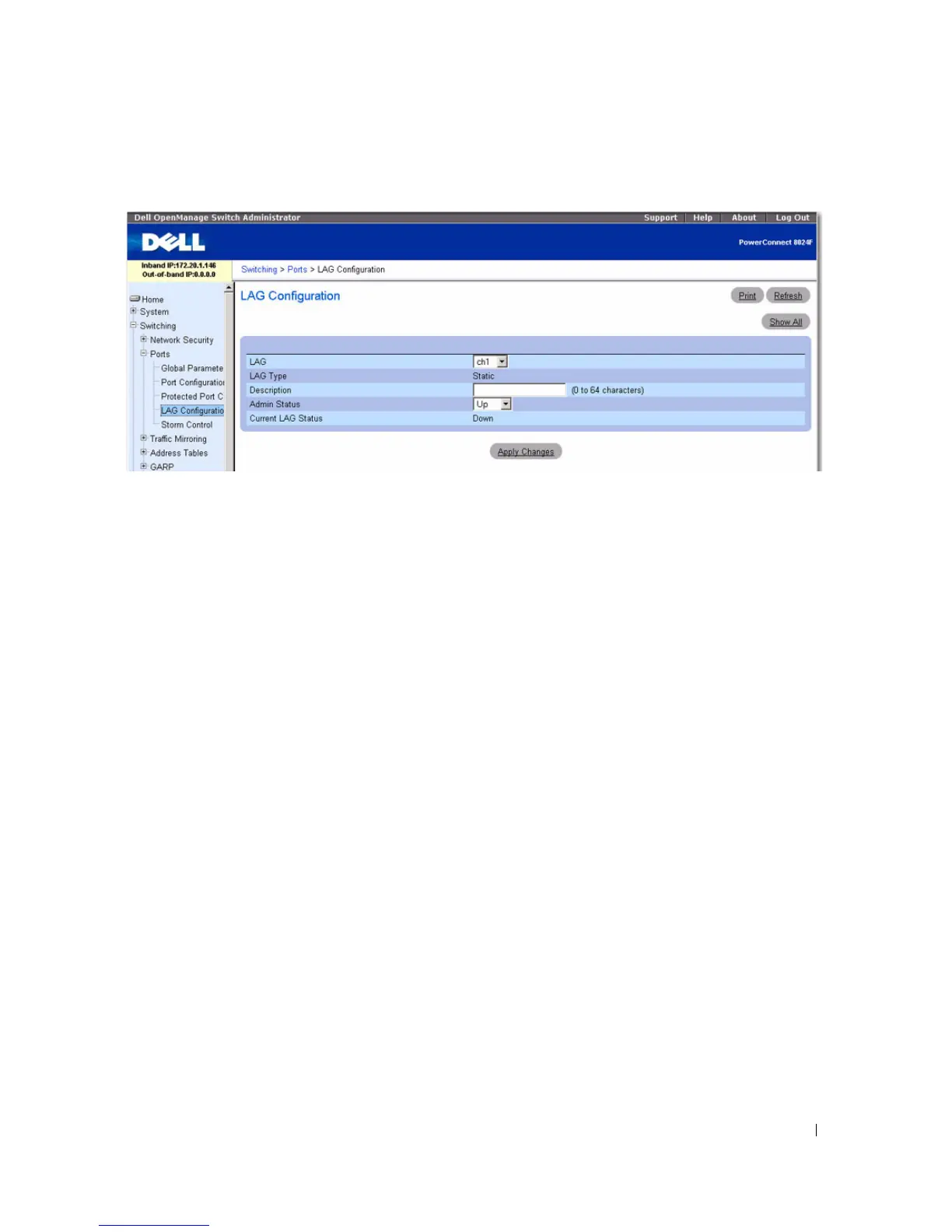

Figure 7-25. LAG Configuration
The LAG Configuration page contains the following fields:
• LAG — Contains a list of LAG numbers.
•
LAG Type — The port types that comprise the LAG.
•
Description (0–64 Characters) — Description of the port.
•
Admin Status — Enables or disables traffic forwarding through the selected LAG.
•
Current LAG Status — Indicates whether the selected LAG is Up or Down.
Defining LAG Parameters
1. Open the LAG Configuration page.
2. Select a LAG in the LAG field.
3. Define the available fields on the screen.
4. Click Apply Changes .
The LAG parameters are saved to the switch.
Displaying the LAG Configuration Table
1. Open the LAG Configuration page.
2. Click Show All .
3. The LAG Configuration Table displays.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
