Dell PowerConnect 8024 User Guide

306 Configuring Switching Information

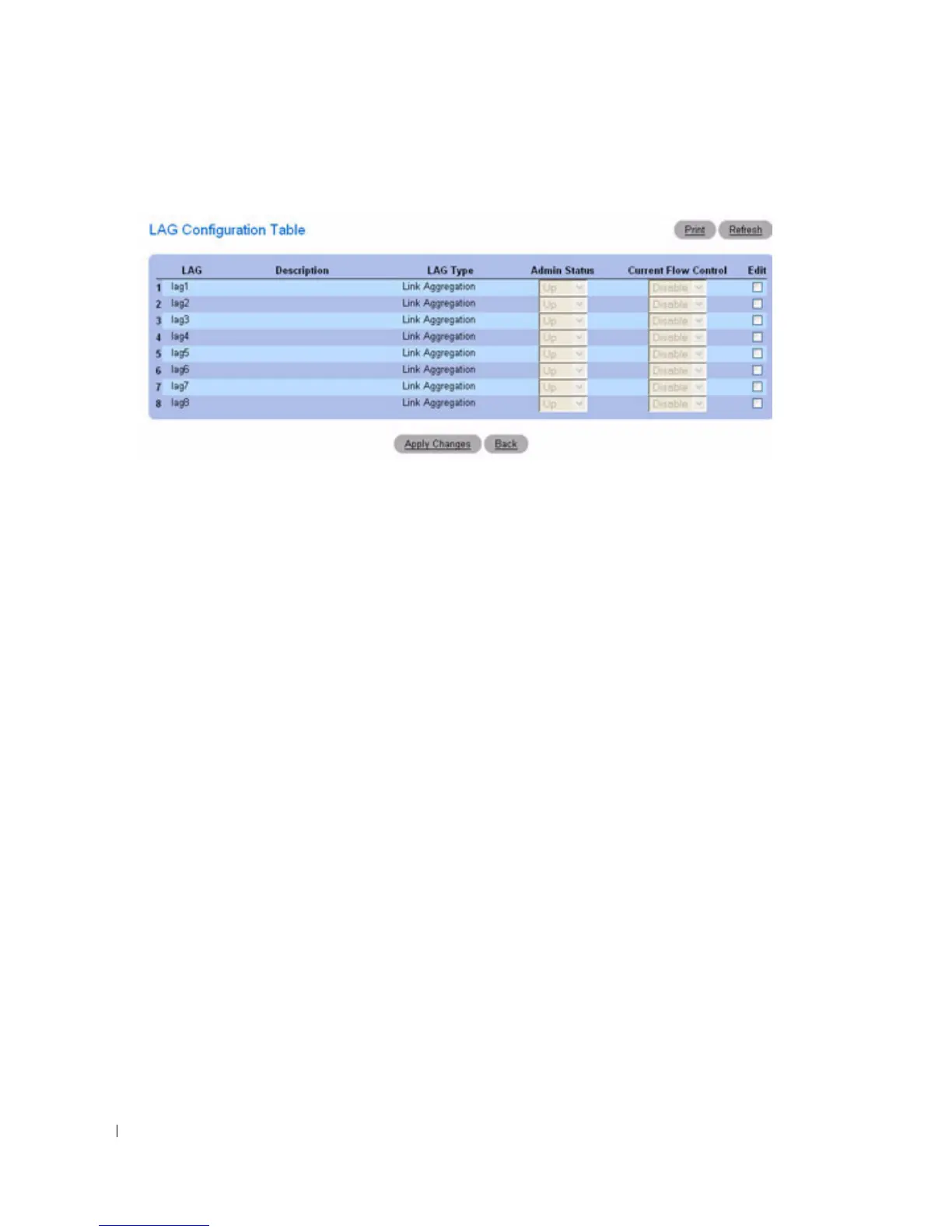

Figure 7-26. LAG Configuration Table
Editing LAG Parameters
1. Open the LAG Configuration page.
2. Click Show All .
3. The LAG Configuration Table displays.
4. Check Edit for all LAGs to be modified.
5. Admin Status and Description can now be edited as needed.
6. Click Apply Changes .
The LAG parameters are saved to the switch.
Configuring LAGs with CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide :
• Port Channel Commands
The following table summarizes the equivalent CLI commands for this feature.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
