Dell PowerConnect 8024 User Guide

Configuring Switching Information 315

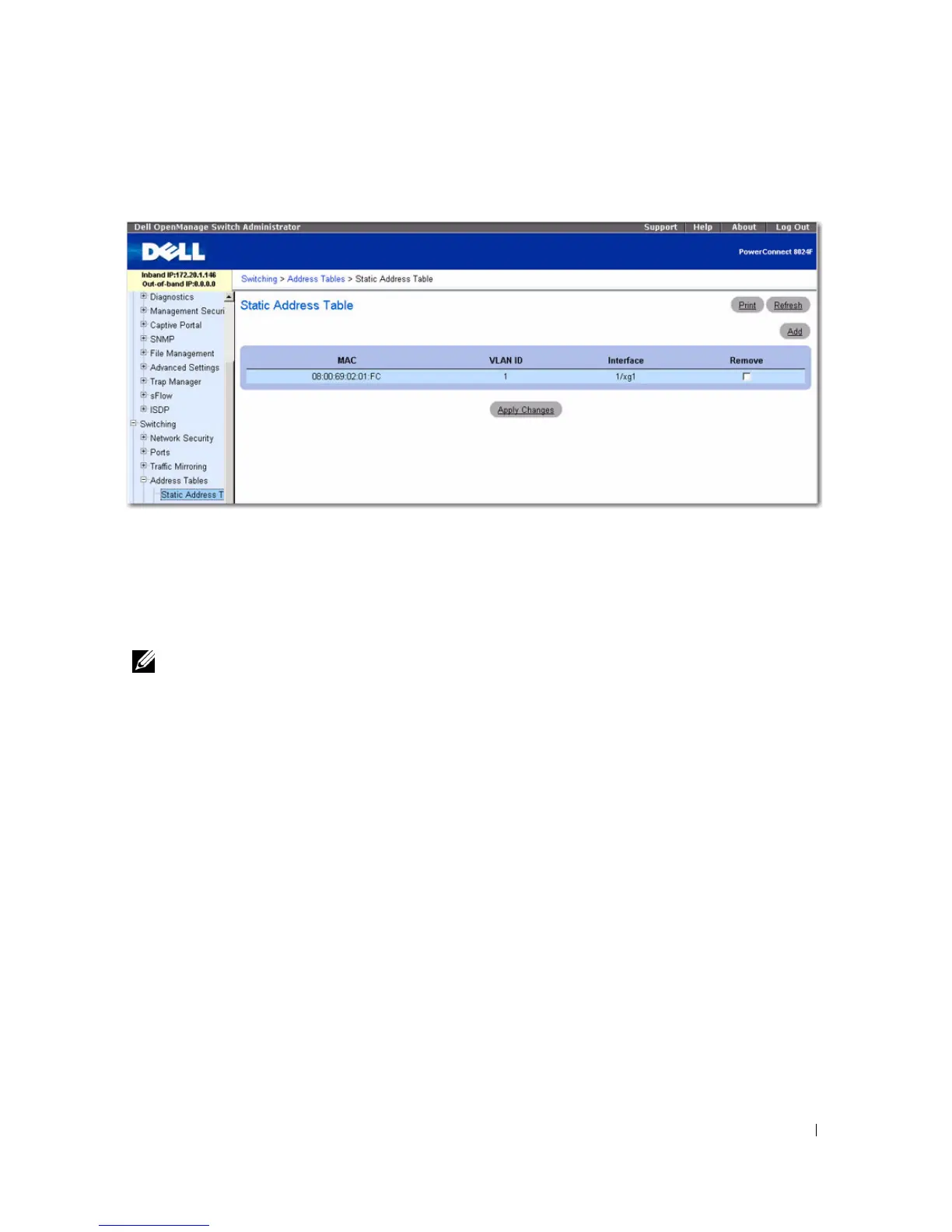

Figure 7-32. Static MAC Address
The Static MAC Address page contains the following fields:
• Interface — Specifies the Unit and Port or LAG to which the static MAC address is applied. To view
addresses for a different Unit/Port or LAG, change the Interface listed here.
•
VLAN ID - MAC Address — Specifies VLAN ID attached to the MAC Address and the MAC
address(es) included in the current static address list.
NOTE: Only MAC addresses assigned to the specified interface and VLAN are displayed.
• Status — Specifies status of the MAC address. Possible values are:
–
Permanent — The MAC address is permanent.
–
Secure — Guarantees that a locked port MAC address is not deleted.
–
Delete on Reset — The MAC address is deleted when the switch is reset.
–
Delete on Timeout — The MAC address is deleted when a timeout occurs.
Adding a Static MAC Address
1. Open the Static MAC Address page .
2. Click Add .
The
Add Static MAC Address page displays.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
