Dell PowerConnect 8024 - Page 316

316 Configuring Switching Information

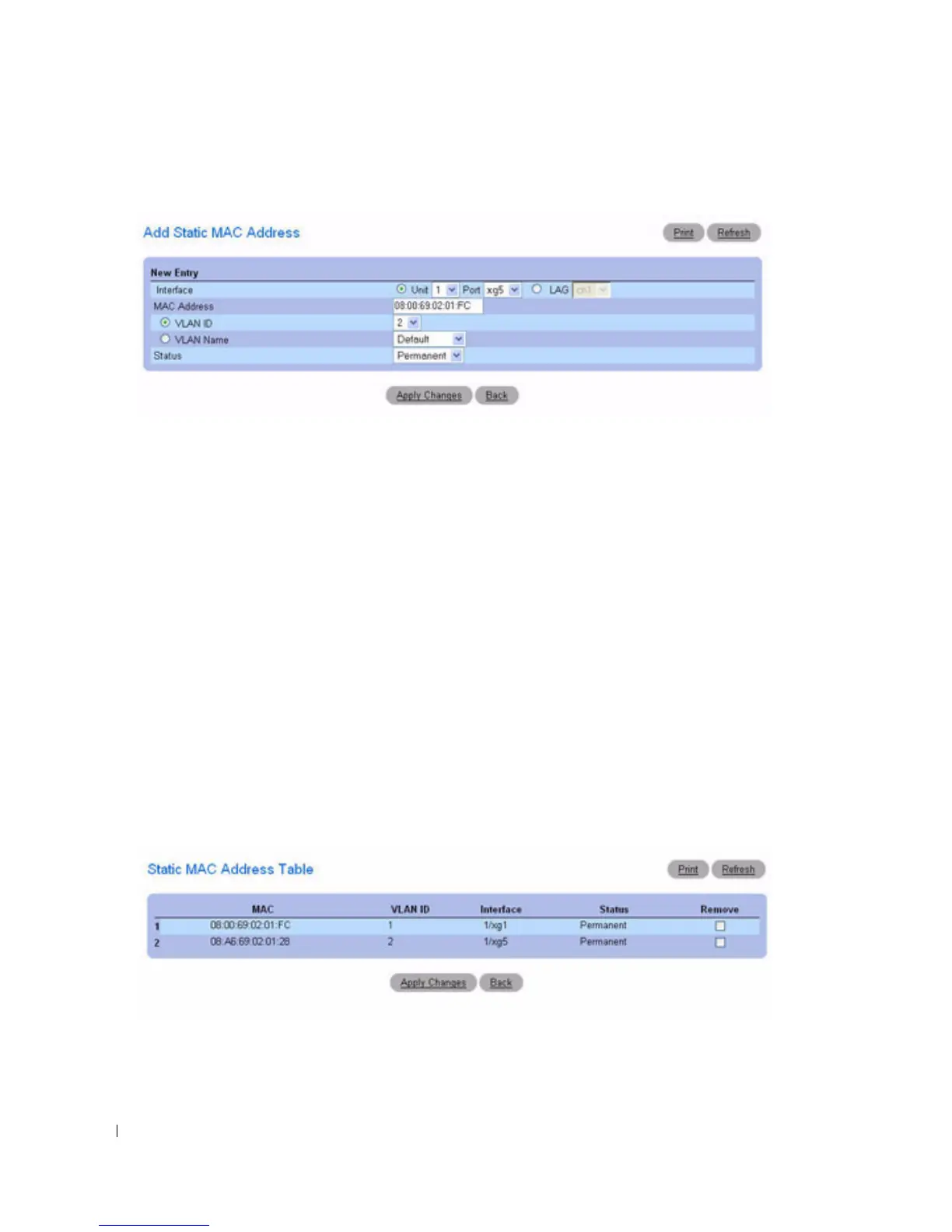

Figure 7-33. Adding Static MAC Address
3. Complete the fields as needed.
4. Click Apply Changes .
The new static address is added to the
Static MAC Address Table , and the device is updated.
Modifying a Static Address in the Static MAC Address Table
1. Open the Static MAC Address page.
2. Modify the fields.
3. Click Apply Changes .
The static MAC address is modified, and the device is updated.
Displaying the Static MAC Address Table
1. Open the Static MAC Address page.
2. Click Show All .
The
Static MAC Address Table displays all existing static MAC addresses.
Figure 7-34. Static MAC Address Table
Removing a Static Address from the Static Address Table
1. Open the Static MAC Address page.
