334 Configuring Switching Information
To display the MSTP Settings page, click Switching
→
Spanning Tree
→
MSTP Settings in the tree view.

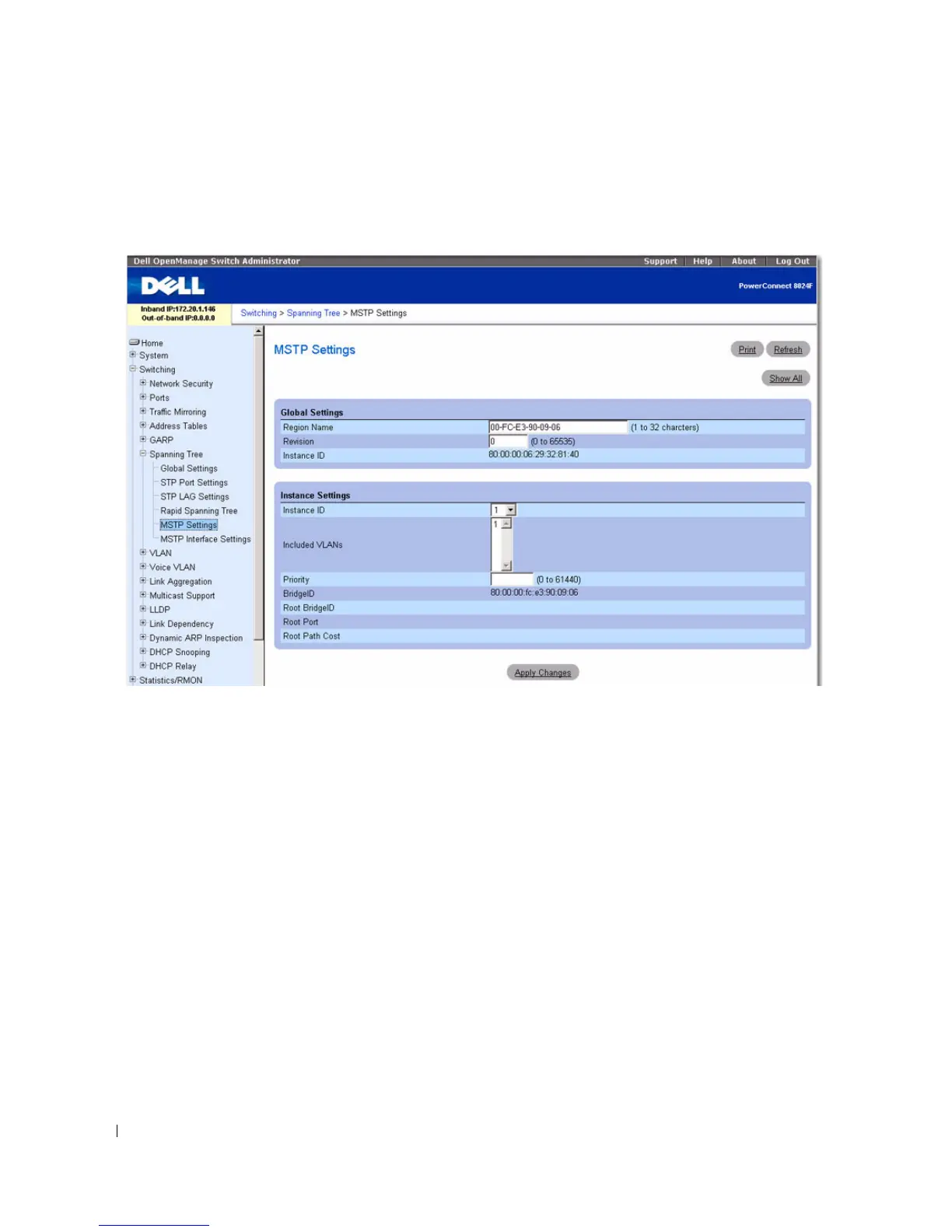

Figure 7-45. MSTP Settings
The MSTP Settings page contains the following fields divided into two sections, Global Settings and
Instance Settings:
•
Region Name (1–32 characters) —
Specifies a user-defined MST region name.
•
Revision (0–65535) —
Specifies unsigned 16-bit number that identifies the revision of the current
MST configuration. The revision number is required as part of the MST configuration. Default is 0.
•
Max Hops (1–40) —
Specifies the total number of hops that occur in a specific region before the
BPDU is discarded. Once the BPDU is discarded, the port information is aged out. Default is 20.
•
Instance ID —
Specifies the ID of the spanning tree instance. The field range is 1–15, and default is 1.
•
Included VLANs
— Maps the selected VLANs to the selected instance. Every VLAN belongs to one
instance only.
•
Priority (0–61440) —
Specifies the switch priority for the selected spanning tree instance. The default
value is 32768.
•
Bridge ID
— Indicates the bridge ID of the selected instance.
•
Root Bridge ID
of the root bridge which is the one with the lowest path cost.
•
Root Port —
Indicates the root port of the selected instance.
