Configuring Switching Information 335
• Root Path Cost — Indicates the path cost of the selected instance.
Modifying MSTP Settings:
1. Open the MSTP Settings page.
2. Modify the fields in the Global Settings and Instance Settings sections as needed.
3. Click Apply Changes .
The MSTP parameters are modified, and the device is updated.
Displaying the MSTP VLAN to Instance Mapping Table
1. Open the MSTP Settings page.
2. Click Show All .
The
MSTP Settings Table displays.

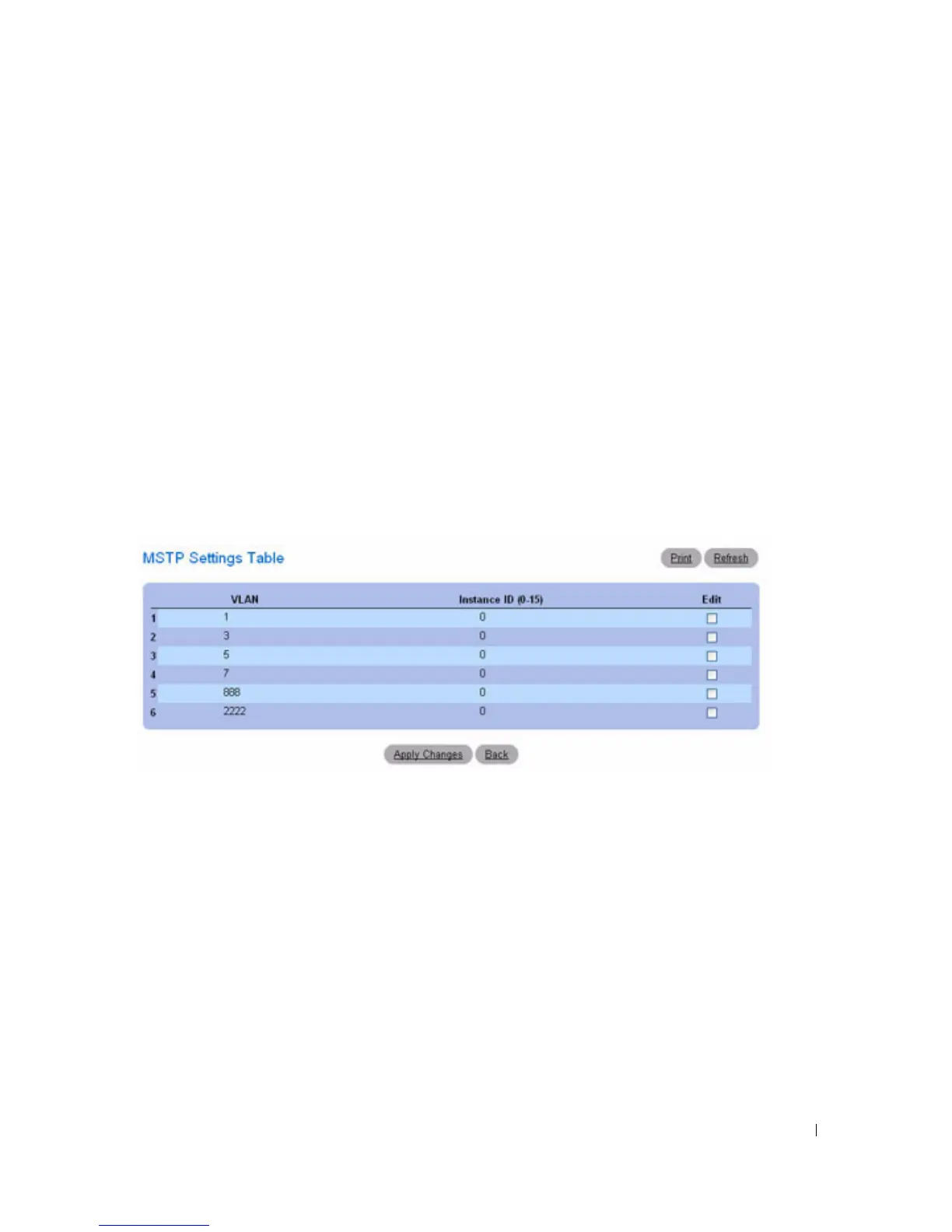

Figure 7-46. MSTP Settings Table
3. To modify the Instance ID for one or more VLANs, check Edit for the desired VLANs.
4. Make needed changes to Instance IDs. Enter a value of 0 to remove the VLAN-to-Instance mapping.
5. Click Apply Changes.
The Instance IDs are modified for the selected VLANs, and the device is updated.
Defining MST Instances Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide :
• Spanning Tree Commands
The following table summarizes the equivalent CLI commands for this feature.
