Function Checks
Chapter 2: Troubleshooting Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 2 - 11
2
c. Release the hood assembly (D) by pulling and holding the knob
(H) located on the right rear pivot/hood lock assembly bracket
(G) while closing the hood assembly (D).
d. Connect the weighing scale cable (E) to the sensor module (F).
The pivot/hood lock assembly bracket (G) operates properly.
Yes No
↓→Go to RAP 2.6 on page 2-60.
11. Perform the following to check the operation of the access panel (I)
(see figure 2-2 on page 2-11).

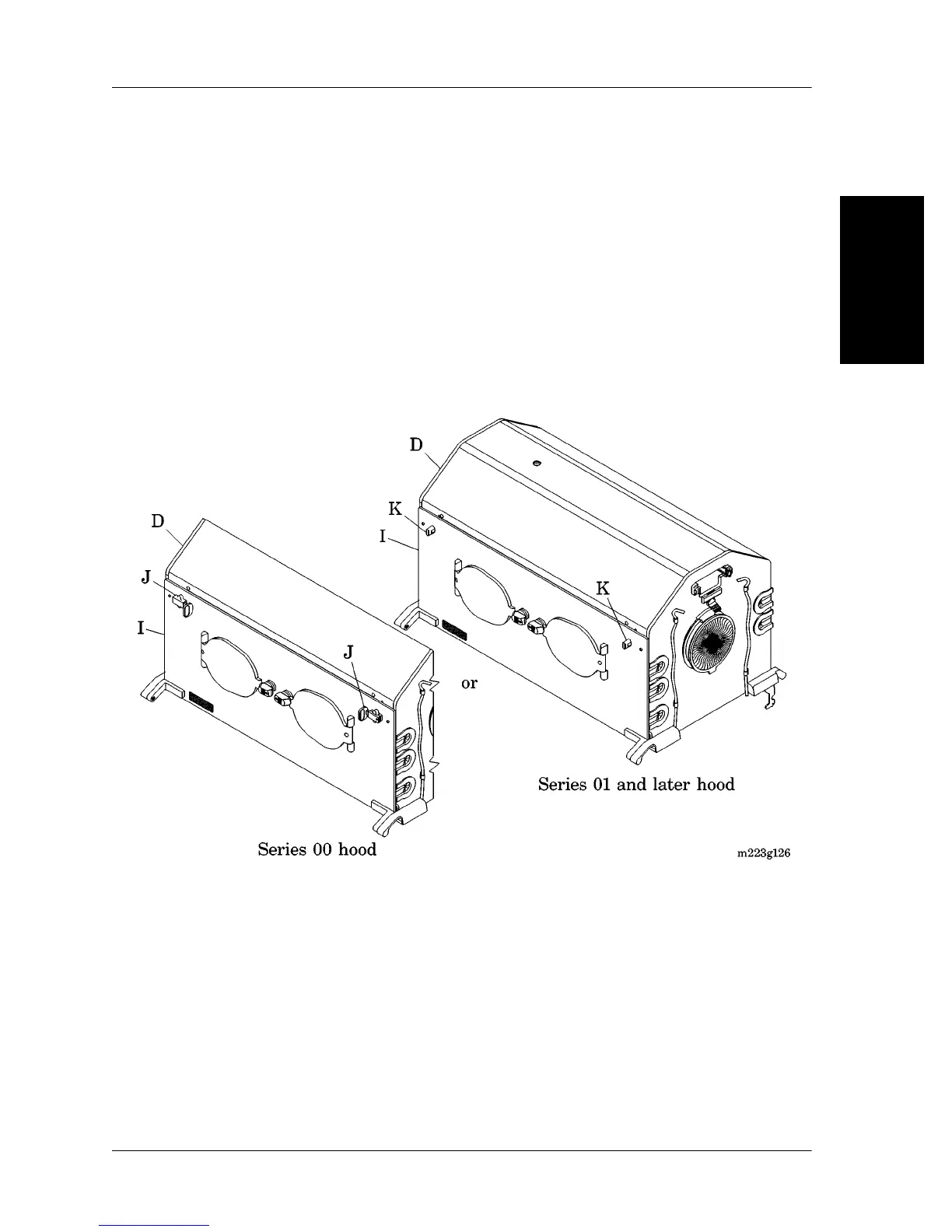

Figure 2-2. Access Panels
a. On a unit with a Series 00 hood assembly (D), slide the blue
slide access panel latches (J), and open the access panel (I).
or
On a unit with a hood assembly (D) later than Series 00, rotate
the access panel pawl latch knobs (K), and open the access
panel (I).
b. Pivot the access panel (I) to the full-open position so it hangs
straight down.
c. Check the rear access panel (I), if so equipped.
To Next Page
