Function Checks
Chapter 2: Troubleshooting Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 2 - 15
2

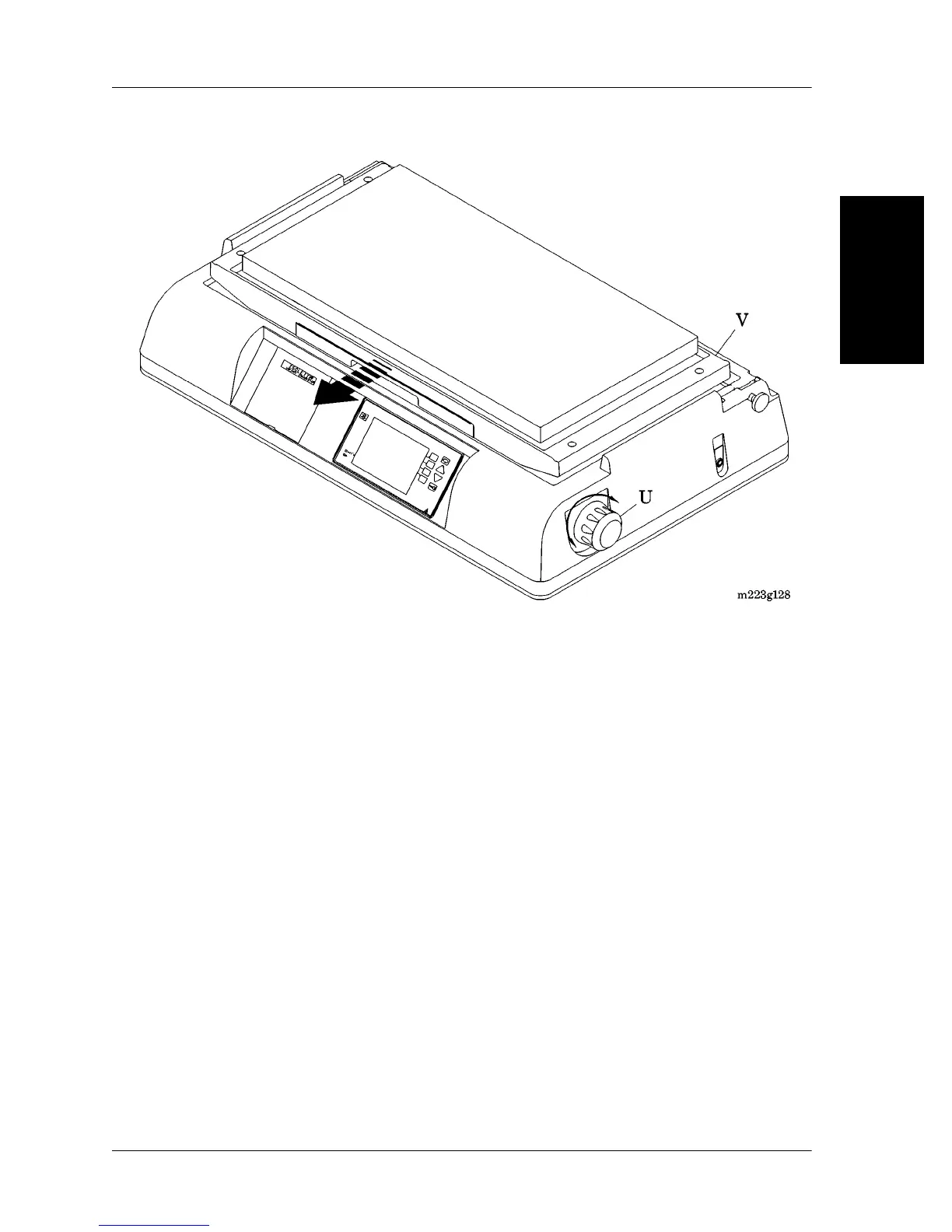

Figure 2-5. Mattress Tray Assembly
b. Rotate the right-hand mattress tilt mechanism knob (U)
clockwise until it stops and the mattress tray (V) is level.
c. Rotate the left-hand mattress tilt mechanism knob (U) clockwise
and the left end of the mattress tray (V) is at a 12 angle.
d. Rotate the left-hand mattress tilt mechanism knob (U)
counterclockwise and the mattress tray (V) is level.
The mattress tray (V) correctly tilts with the rotation of the mattress
tilt mechanism knobs (U).
Yes No
↓→Go to RAP 2.29 on page 2-90.
19.Perform the following to check the mattress tray (V) operation:
a. Slide out the mattress tray (V) to the fully-extended position.
b. Gradually load a calibrated weight of 22 lb (10 kg) near the front-
center of the extended mattress tray (V).
The mattress tray (V) is a firm platform for an infant.
Yes No
↓→Go to RAP 2.30 on page 2-92.
