Dräger Isolette C2000 Service Manual

Function Checks
Chapter 2: Troubleshooting Procedures
Page 2 - 14 Isolette® Infant Incubator (Model C2000) Service Manual

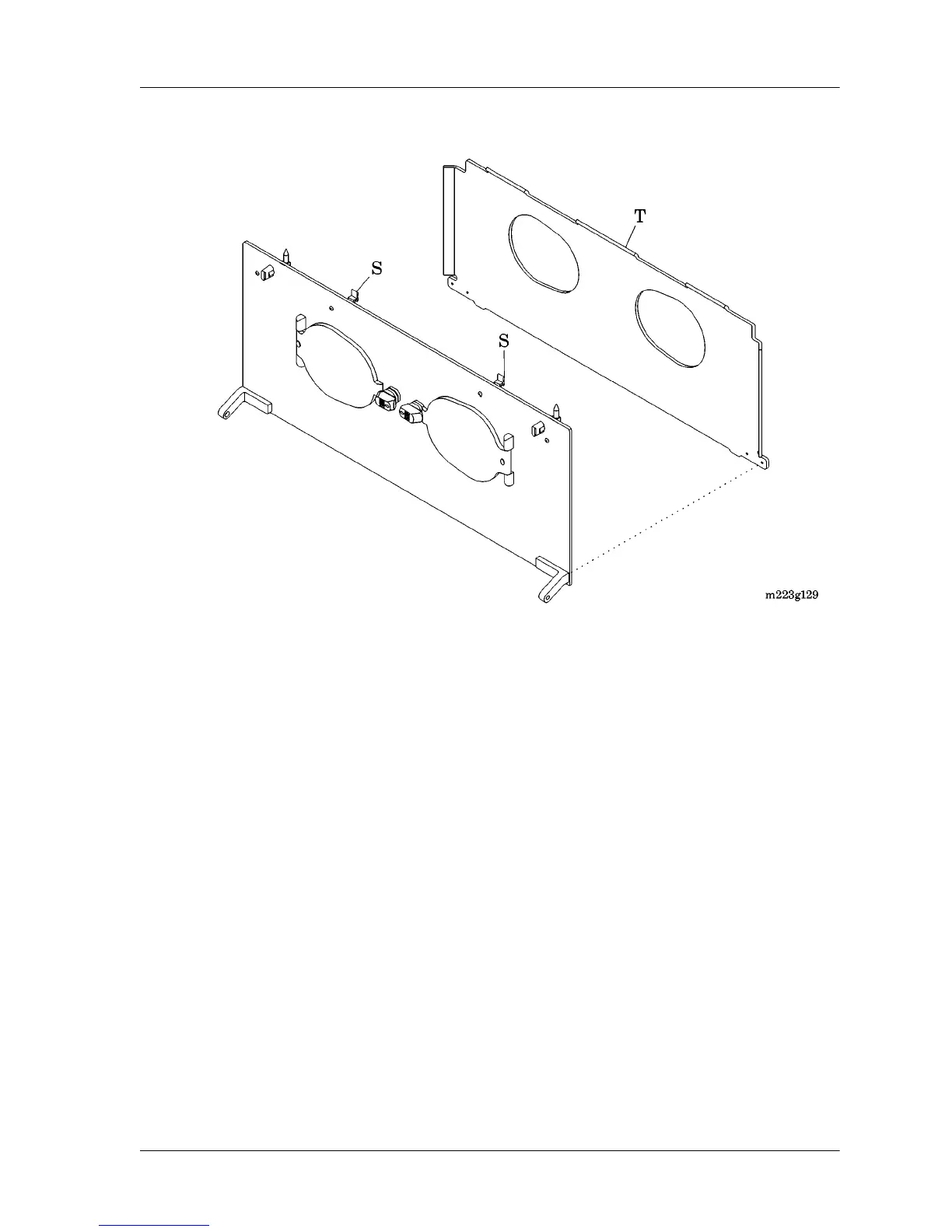

Figure 2-4. Heat Shield
The heat shield latches (S) properly secure the heat shield (T).
Yes No
↓→Go to RAP 2.28 on page 2-88.
18.Perform the following to check the operation of the mattress tilt
mechanisms:
a. Check the mattress elevators by rotating the right-hand mattress
tilt mechanism knob (U) counterclockwise until it stops and the
right end of the mattress tray (V) is at a 12 angle (see figure 2-
5 on page 2-15).
