ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
3-24 Section 3-4 - Preparing for Installation
PRELIMINARY
3-4-4 System Voltage Confirmation
3-4-4-1 System Voltage Settings
Verify that the Vivid S5 N or Vivid S6 N ultrasound scanner is set to the correct voltage.
The voltage settings are found on the system rear cover.

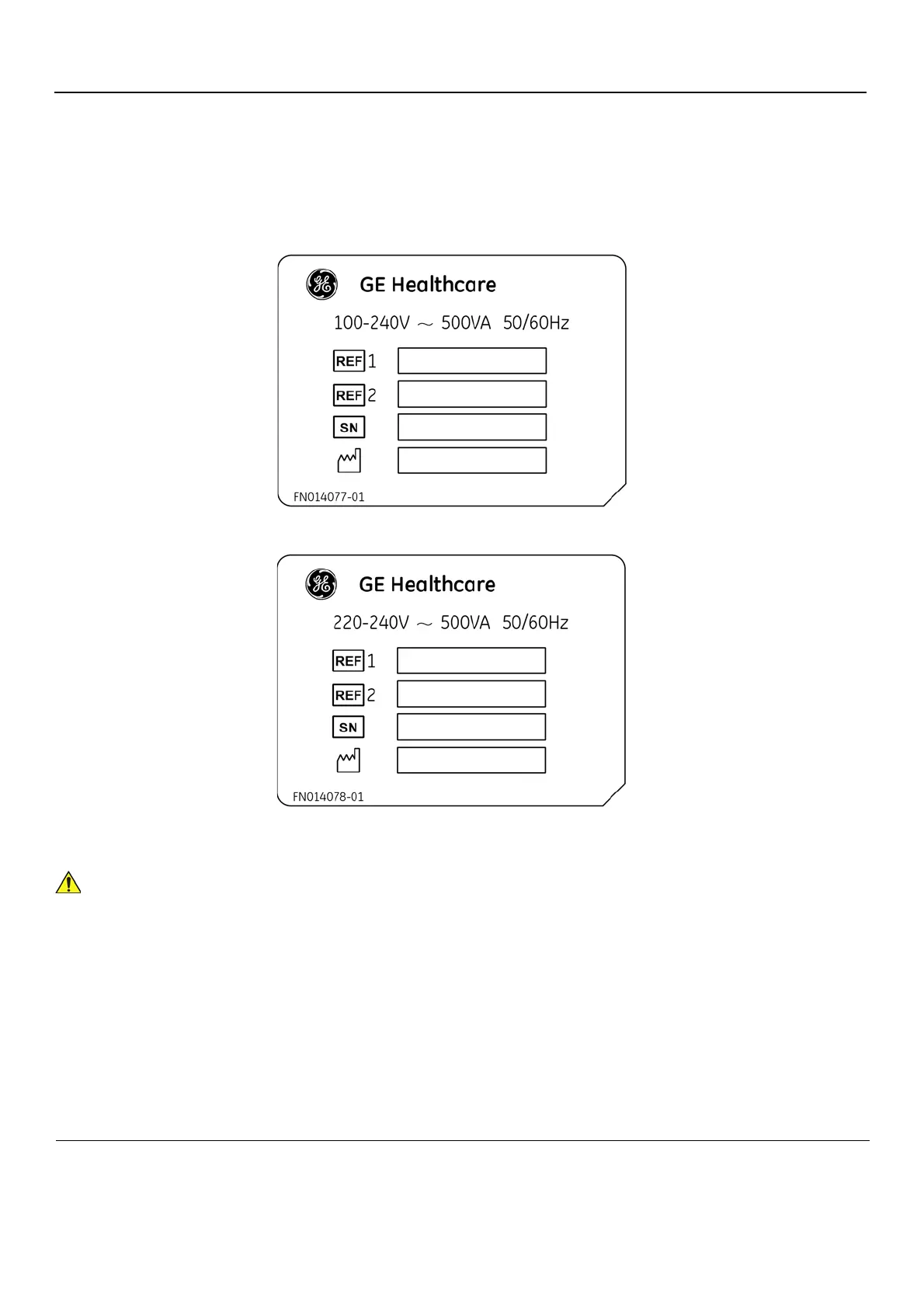

Figure 3-19 Safety Rating Plate - Examples
CONNECTING THE UNIT TO THE WRONG VOLTAGE LEVEL WILL MOST LIKELY
DESTROY THE SCANNER.
Systems with Type-B Power Supply:
Systems with Type-A Power Supply:
