GE
P
ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
3-68 Section 3-4 - Preparing for Installation
PRELIMINARY
The External USB Hard Disk can be connected to either of the USB ports (upper or lower) on the rear
connectors panel.
One must use the additional power source (supplied with the External USB Hard Disk) to activate the
External USB Hard Disk.
Refer to the External USB Hard Disk Installation Procedure section, page 8-243 for instructions on initial
configuration and connecting the External USB Hard Disk to the Vivid S5 N or Vivid S6 N scanner.
3-5-2-4 USB Memory Stick
The USB Memory Stick may be connected to either of the USB ports on the keyboard, or on the
rear connectors panel.
The USB Memory Stick can be connected once the system is powered ON, or after shutdown. All
software drivers for the USB Memory Stick are pre-installed on the system. The system is capable
of detecting and working with other types of memory sticks. However, it is highly recommended to
use the memory stick that is provided and approved by GE HEALTHCARE. Other memory sticks
may be sensitive to EMC interference (this may affect system performance and/or image quality) or
may not be recognized by the system.
3-5-2-5 Footswitch
The Footswitch (optional) may be connected to either of the USB ports on the keyboard.
NOTE: After connecting the Footswitch to the system, define the required functionality settings, as follows:
1.) Press Config to access the Configuration screen.
DO NOT ATTEMPT TO USE A DIFFERENT TYPE OF MASS STORAGE DEVICE OTHER
THAN THE EXTERNAL USB HARD DISK SUPPLIED WITH THE SYSTEM.
THE ULTRASOUND SYSTEM IS AN EXTREMELY SENSITIVE AND COMPLEX MEDICAL
SYSTEM.
ANY UNAUTHORIZED PERIPHERALS MAY CAUSE SYSTEM FAILURE OR DAMAGE!
IMPORTANT During Stand-by mode, it is NOT recommended to introduce or remove USB
devices; this may cause the system to lock-up during the boot-up procedure.
IMPORTANT During Stand-by mode, it is NOT recommended to introduce or remove USB
devices; this may cause the system to lock-up during the boot-up procedure.

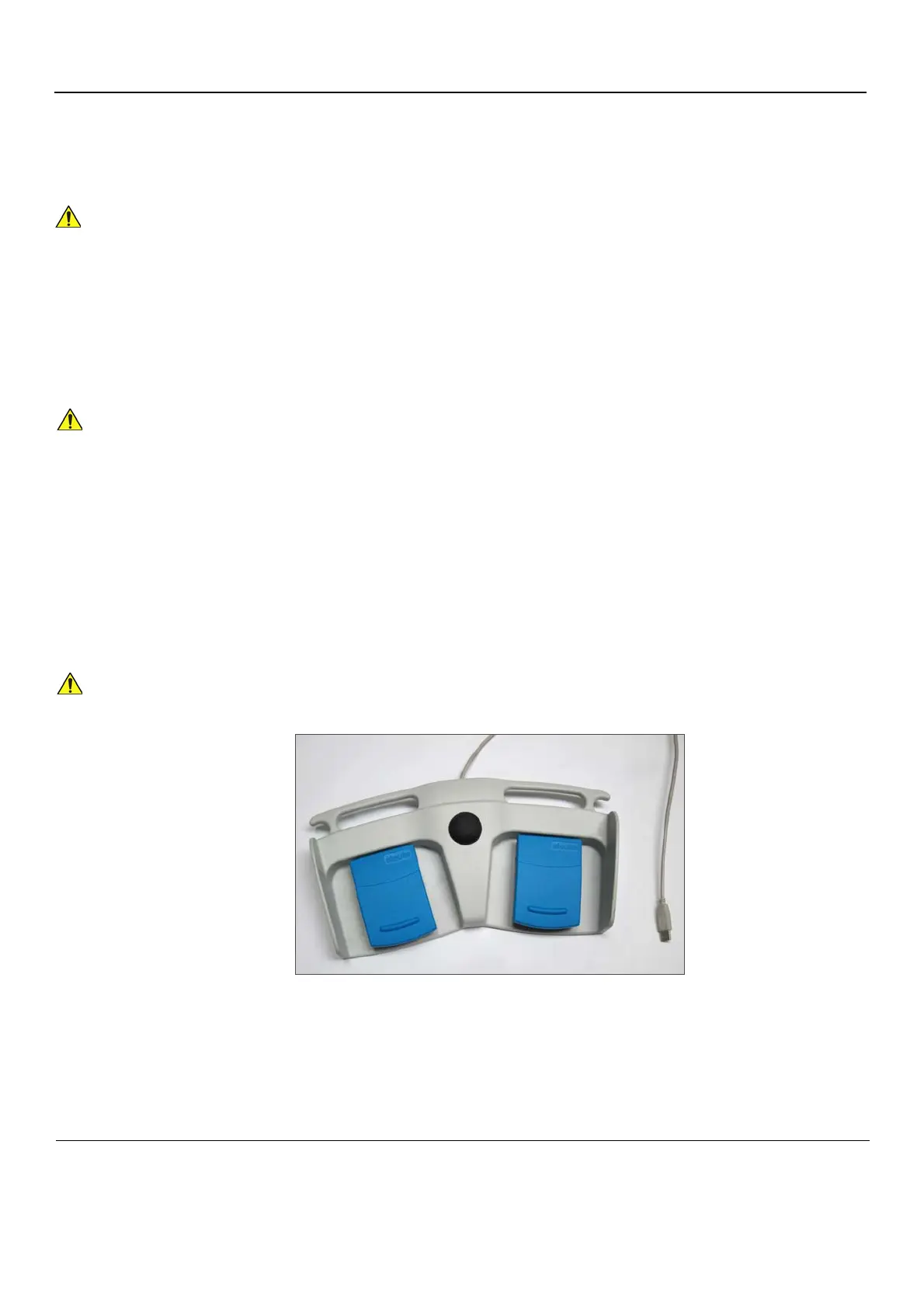

Figure 3-80 Footswitch
