ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
7-124 Section 7-6 - Performing Back End Diagnostics on the System
PRELIMINARY
7-6-1 Accessing the Back End Diagnostic Test Options (cont’d)
7-6-1-1-5 Memory Test
NOTE: For a description of these tests, refer to the information in - "Memory Test" on page 7-18.
1.) In the Diagnostic Test window, trackball to Full Memory Test in the list of Memory tests available for
selection from the Diagnostic Test Tree (see Figure 7-85 "Full Memory Test" on page 7-124) and
press Set. The Test name is displayed under Execute; the relevant system components to be tested
are highlighted light blue in the Schematic View (BEP, Peripherals, Keyboard), as shown below:
2.) Under the Special Instructions area, activate the Loops checkbox
and select the required number of Loops from the combo box.
3.) Adjacent to On Fail, select either Stop or Continue, as required.
Stopping on failure enables you to review a failed test, the moment it fails. Alternatively, you may
prefer testing to continue on failure and later you may review the report.
4.) Trackball to the Start button and press Set.
The Full Memory Test commences. While the test proceeds, the name of the test currently in
progress is displayed in the Execute field and the current Loop # and specific test are shown below.
The messages Init Done and Please Wait are displayed beside the progress bar in the Status area.
As the testing sequence progresses, the progress bar will advance to reflect the test progress.
Status indicators in the Data Flow map corresponding to the various system components will be
highlighted in the appropriate color to indicate the current test status, as follows:
• Green: All recommended tests for these components have been completed and no problems
were identified.
• Red: Problems were identified in these components during the performance of the test.

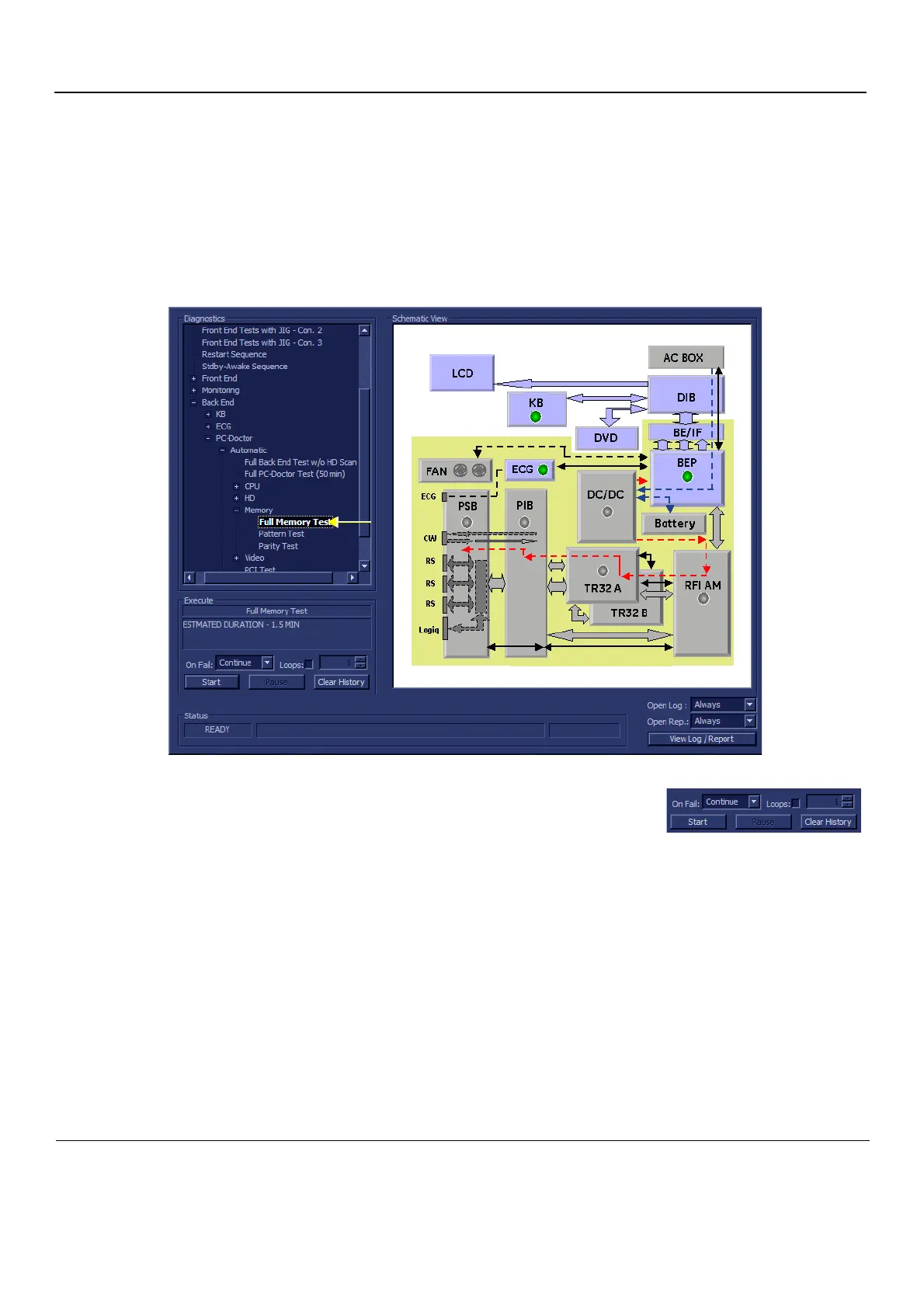

Figure 7-85 Full Memory Test
