7-3-1 Accessing the Full System Diagnostic Options
• In 2D-Mode, press <ALT +Config> on the alphanumeric keyboard. The Diagnostic Test window is
displayed, as shown in Figure 7-1 "Diagnostic Test Window" on page 7-3.
7-3-1-1 Full System Test (FE and BEP)
NOTE: For a description of this test, refer to the 7-2-4-1-1 "Full System Test (FE and BEP)" on page 7-11.
NOTE: The Full System Test (FE and BEP) performs a full sequence of complete system tests (automatically)
and requires approximately 20 minutes for completion.
1.) In the Diagnostic Test window, trackball to Full System Test (FE and BEP) in the list of tests
available for selection from the Diagnostic Test Tree (see Figure 7-6 "Full System (FE and BEP)
Test" on page 7-22) and press Set. The Full System Test (FE and BEP) name is displayed under
Execute, and all system components are highlighted blue in the Schematic View, as shown below:

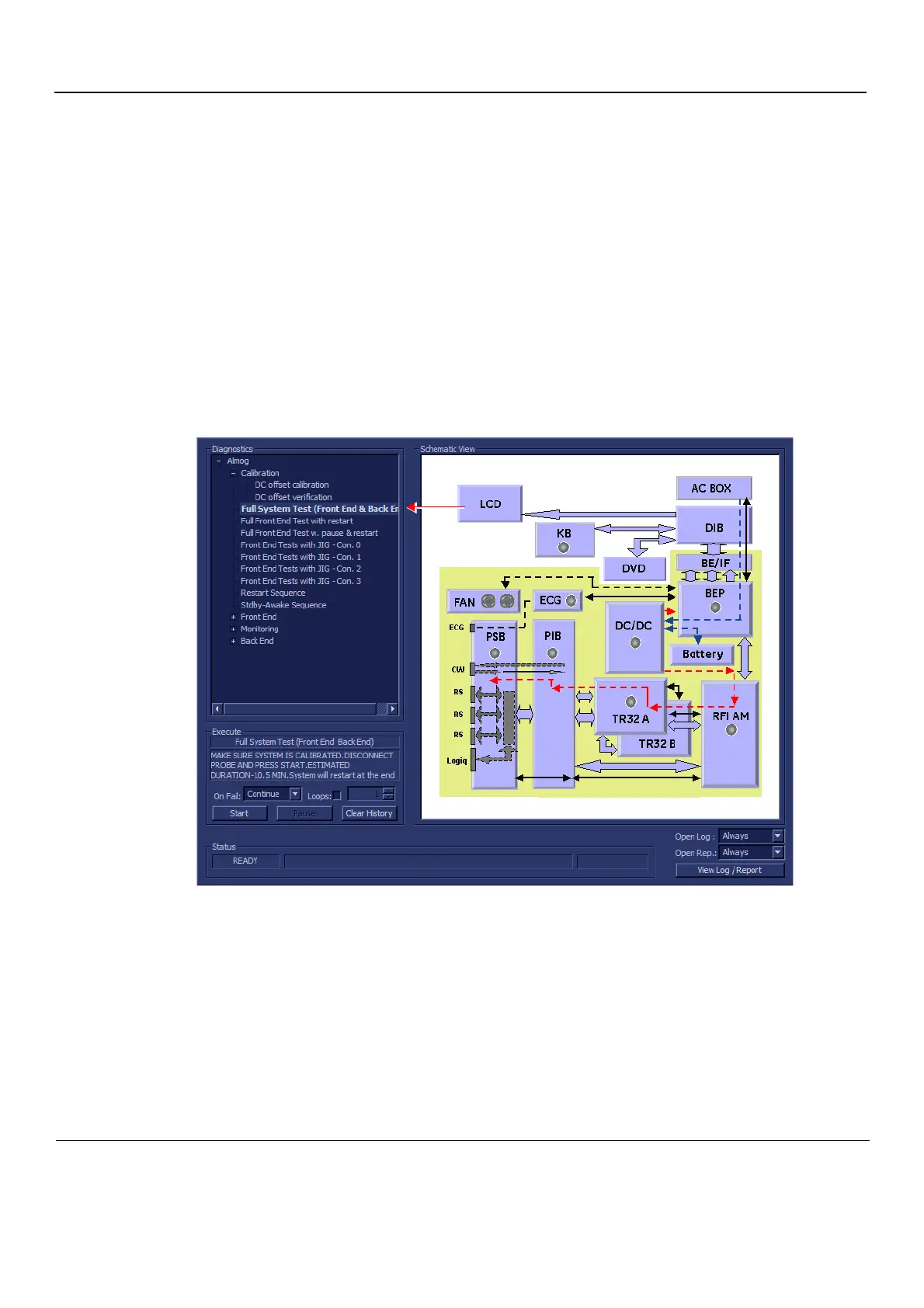

Figure 7-6 Full System (FE and BEP) Test
2.) As indicated in the Special Instructions area, make sure the system is calibrated and disconnect
any probe currently connected to the system.
