ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
Chapter 3 - System Setup 3-35
PRELIMINARY
3-5-1-2 HP470 /HP100 Color Printer
This only applies to HP 470/HP100 models which are supplied pre-installed with the appropriate
software drivers. The Color Printer can be connected to either of the USB ports (upper or lower) on the
rear connectors panel.
When connecting directly to the system it is necessary to use an additional power source. As a safety
precaution, this must be done via an isolation transformer.
The HP470/HP100 Color Printer can be connected once the system is powered ON, or after shutdown.
NOTE: After connecting the printer to the Vivid S5 N/ Vivid S6 N system, proceed to the following procedures,
as required:
• ‘Configuring Printing Buttons P1 and P2” on page 3-27
• ‘Setting Printing Orientation (Portrait or Landscape) and Paper Size” on page 3-33

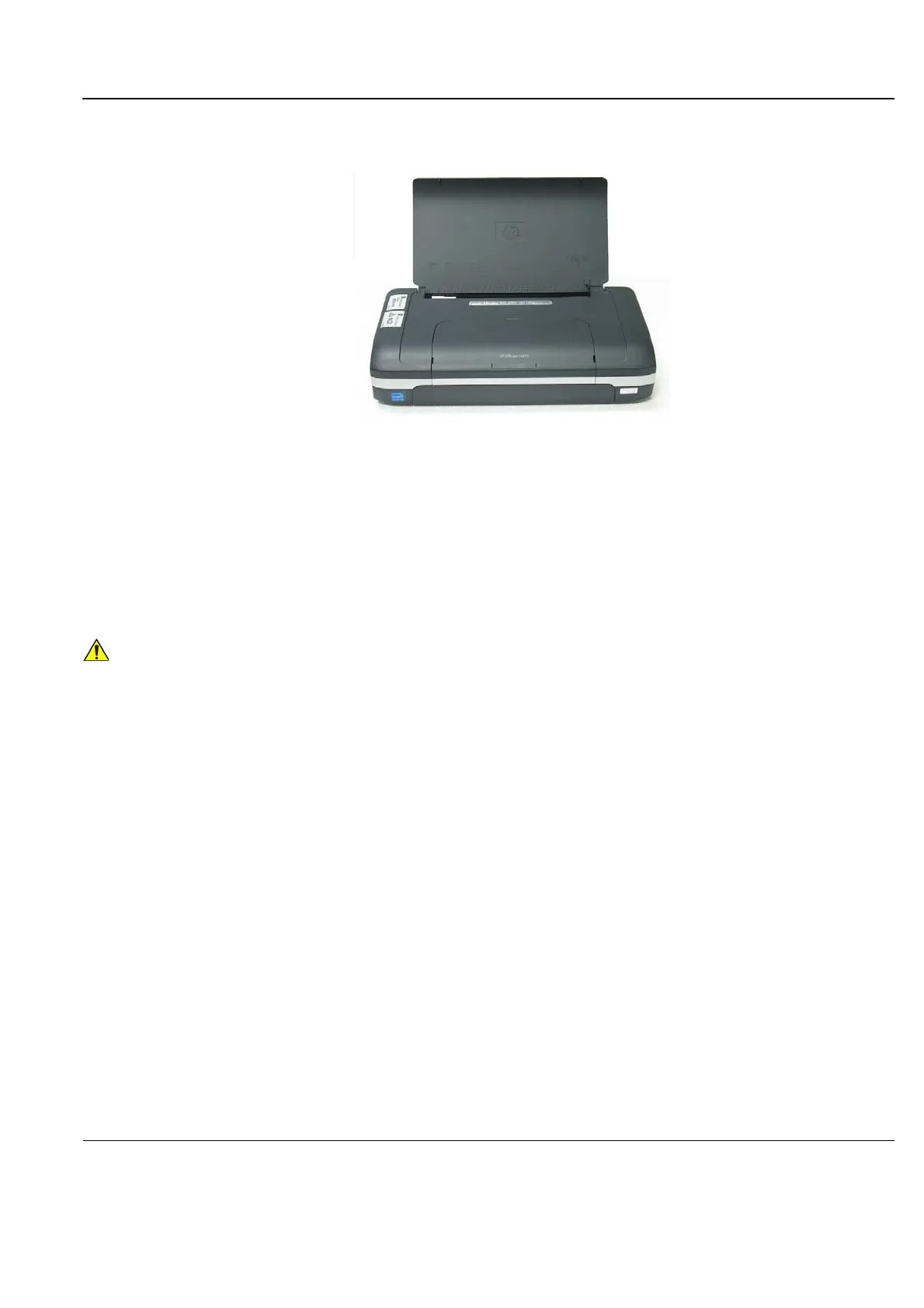

Figure 3-32 HP470 Color Printer
Do not attempt to use a different type of Color Printer (brand or model) other than the
Color Printer provided by GE. The ultrasound system is an extremely sensitive and
complex medical system. Any unauthorized peripherals may cause system failure or
damage!
