GE Vivid S6 N - 8-6-15 AC Distribution Box (Type B) Replacement Procedure; 8-6-15-1 Tools; 8-6-15-2 Preparation; 8-6-15-3 AC Distribution Box (Type B) Removal Procedure

GE
P
ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-177
PRELIMINARY
8-6-15 AC Distribution Box (Type B) Replacement Procedure
NOTE: The AC Distribution Box Type-B is a lightweight unit, supporting AC power input of 1OOV - 240V.
The Type-B unit has the following features.
• Since it automatically supports a power range of 1OOV - 240V, it is not supplied with jumpers
(to alter the input power).
• It does not support peripheral power outlets.
• It is fitted with an On/Off power switch
(unlike a Type-A unit that has a circuit breaker switch).
In place of a circuit breaker switch, the Type-B unit is fitted with two fuses:
• The unit does not contain a fan.
NOTE: The procedure below applies to replacement of an AC Distribution Box Type-B with a new
AC Distribution Box Type-B.
8-6-15-1 Tools
Use the appropriate flat and Phillips-type screwdrivers as indicated in the AC Distribution Box
replacement procedure.
8-6-15-2 Preparation
Shut down the Vivid S5 N or Vivid S6 N ultrasound unit, as described in 4-2-3 "Power Shut Down" on
page 4-7.
8-6-15-3 AC Distribution Box (Type B) Removal Procedure
1.) Remove the bottom rear cover from the system, as described in “Bottom Rear Cover Removal
Procedure” on page 8-23.
2.) Remove the bottom rear cover from the system, as described in “Bottom Rear Cover Removal
Procedure” on page 8-23.

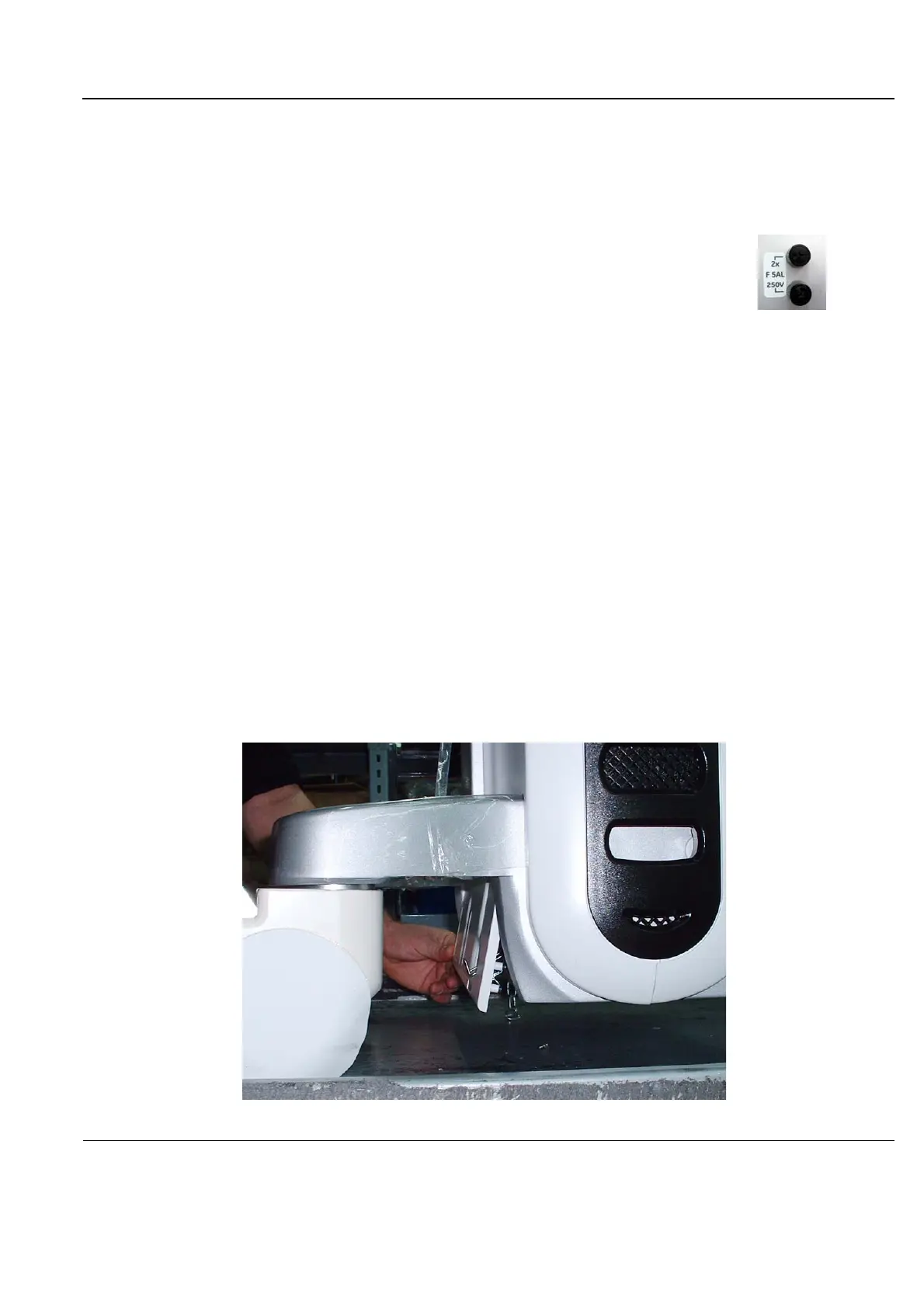

As shown in Figure 8-222 below, pull the protective cover outwards and downwards to reveal the
AC Input Box assembly - refer to Figure 8-223.
Figure 8-222 Bottom Rear Cover - View from Side
