8-2 Section 8-2 - Cover Replacement Procedures
PRELIMINARY
Section 8-2
Cover Replacement Procedures
8-2-1 Overview of Covers

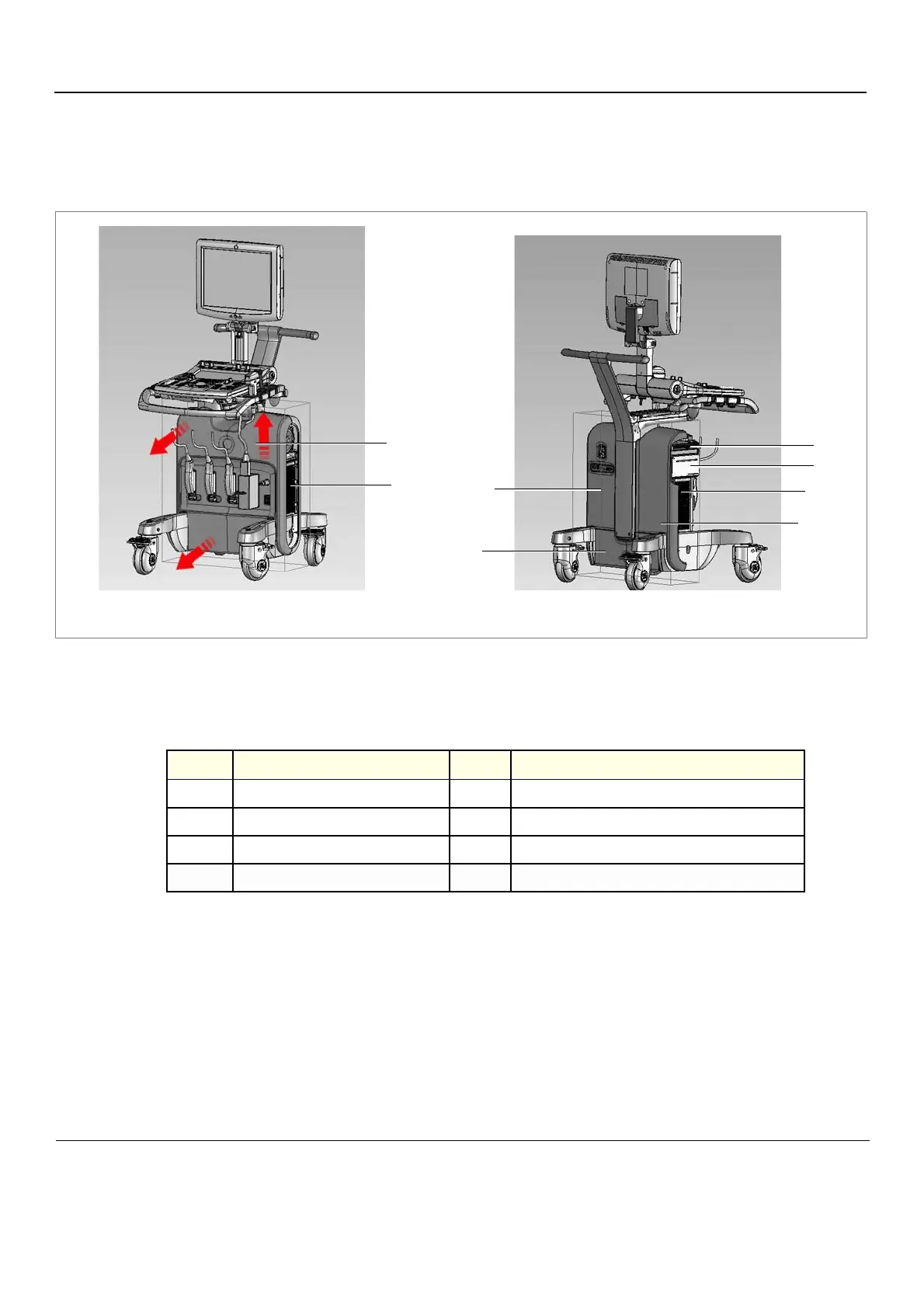

Figure 8-1 Vivid™ S5 N and Vivid™ S6 N Ultrasound Units
Table 8-1 Vivid™ S5 N and Vivid™ S6 N Ultrasound Unit Covers (Figure 8-1)
Label Item Label Item
1 Left Side Cover 5 Right Rear Cover
2 Right Side Cover 6 Bottom Rear Cover
3 Front Cover 7 DVD Cover
4 Left Rear Cover 8 Black and White Printer
Front View
Rear View
3
1
6
4
7
2
5
8
