GE
P
ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
8-56 Section 8-3 - Control Console Components Replacement Procedures
PRELIMINARY
8-3-8 Rear Handle Replacement Procedure
8-3-8-1 Tools
• Appropriate cutting knife for cutting perspex as shown in Figure 8-70.
• RTV 102 Silicone Sealant, P/N USFS-43
8-3-8-2 Preparation
Shut down the Vivid S5 N or Vivid S6 N ultrasound unit, as described in 4-2-3 "Power Shut Down" on
page 4-7.
8-3-8-3 Rear Handle Removal Procedure
There are two types of rear handle removal procedure, as follows:
• On older-type Vivid S5 N or Vivid S6 N systems, the rear handles are glued to the aluminium
bars and have to be cut and peeled off the aluminium bars to remove them.
Refer to the instructions in Removing Handles Glued in Position.
• On newer Vivid S5 N or Vivid S6 N systems, the rear handles are secured with a mounting
screw (see Figure 8-72). In this instance, the screw is released and the handle slides off the
aluminium bar.
Refer to the instructions in Removing Handles Secured with Mounting Screws.

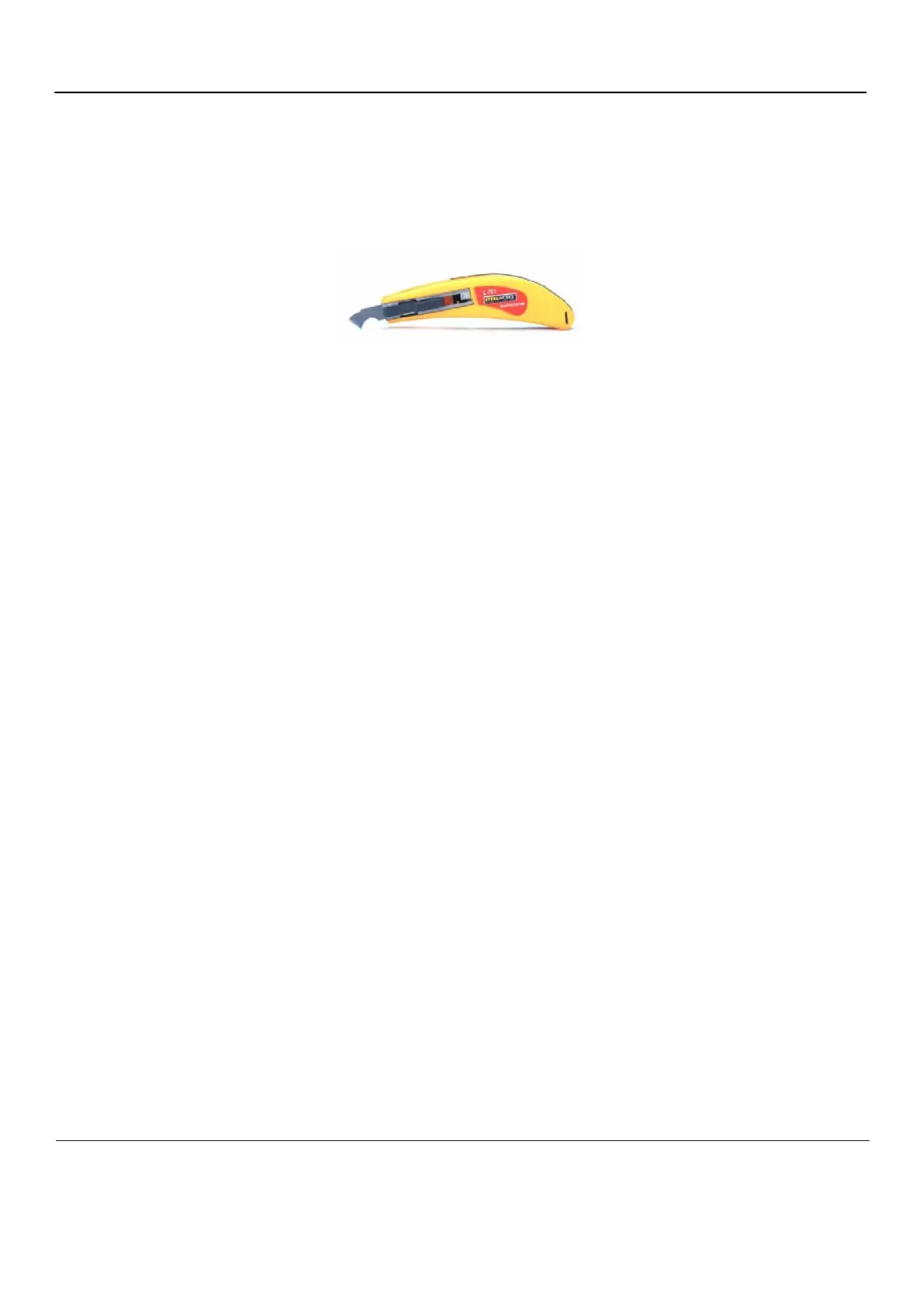

Figure 8-70 Cutting Knife with Pointed Protruding Edge
