6-1-2-5-1 Adjusting the Blue Tint
1.) On the console, press the LCD button and then point the cursor to the Test Pattern soft-key on the
screen (Figure 6-7) and click to display the test pattern - see Figure 6-8. .
NOTE: The default blue tint test pattern is set at two bars - see Figure 6-8.
2.) Adjust the blue tint by rotating the right-most rotary knob on the console.
NOTE: The blue tint can also be adjusted by pointing the cursor to the “Bluetint” soft-key button on the
screen and then right click. Click the right-hand side of the button to increase the blue tint.
3.) When done, press Alt Q to exit to the Display Calibration Screen.

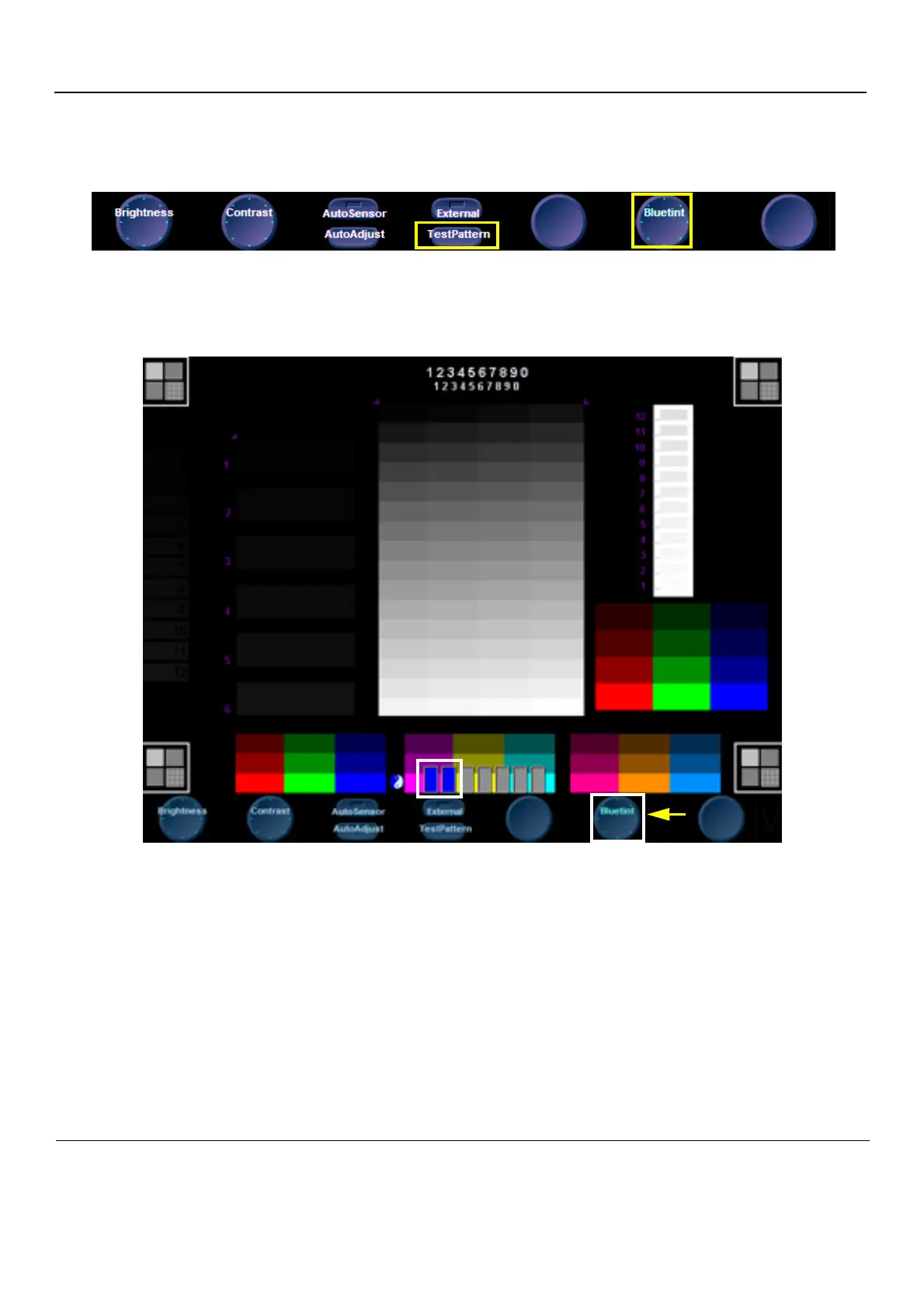

Figure 6-7 Soft-Key Buttons
Figure 6-8 LCD Display Calibration Screen showing Test Pattern
