8-9-1 Wireless USB Network Adaptor Replacement Procedure (cont’d)
8-9-1-5 Wireless USB Network Adaptor Installation Procedure
1.) Place the Wireless USB Network Adaptor against the rear of the system with the velcro facing
towards the scanner and the attached cable (secured with cable ties) positioned above the adaptor,
as shown in Figure 8-268.
2.) Push the adaptor firmly against the rear panel making sure it is properly secured in position with the
velcro tape.
3.) Re-connect the USB connector to the USB port - Figure 8-268.
NOTE: For configuration instructions, see “Wireless Network Configuration” on page 3-105.
4.) Proceed to perform the following functionality tests:
- “Grounding Continuity” on page 10-23
- “Chassis Current Leakage Test” on page 10-24

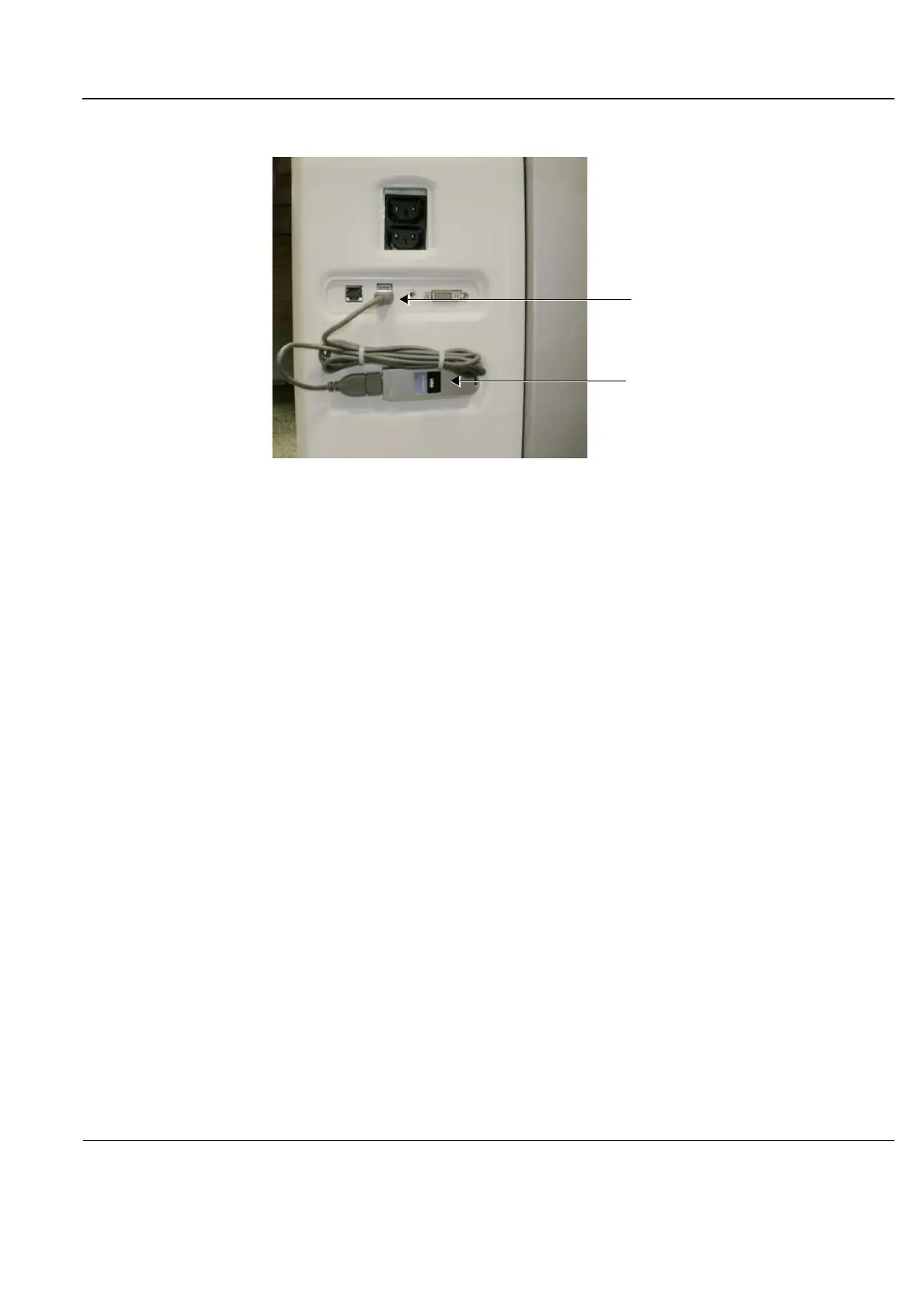

Figure 8-268 Wireless USB Network Adaptor Connected to Rear of Scanner
USB Connector
Wireless Network Adaptor
