ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
3-46 Section 3-4 - Preparing for Installation
PRELIMINARY
3.) Switch on the printer, insert a few sheets of appropriate printing paper and press the left-most
button on the printer’s panel - see Figure 3-48.
After some delay the printer’s IP address is printed, as shown in the example in Figure 3-49.
Keep this information as it is required during the installation procedure.
Procedure
1.) Using a service dongle. boot up the system in maintenance mode and exit to Windows Desktop.
2.) Click Start, point to Settings, and select Printers and Faxes.
The Printers and Faxes screen opens - Figure 3-50.

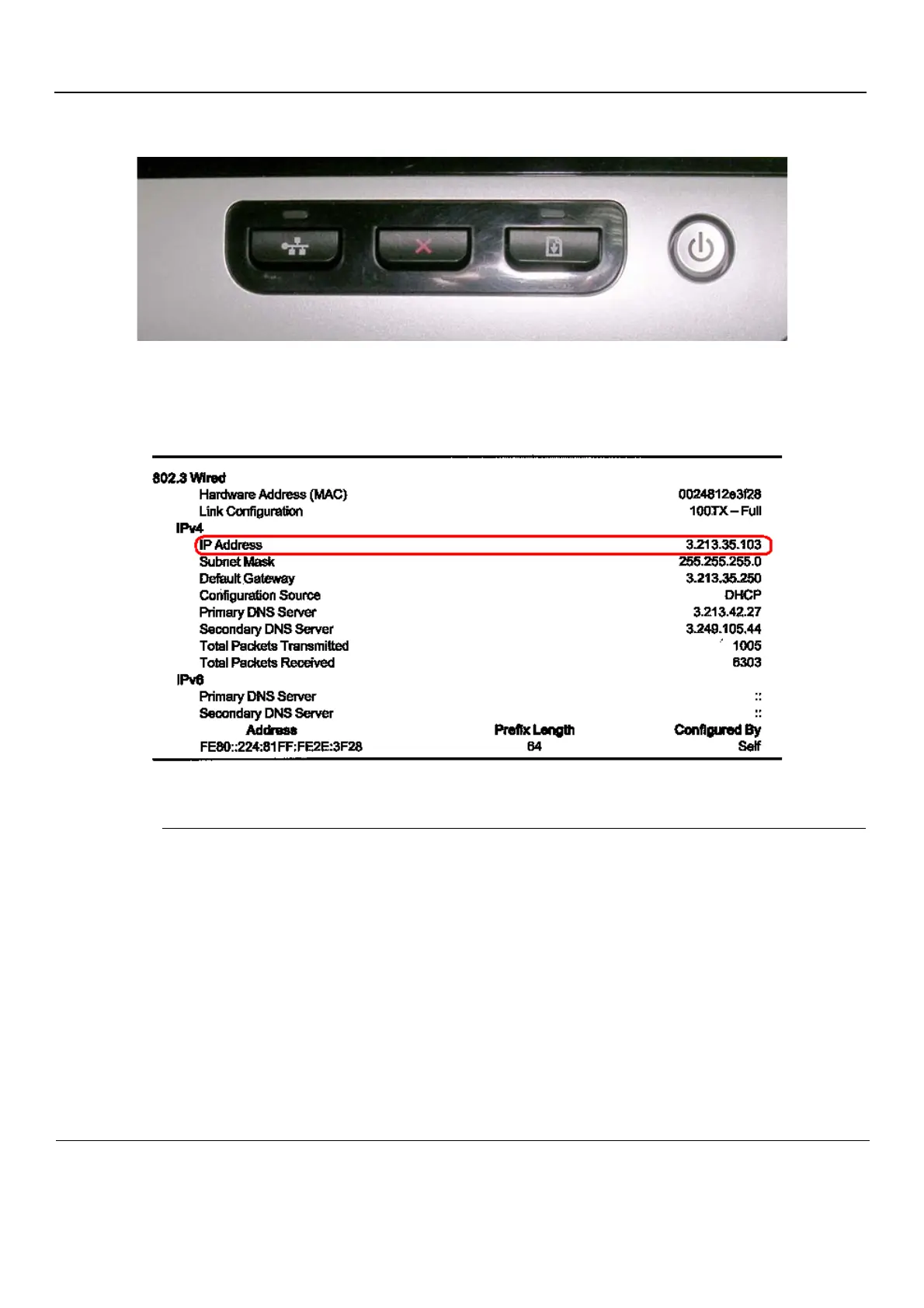

Figure 3-48 Printer Switch Panel
Figure 3-49 Example IP Address
