Section 8-4
Keyboard Assembly Replacement Procedures
8-4-1 Keyboard Bottom Cover Replacement Procedure
8-4-1-1 Tools
Use the appropriate screwdriver, as indicated in the Keyboard Bottom Cover replacement procedure.
8-4-1-2 Preparation
Shut down the Vivid S5 N or Vivid S6 N ultrasound unit, as described in 4-2-3 "Power Shut Down" on
page 4-7.
8-4-1-3 Keyboard Bottom Cover Removal Procedure
1.) Remove the Keyboard Assembly, as described in the “Keyboard Assembly Removal Procedure” on
page 8-39.
2.) Carefully place the Keyboard Assembly upside-down on a flat, clean, stable surface.
3.) Loosen and remove the 8 Phillips screws that secure the bottom cover in place - see Figure 8-73
NOTICE
When performing these procedures, take precautions to avoid damage of
electrostatic-sensitive components. Always have the ESD wrist strap
connected either to the DIB chassis or to the GND plug at the rear of the
scanner, and to your hand.
If a battery is present, first remove the battery as it contains stored energy.
Refer to “Battery Removal Procedure” on page 8-116.

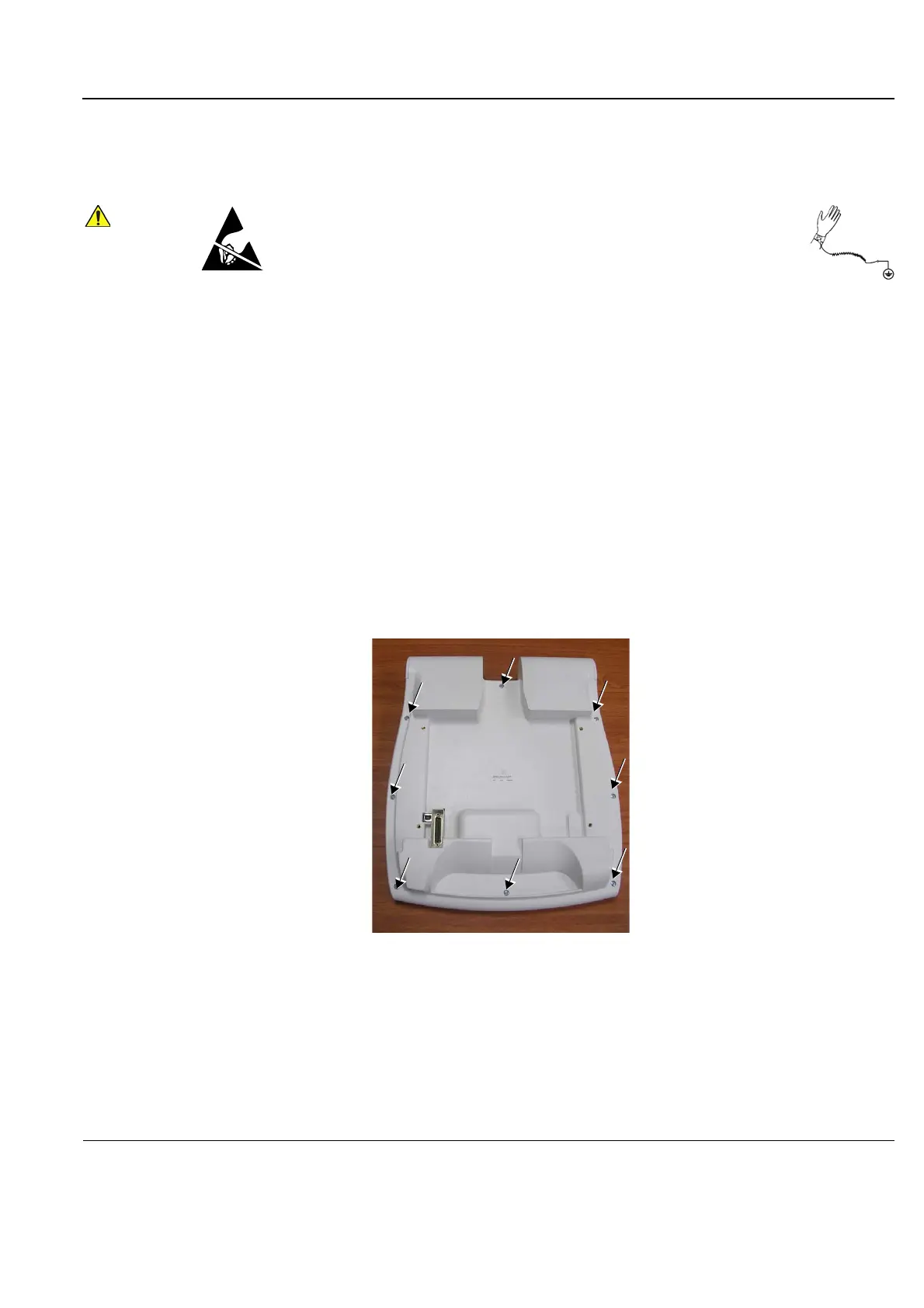

Figure 8-73 Keyboard Bottom Cover Securing Screws
