8-3-2 Monitor Arm Replacement Procedure
8-3-2-1 Tools
Use the appropriate flat and Phillips type screwdrivers and the appropriate Allen keys.
8-3-2-2 Preparation
Shut down the Vivid S5 N or Vivid S6 N ultrasound unit, as described in 4-2-3 "Power Shut Down" on
page 4-7.
8-3-2-3 Monitor Arm Replacement Procedure
1) Remove the Monitor as described in the “Monitor Removal Procedure” on page 8-26.
2) Remove the Keyboard Assembly as described in the “Keyboard Assembly Removal Procedure” on
page 8-39.
Note: Figure 8-33 below shows the general context of the Monitor Arm and work area.

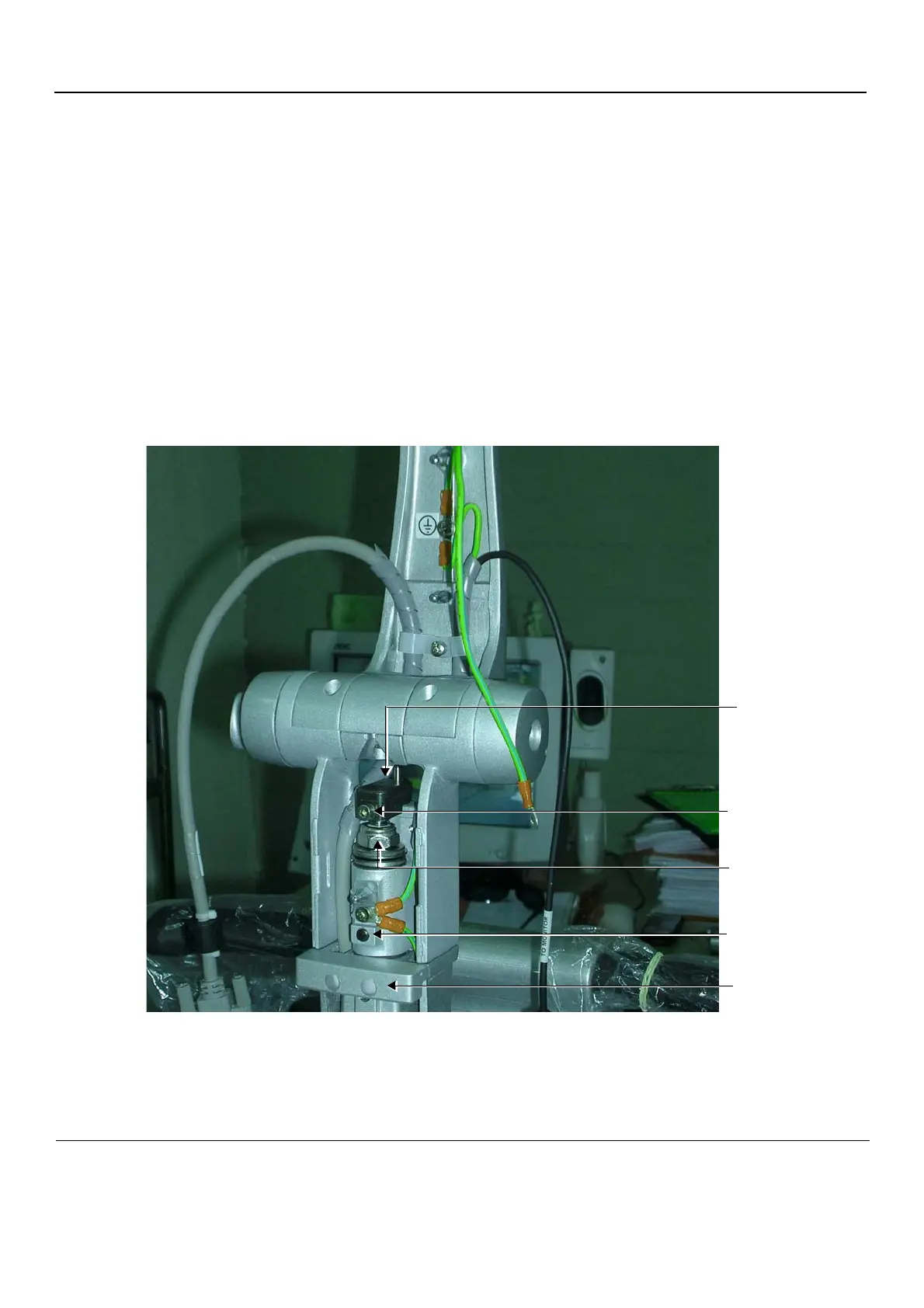

Figure 8-33 Monitor Arm and Work Area
Lower Roller-screw
Alignment Block
Roller-screw in
Alignment Block
Monitor Arm
Locking Bolt
Lower Cable Bracket
