Chapter 8 - Replacement Procedures 8-63
PRELIMINARY
8-4-2-4 Upper Arm Installation Procedure
NOTE: Before installing the Upper Arm, care must be taken when restoring the cables to the Upper Arm
assembly. The cables must protrude on either side of the Upper Arm in a specified manner as described
below. Also, the cable length on either side of the Upper Arm is specific for the Vivid S5 N and Vivid S6
N system, respectively.
Cable Length Instructions - Vivid S5 N Systems
• In the direction of the DIB
: both the DVI and the Power Monitor-to-Distribution cables protrude
42 cm beyond the end of the Upper Arm - refer to Figure 8-78.
• In the direction of the LCD
: the Keyboard Data-to-Distribution cable protrudes 27.5 cm
(Figure 8-77); the USB Keyboard-to-Distribution cable protrudes 21 cm (not shown).

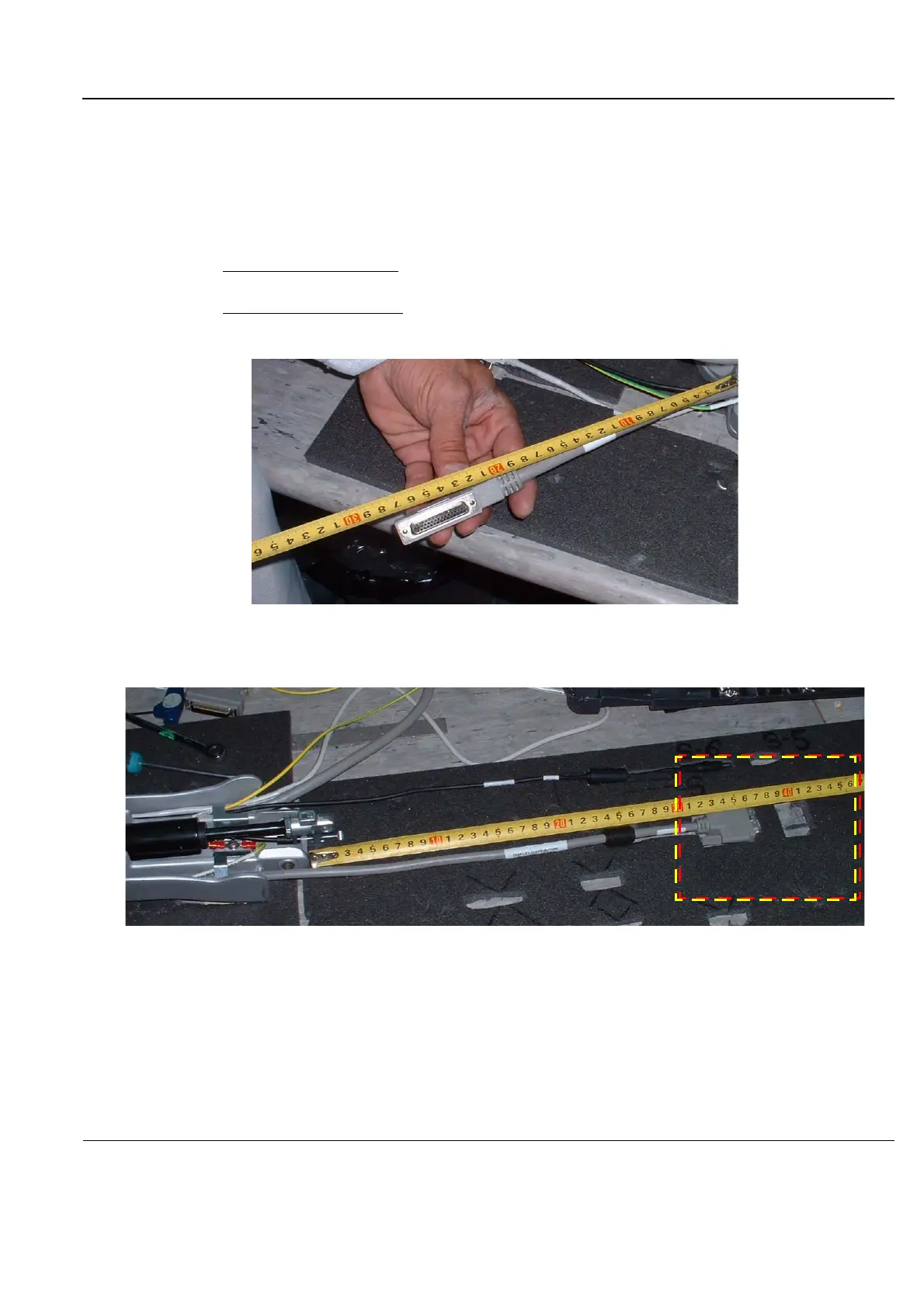

Figure 8-77 Vivid S5 N Monitor Cable Protrudes 27.5 cm from End of Upper Arm
Figure 8-78 Protrusion of Vivid S5 N and Vivid S6 N Cables (42 cm and 37 cm, respectively)
