GE Vivid S6 N - 3-5-1-1-3 Setting Printing Orientation (Portrait or Landscape) and Paper Size

GE
P
ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
Chapter 3 - System Setup 3-33
PRELIMINARY
3-5-1-1-3 Setting Printing Orientation (Portrait or Landscape) and Paper Size
To change the printing orientation and printing paper size, configure the printer as described below.
To configure printers for portrait/landscape printing, the change must be performed at the Windows
operating system level. The user first accesses the system at the Applications level from the Additional
Outputs screen. By selecting the Advanced option under Selected Devices, the user accesses the
Printer Properties dialog box and proceeds with the configuration procedure as explained below.
An additional procedure is required To configure the Sony UP-D897 Printer. This is described in
‘Configuring the Sony UP-D897 B/W Video Printer” on page 3-61.
1.) On the system console, press Config and select Connectivity.
2.) From the Additional Outputs screen under Selected Devices, select Advanced...
3.) Click Configure in the Printer Properties dialog to enter Print Setup.

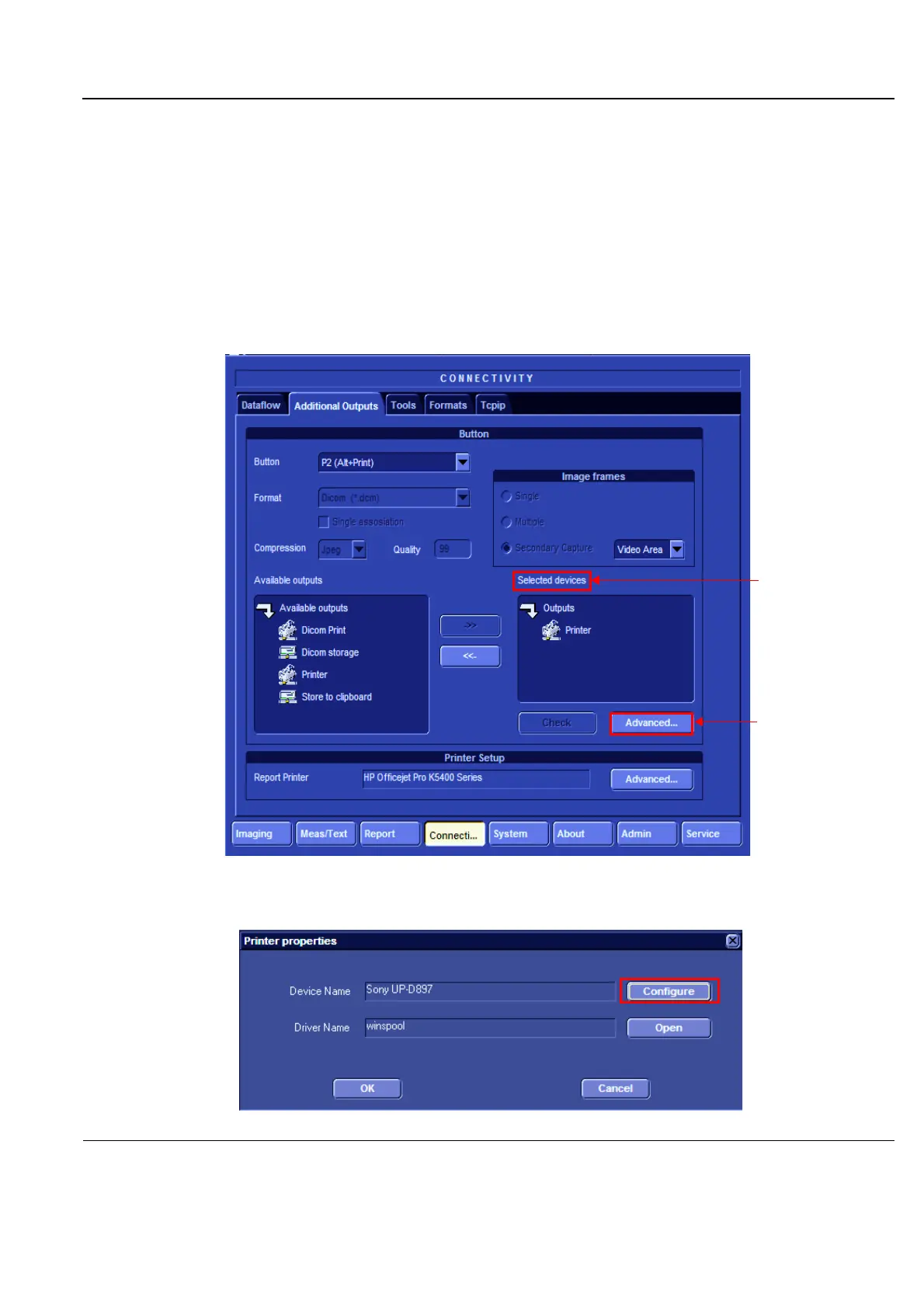

Figure 3-28 Advanced option at Windows level
Figure 3-29 Printer Properties Dialog Box
Selected Devices
Select Advanced
