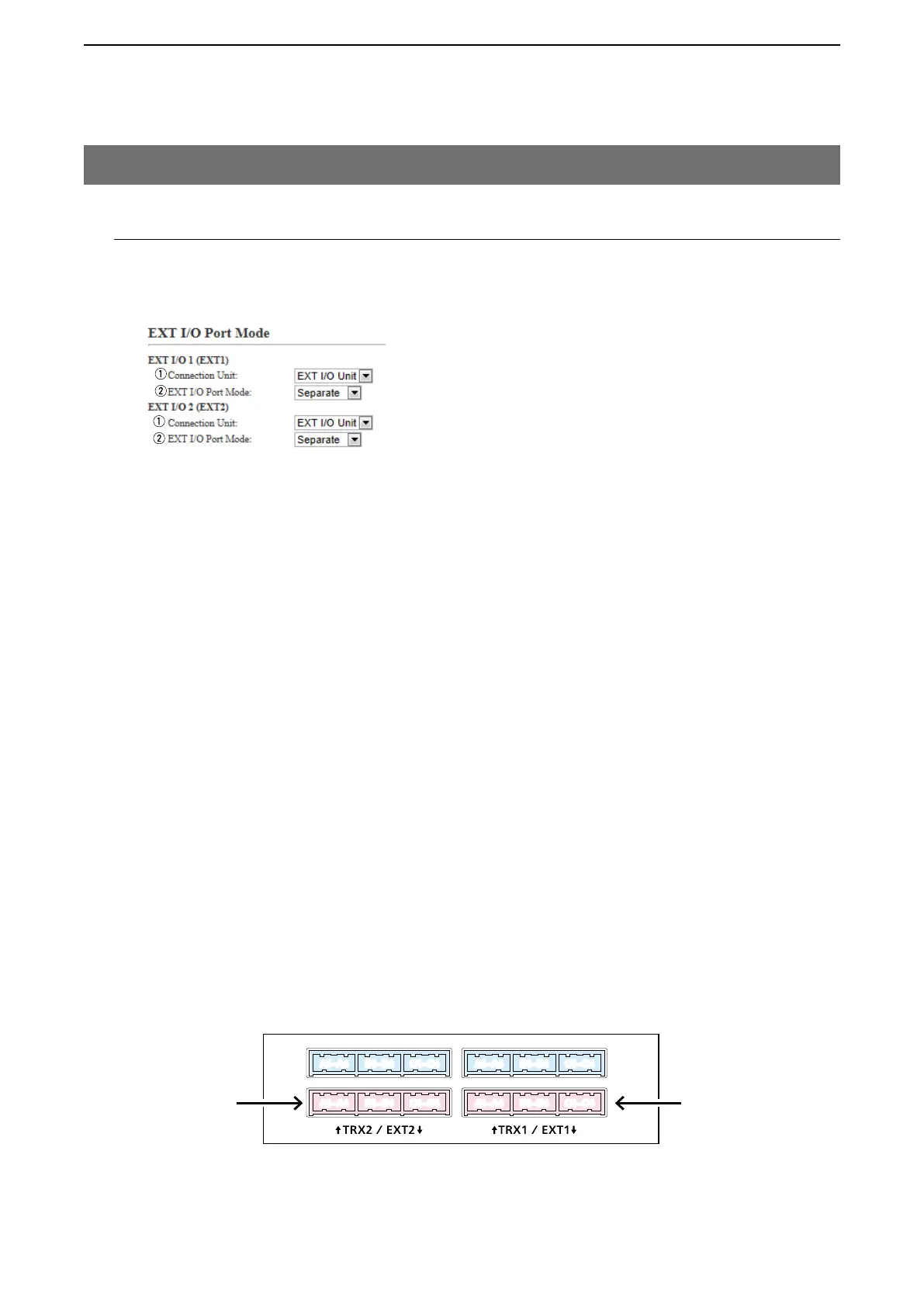

BRIDGE MODE SETTING SCREEN
5-49
6. [Operating Mode] Menu (continued)
[Operating mode]
M EXT I/O Port Mode
Select the input or output mode for each port.
• Some settings return to their default settings, when the port mode is changed.
q Connection Unit ………… Select the device to connect to the [EXT] (1/2) port, from [EXT I/O Unit] and
[Transceiver]. (Default: EXT I/O Unit)
w EXT I/O Port Mode ……… Select the Separate or Combined I/O mode. (Default: Separate)
• If Transceiver is selected in Connection Unit, this item is not displayed.
• Separate
You can separately connect 2 devices to the [EXT 1] and [EXT 2] ports.
( Connection Example: Connect the microphone to the [EXT 1] port and the
external amplifier to the [EXT 2] port.)
• Combined
You can only connect one device to one [EXT] slot.
( Connection Example: Connect the headset to the [EXT 1] and [EXT 2]
ports.)
VE-PG3 (Rear view)
• See Section 8 for port details.
A1~A4A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
[EXT1] port[EXT2] port
