CONVERTER MODE APPLICATION
3-3
1. Communication in the Peer to Peer mode (continued)

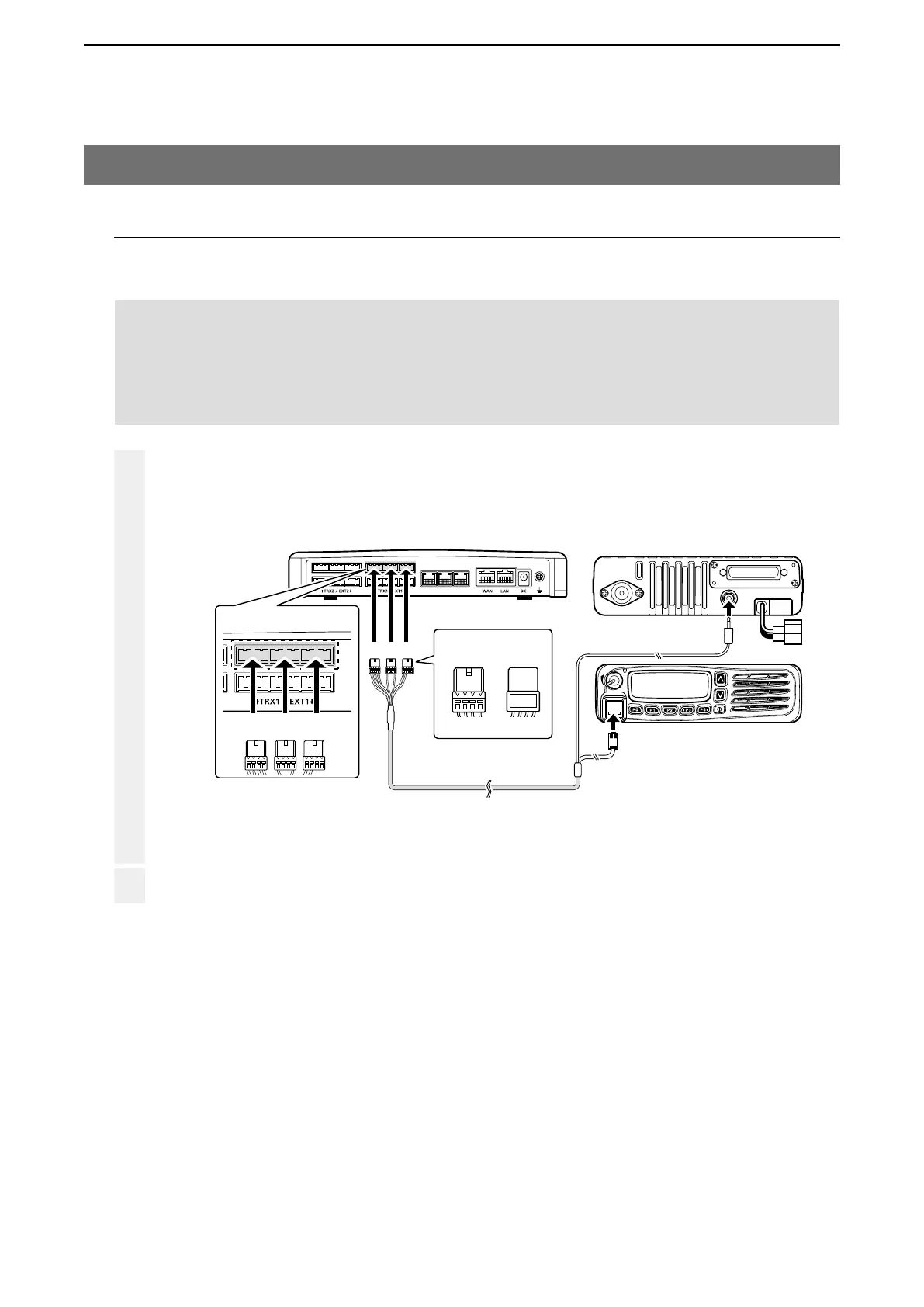

Connect the VE-PG3 and the transceiver using the OPC-2275 cable.
1
When all the connections are completed, turn ON the transceiver and VE-PG3’s power.
2
VE-PG3 (Rear view)
Icom’s transceiver
(IC-F5060/IC-F6060 series)
(Rear view)
(Front view)
To the external speaker jack
To the microphone connector
LINE2
LINE1
PHONE
• The [TRX1] and [TRX2] ports (upper slots) accept the OPC-2275 connectors.
However, follow the example to correctly connect the transceiver to ONLY the [TRX1] slot.
ABC
Be sure to insert the
connectors top side up.
Bottom
To p
A
1234
OPC-2275
AABC
To [TRX1] (Upper slot)
2. Connection
Set the transceiver channel, volume level, TX output power, and other necessary settings, before connecting to the
VE-PG3.
NOTE:
• Verify that both the radio and the VE-PG3 are turned OFF when connecting or disconnecting the transceiver.
• Keep the radio away from a PC, AC adaptor and other electronic equipment because the noise emitted from them may
interfere with the radio.
• When operating the radio, do not transmit near an IP telephone.
