CONVERTER MODE SETTING SCREEN
6-106
9. [Port Settings] Menu (continued)

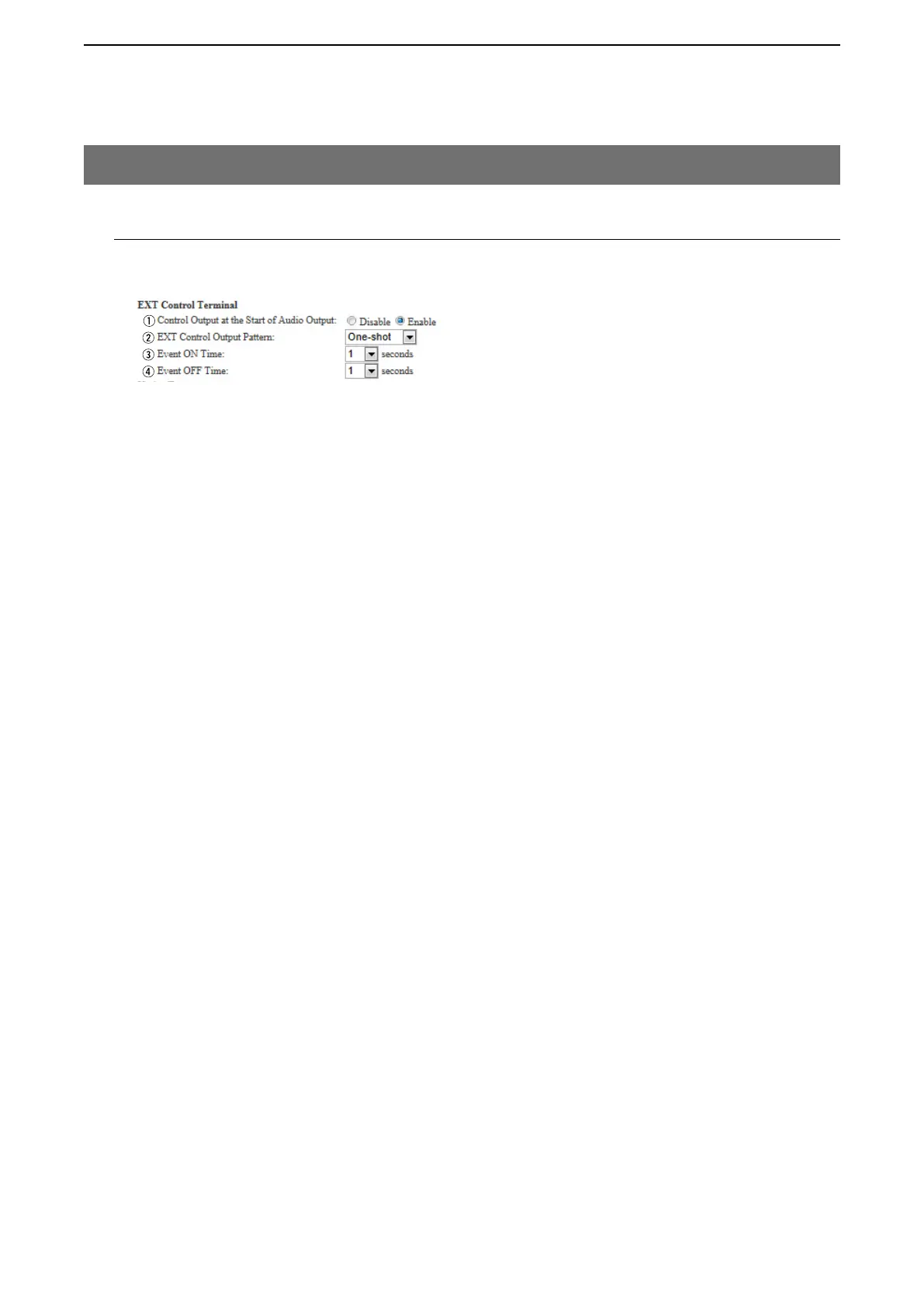

M EXT Control Terminal (EXT Output)
Set the details of the control signal from the[ EXT1]/[EXT2] port.
• These items appear when [Relay Circuit] is selected in [Control Circuit Change].
q Control Output at the Start of Audio Output
Select “Enable” to output the control signal when the audio signal is output.
(Default: Enable)
w EXT Control Output Pattern Select the control signal input condition. (Default: Momentary)
• Momentary
Connects the B1/B2 terminals (Relay circuit) only while the event is
detected.
• One-shot
Connects the B1/B2 terminals (Relay circuit) while the event is detected for
the time period set in [Event ON time] (e).
• Disconnects the terminals after the time period set in [Event OFF Time]
(r) has passed.
e Event ON Time …………… Select the delay time until the event is detected. (Default: 1)
rEvent OFF Time ………… Select the delay time until the B1/B2 terminals (Relay circuit) is disconnected.
(Default: 1)
[Port Settings]–[EXT Output 1 (EXT1)/
EXT Output 2 (EXT2)]
