BRIDGE MODE APPLICATION
2-5
2. Operation in the Unicast mode
In the Unicast mode, you can call the designated radio, using a communication port.
• In the instruction, the example of the communication as illustrated below, is used.
Area AArea B

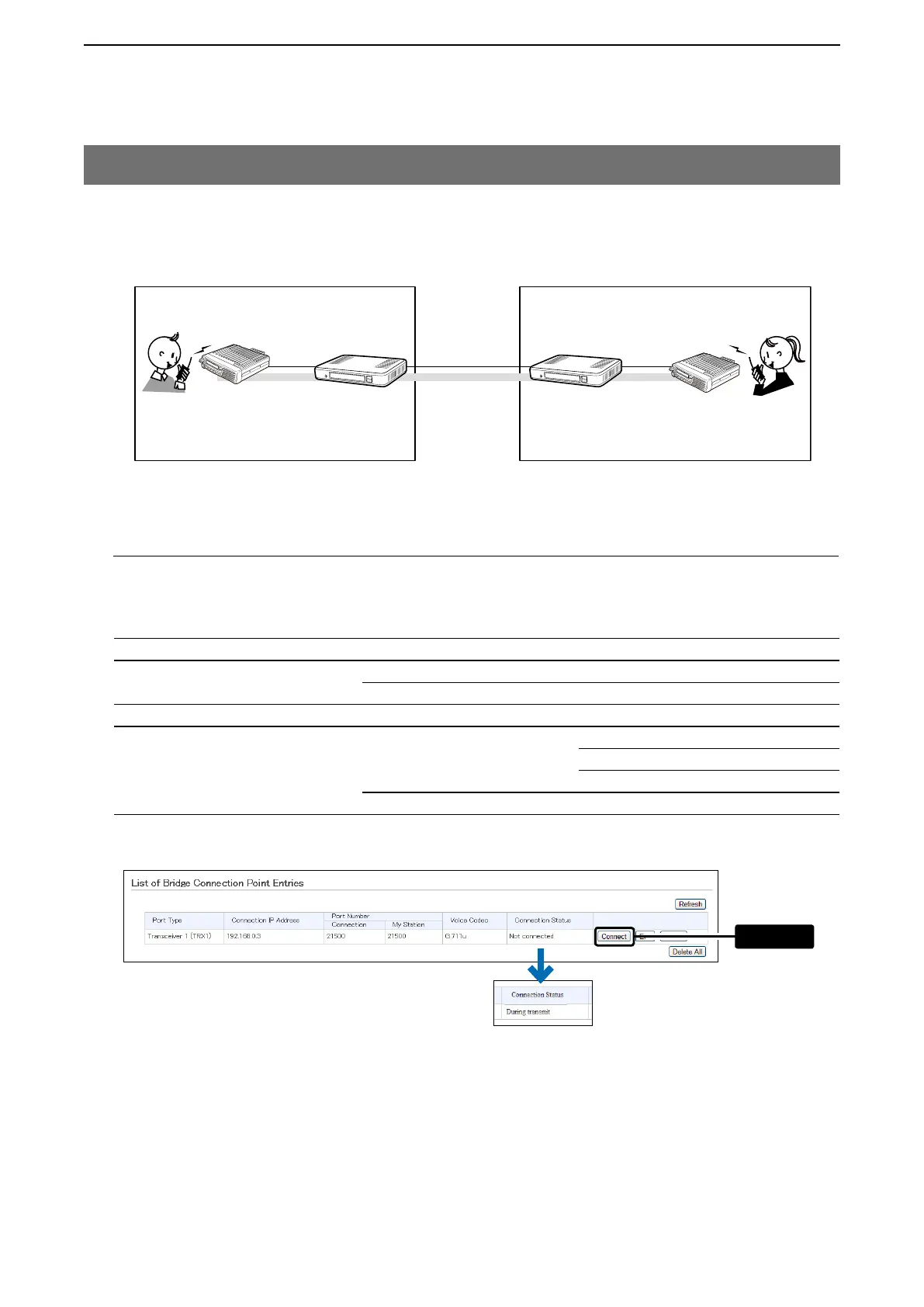

An example of communication the Unicast mode
Radio A
Radio B
Radio A1 Radio B1
VE-PG3
(192.168.0.3)
VE-PG3
(192.168.0.2)
[TRX1]
[LAN][LAN]
[TRX1]
*Enter the IP address of VE-PG3 in area A (ex. 192.168.0.2) for the VE-PG3 in area B.
**Click [Connect], and verify that "During transmit" is displayed.
Menu Item Setting Screen Setting Item Item Name Value
Operating Mode Operating Mode Operating Mode Operating Mode Bridge
IP Communication Mode IP Communication Mode Unicast
Port Settings Transceiver 1 (TRX1) Transceiver Model Transceiver Model IC-F5060
Bridge Connection Bridge Connection
Bridge Connection Point
Connection IP Address* 192.168.0.3
Connection Port Number 21500
My Station Port Number 21500
List of Bridge Connection Point Entries Connection Status** "During transmit"
VE-PG3 (Area A)
1. Configuration
Access the VE-PG3 setting screen, and set the items as shown below.
Click
