9. [Port Settings] Menu (continued)

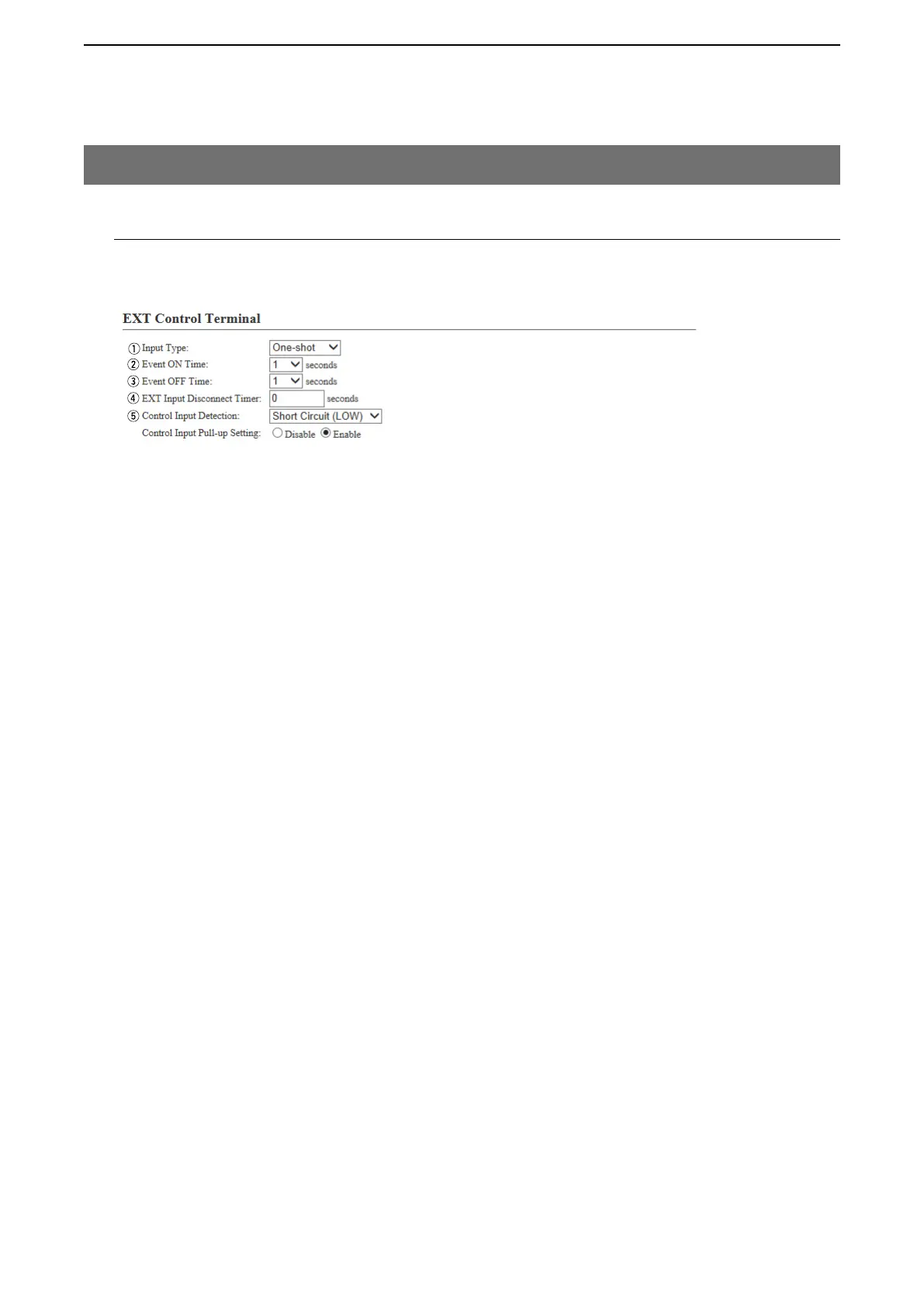

M EXT Control Terminal
Set the details of the control signal from the [EXT1]/[EXT2] port.
Note: Appears only when “Control Data Detection” is selected in [Valid Timing].
*Appears only when “One-shot” is selected in [Input Type].
q Input Type ………………… Select the when the control signal is input. (Default: Momentary)
• Momentary
While the control signal is input from the B3/B4 terminal (General control
port), activates the port.
• One-shot
When the control signal is input from the B3/B4 terminal (General control
port), continuously activates the port. And deactivates with no input.
w Event ON Time …………… Select the delay time until the input is detected.
(Default: 1)
[Port Settings]–[EXT Input 1 (EXT1)/EXT Input 2 (EXT2)]
