CONVERTER MODE APPLICATION
3-14
3. Using an external headset (continued)
3. Operation
When [PTT] on Radio A1 is pushed, or the IP phone in area B (Extension No.: 401) dials 32, the call is received by
the headset.
• All radios in the area must have same setting.
[Calling the headset from Radio A1]
q
Area A
Radio A1's operator: While holding down [PTT], say
something (example: “Test, Test, Test”) into the mi-
crophone at a normal voice level.
• The headset receives the call.
w
Area A/B
Headset operator: Turn ON the external switch, and
then speak into the headset at a normal voice level.
e
Area A/B
Headset operator: When finished the speaking, turn
OFF the external switch.
• Turn OFF switch to stand-by for another call.
[Calling the IP phone from the headset.]
q
Area A
Headset’s operator: Turn ON the external switch,
and then speak into the headset at a normal voice
level.
• The IP phone receives the call and rings.
w
Area B
Person on the IP telephone: Take the handset off the
hook to response the call.
e
Area A
Headset’s operator: When finished the speaking,
turn OFF the external switch.
• Turn OFF switch to stand-by for another call.
[Calling the headset from the IP phone.]
q
Area B
Person on the IP telephone: Take the handset off the
hook, dial 32.
• The headset receives the call.
w
Area A/B
Headset operator: Turn ON the external switch, and
then speak into the headset at a normal voice level.
e
Area A/B
Headset operator: When finished the speaking, turn
OFF the external switch.
• Turn OFF the switch to stand-by for another call.
Area AArea B

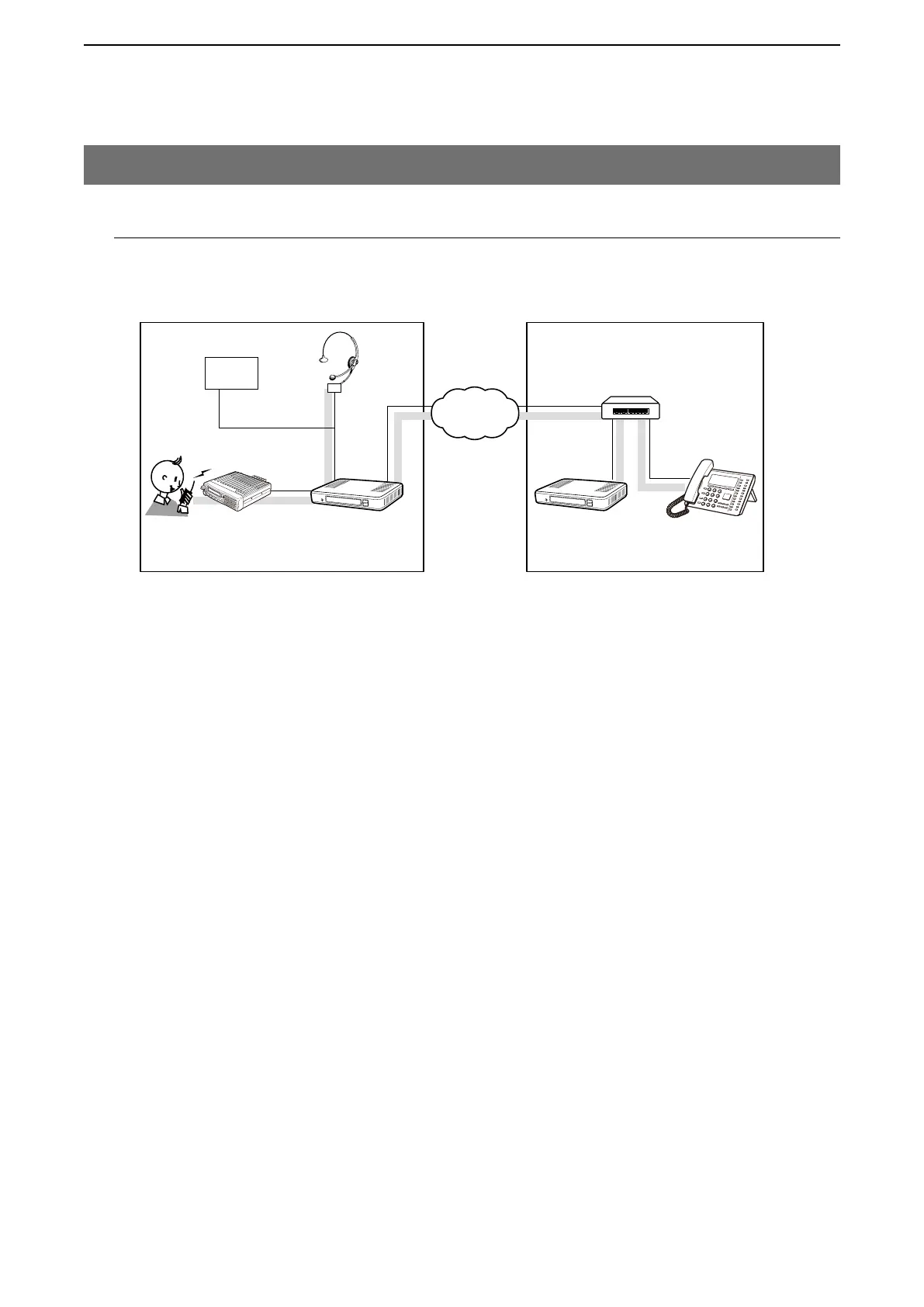

An example of using a headset
Radio A
Radio A1
VE-PG3
(192.168.0.2)
VE-PG3
(192.168.0.3)
[TRX1]
[LAN]
Extension No.
301
Extension No.
302
Extension No.
401
Audio output
(A1/A2 terminal)
Audio input
(A3/A4 terminal)
[EXT2]
IP Phone
No. 32
General Control Input
(B3/B4 terminal)
IP telephone
(KX-UT Series)
External
switch
HUB
IP
Network
