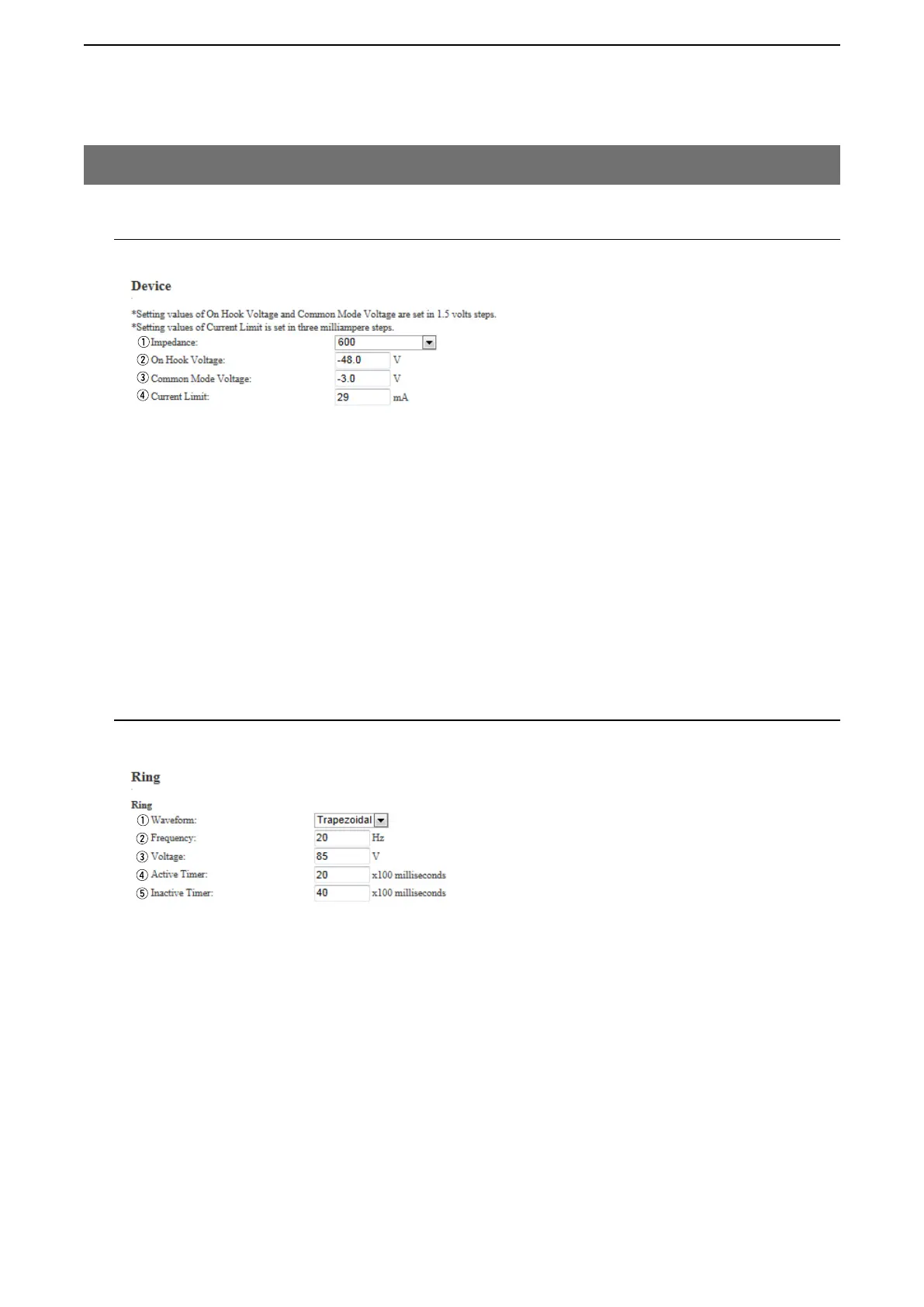

CONVERTER MODE SETTING SCREEN
6-123
9. [Port Settings] Menu (continued)
M Device
Configure the details for the telephone.
q Impedance ……………… Select the appropriate impedance for the telephone. (Default: 600)
Setting example:
In USA : “600”
In accordance with ETSI :”270+750||150nF”
w On Hook Voltage ………… Enter the appropriate voltage for the telephone. (Default: –48.0)
e Common Mode Voltage … Enter the appropriate voltage for the telephone. (Default: –3.0)
r Current Limit ……………… Enter the limited current value. (Default: 29)
[Port Settings]–[PHONE]
M Ring
Configure the details for the telephone.
q Waveform ………………… Select the appropriate waveform for the ring. (Default: Trapezoidal)
w Frequency ………………… Enter the appropriate frequency for the telephone. (Default: 20)
e Voltage …………………… Enter the appropriate voltage for the telephone. (Default: 85)
r Active Timer ……………… Enter the appropriate time to detect the line connection. (Default: 20)
t Inactive Timer …………… Enter the appropriate time to detect the line disconnection. (Default: 40)
