BRIDGE MODE APPLICATION
2-10
3. Using the Mixing function (continued)
3. Operation
• All radios in the area must have same setting.
• Radio A1 and B1 can normally communicate as if they are directly communicating in the simplex mode.
• The conversations from different Areas can be heard.
• While other radios are transmitting, you cannot transmit.
Area A Area B

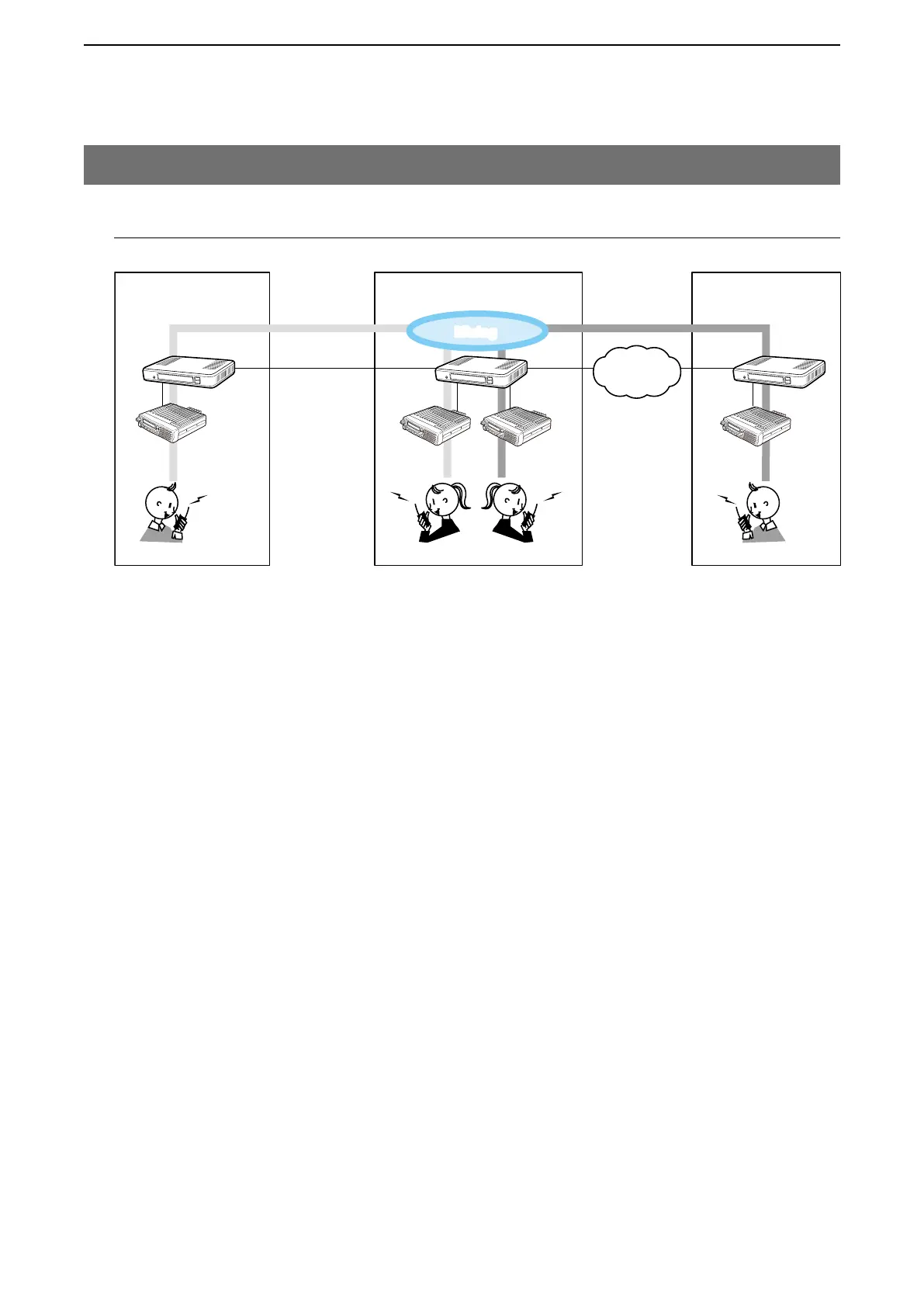

An example of communication with the Mixing function
Radio A1 Radio C1
Radio B1
VE-PG3
(192.168.0.2)
[TRX1]
[LAN] [LAN]
Area C
VE-PG3
(192.168.0.4)
[TRX2]
Radio D1
Radio A
Radio C
Unicast Unicast
IP
Network
Radio B
[TRX1]
Radio D
[TRX2]
VE-PG3
(192.168.0.3)
Mixing
Mixing
