9. [Port Settings] Menu
M Transceiver Model
Select the radio to be connected to [TRX1]/[TRX2].
• The following explanation is an example of selecting “General Setting.”
Transceiver Model ………… Select the radio to be connected to the [TRX1]/[TRX2] port.
(Default: IC-F5060/F6060)
• If your radio needs detailed setting, select “General Setting.”
[Port Settings]–[Transceiver 1 (TRX1)/[Transceiver 2 (TRX2)]
M Transceiver Connection
"General Setting"

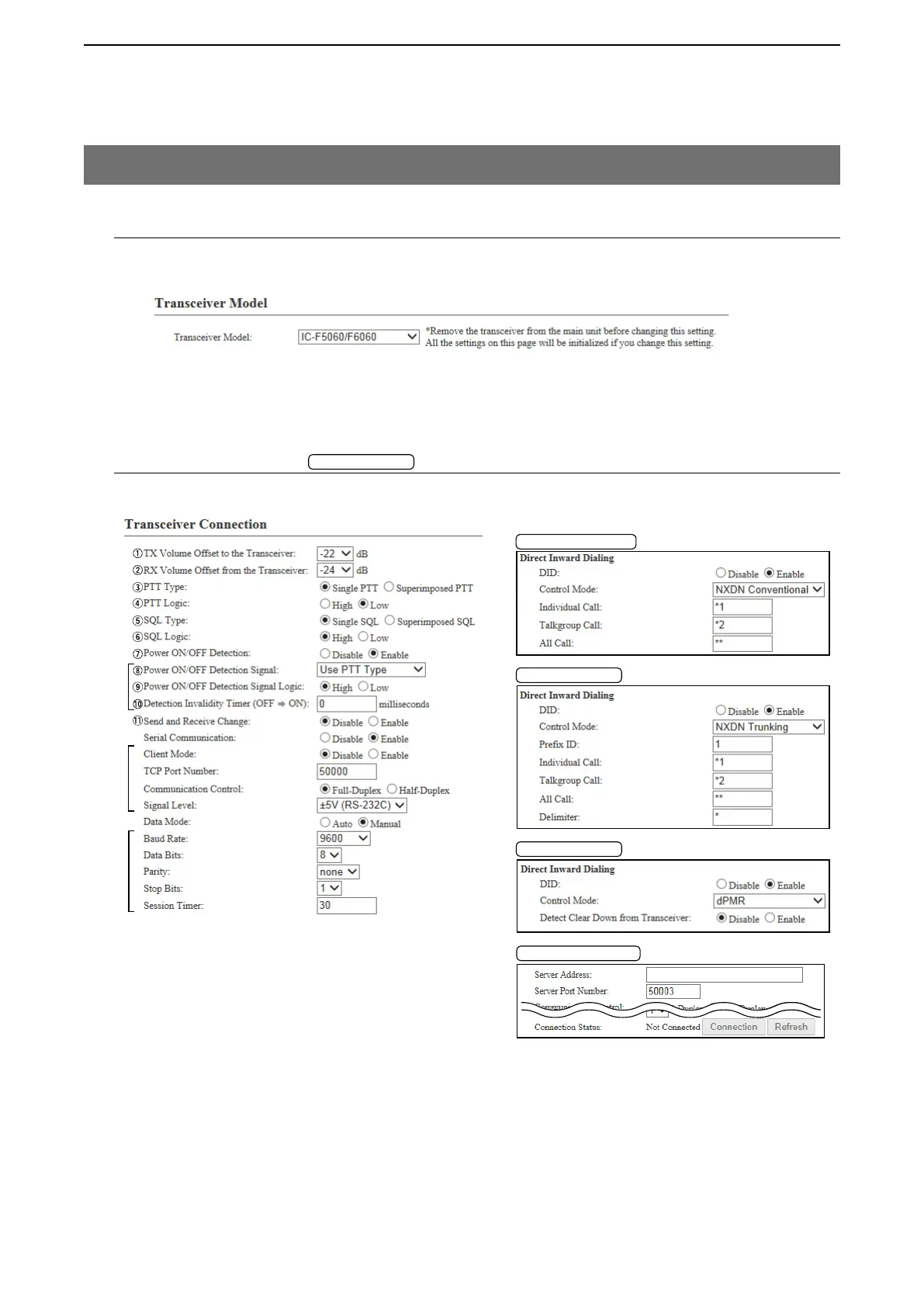

The setting screen when "General Setting" is selected in [Transceiver Model].
q TX Volume Offset to Transceiver
…………………………… Adjust the VE-PG3’s transmitting audio level that is sent to the connected
transceiver between “15” and “–30” (dB). (Default: –22)
w RX Volume Offset from Transceiver
……………………………
Adjust the VE-PG3’s audio level from the transceiver between “+26” to “–26” (dB).
(Default: –24)
*
1
Appears only when “Enable” is selected in [Power Detection].
*
2
Appears only when “Enable” is selected in [Serial Communication].
*
3
Appears only when “Manual” is selected in [Data Mode].
*
1
*
2
*
3
